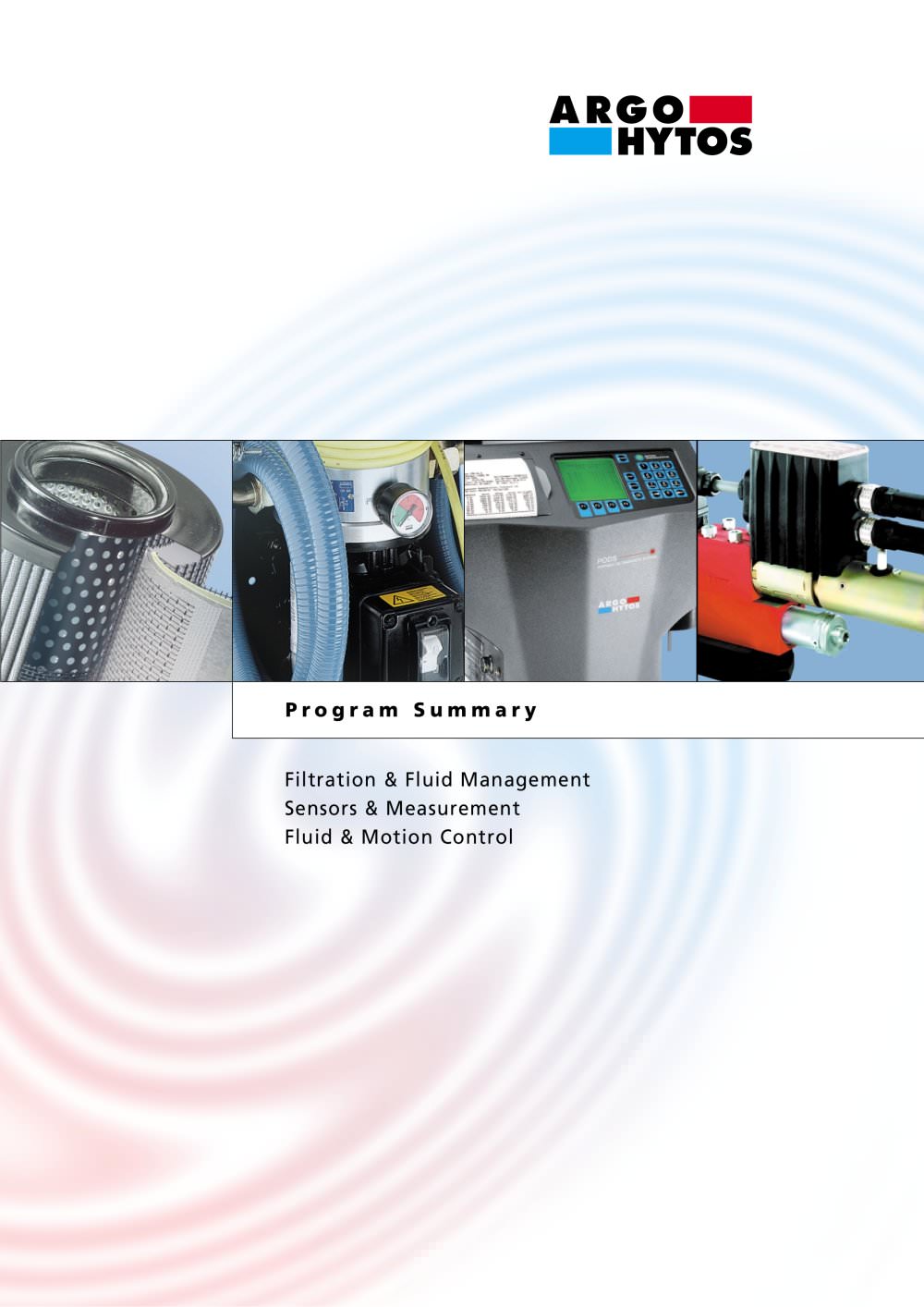

Program Summary Filtration & Fluid ManagementSensors & Measurement Fluid & Motion Control >

We produce fluid power solutions2 >

Filtration 4Suction Strainers5Suction Filters5 Return-Suction Filters5Return Filters5Pressure Filters6High Pressure Filters6High Pressure Safety Filters6Filling and Ventilating Filters6Manometers / Pressure Switches7Differential Pressure Indicators / Differential Pressure Switches7Oil Level Gauges with Thermometer / Dipsticks7Customized Filter Solutions7 Fluid Management 8Off-line Filters9Off-line Filter Units9 Oil Service Units9Dewatering Units /Water Absorbing Filter Elements9 Sensors & Measurements 10Portable Oil Diagnostic System11Stationary Particle Monitor11Software11 Fluid & Motion...

ARGO-HYTOS manufactures sophisticated filter solutions,mainly applied in hydraulic and lubrication systems as well asin transmissions. The range of solutions that have been im- plemented extend from stationary industrial plants to mobile applications.Next to customized developments, that are precisely tailoredto customer individual requirements, ARGO-HYTOS offers a comprehensive range of innovative standard solutions for a wide variety of sectors: suction filtersՕreturn and return-suction filters pressure and high-pressure filters Օfilling and ventilating filters filter accessories >

Nominal flow rate [l/min]up to 350Fineness [m (c)]100 ConnectionG > 1 / > 2 ...G2 > 1 / > 2 Screen elements with female thread to be installed in the suction line of the pump. > Nominal flow rate [l/min]up to 130 Fineness [յm (c)]30, 60 ConnectionG > 3 / > 4 ...G1 > 1 / > 4 SAE 1 > 1 / > 2 ...SAE 2Tank top mounting, optionally with foot valve forhorizontal mounting. > Nominal flow rate [l/min]up to 600Pressure [bar]up to 10 Fineness [m (c)]12, 16 ConnectionG > 3 / > 4 ...G1 > 1 / > 2 , SAE 1 > 1 / > 2 , SAE 2Tank top mounting, with boost pump connection (0.5 bar charge pressure) for...

Nominal flow rate [l/min]up to 370Pressure [bar]up to 100 Fineness [m (c)]5...30 ConnectionG > 1 / > 2 ... G1 > 1 / > 2 , SAE 2 > 1 / > 2 Tank top mounting, clogging indicator electrical and/or optical on request. > Nominal flow rate [l/min]up to 1000 Pressure [bar]up to 600 Fineness [յm (c)]5...30 Connection2 x 15, 2 x ؘ 31 (Flange Connection) G > 1 / > 2 ...G1 > 1 / > 2 SAE 1 > 1 / > 4 ...SAE 2In-line mounting / Flange connection, optionally reverse flowfunction, clogging indicator electrical and/or optical on request. > Nominal flow rate [l/min]up to 100 Pressure [bar]up to 315 Fineness...

Electrical Switching pressure [bar]-0.15, -0.251.2...2.5Monitors the clogging condition of Suction, Return and Return-Suction Filters. > Optical Response pressure [bar]2...5 > electrical/optical Switching Pressure [bar]1.2...5Monitors the clogging condition of Pressure and High Pressure Filters. Option: temperature suppression, with 2 switching points. > Level range [mm]33...194 Temperature scale [C]-10...+80Indicates the oil level and the oil temperature inhydraulic oil or lubricant reservoirs. > Level range [mm]25...540 Bolt threadup to G > 1 / > 2 up to M16 x 1.5Checks the oil level in...

As well as reducing maintenance and servicing costs, efficientfluid management is also a key factor in boosting the reliabili-ty, productivity and cost-effectiveness of the operation. ARGO-HYTOS supplies application-oriented products for manual and automatic cleaning of hydraulic fluids: off-line filtersՕoff-line filter units oil service units Օdewatering units >

Fluid Management9 Off-line Filters > Nominal flow rate [l/min]up to 60 (with flow control valve: up to 12 l/min)Operating pressure [bar]up to 12 (with flow control valve: up to 350 bar)Fineness [m (c)]3, 5, 12 Connectionup to G1Off-line filters for application in low pressure circuits or with flowcontrol valve for connection to the high pressure line. Off-line Filter Units > Nominal flow rate [l/min]up to 45 Operating pressure [bar]up to 6 Fineness [յm (c)]3, 5 Electro Motor Types1~110 V (50...60 Hz)1~230 V (50...60 Hz) 3~400 V / 460 V (50...60 Hz) 24 V DCConnectionup to G1Filter Units for...

Systems that provide reliable assessment of the condition ofhydraulic fluids are the key feature of continuous fluid monitoring. Sensors and measurement technology from ARGO-HYTOS precisely target this range of tasks. Our fluid monitoring products comprise equipment and system solu-tions to enable online monitoring during continuous opera-tion as well as analysis of bottled samples under laboratory conditions. portable oil diagnostic systemՕstationary particle monitor software to evaluate data and analyze trends >

Sensors & Measurement11 Portable Oil Diagnostic Systems > Sensitivity [m (c)]4ISO-MTD-sizes [յm (c)]4; 4.6; 6; 9.8; 14; 21.2; 38; 68 ClassificationISO 4406NAS 1638 MIL-STD-1246C NAVAIR 01-1A-17Pressure [bar]0.5...420 Temperature [C]Pressure fluids: 0...+90Ambient: +5...+50Operating modesBottle sample analysis, online-analysis Data transmissionRS 232 Stationary Particle Monitor > Sensitivity [еm (c)]4 ISO-MTD-sizes [m (c)]4; 6; 14; 21 ClassificationISO 4406 Pressure [bar]0.5...500 Temperature [հC]Pressure fluids: -20...+60Ambient: -20...+60Data transmission RS 232, RS 485, analogue, 0.5 V,...

ARGO-HYTOS expertise in control technology is gained frommore than 50 yearsҒ experience. We focus here on a widerange of valves, power units and integrated manifolds fea- turing all commonly used design features and functions, together with proportional valves and the associated controlelectronics: direct operated directional valves in CETOP 02 toCETOP 05 and pilot operated valves in CETOP 07 and CETOP 08Օvalves subplate and sandwich type flow control,pressure and check valves in CETOP 02 to CETOP 05֕cartridge valves direct operated proportional valves with compen-sator sandwich valve, in...

Fluid & Motion Control13 Directional Control Valves, solenoid operated > SizeNG04 to NG25 Pressure [bar]up to 350 Flow [l/min]up to 600 Directional Control Valves, other operations > Size NG04 to NG10 Pressure [bar]up to 320 Flow [l/min]up to 140 Directional Control Valves > Size NG03 Pressure [bar]up to 250 Flow [l/min]up to 20 Screw-in Cartridge Valves > Size NG04 to NG06 Pressure [bar]up to 350 Flow [l/min]up to 60 size="-1">
