Specifications:

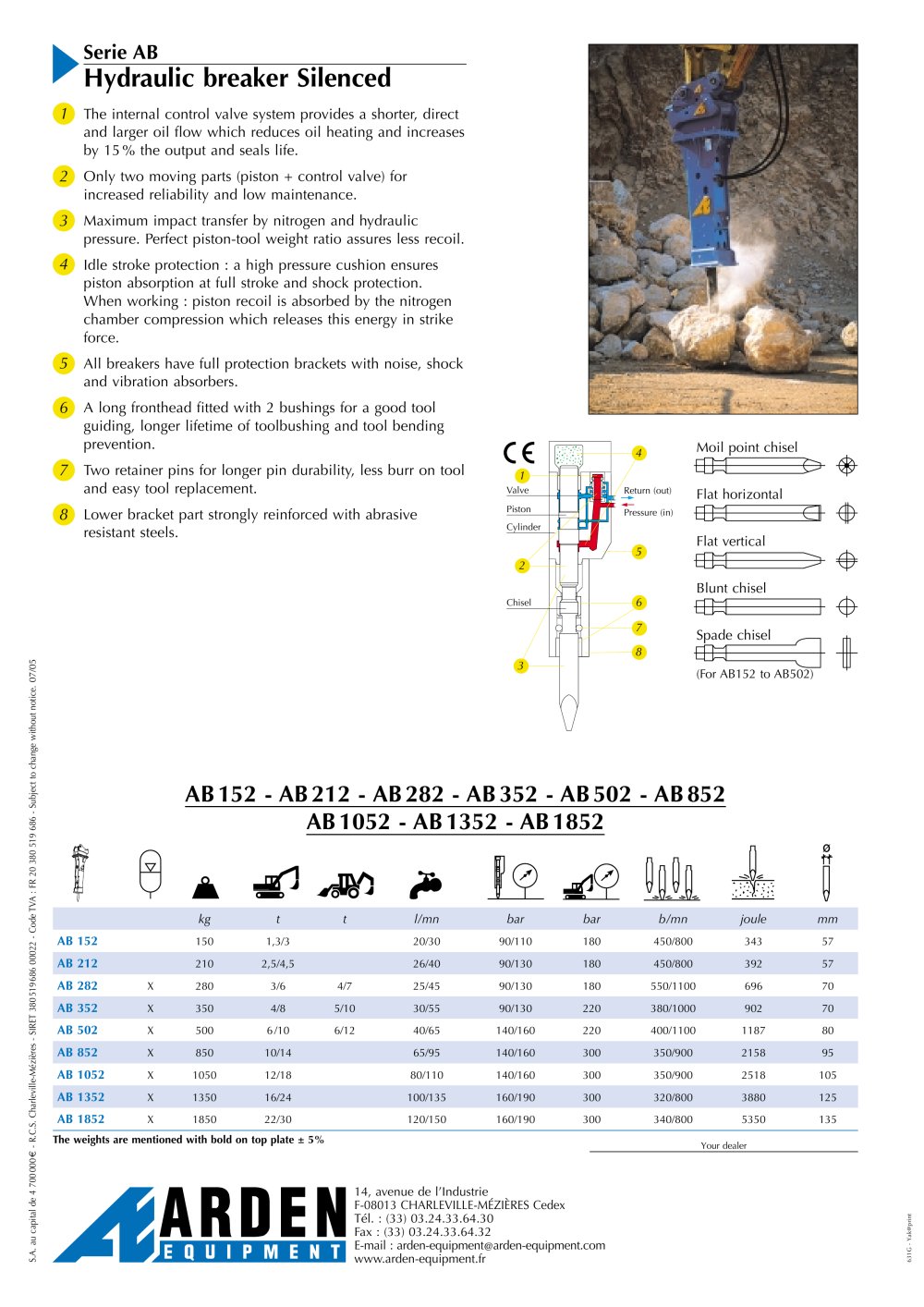

The document provides specifications for a series of hydraulic breakers (AB152 to AB1852). Key parameters include weight (kg), oil flow (l/min), operating pressure (bar), impact energy (joule), and tool diameter (mm). Each model has specific ranges for these parameters, indicating their capacity and suitability for different tasks.
Design and Features:
The hydraulic breakers feature an internal control valve system that enhances oil flow, reducing heating and increasing output and seal life by 15%. The design includes only two moving parts (piston and control valve) for reliability and low maintenance. The breakers utilize nitrogen and hydraulic pressure for maximum impact transfer, with a perfect piston-tool weight ratio to minimize recoil.
Protection and Durability:
The breakers are equipped with full protection brackets that absorb noise, shock, and vibration. They have a long front head with two bushings for better tool guidance and longer tool life. Two retainer pins enhance pin durability and facilitate easy tool replacement. The lower bracket part is reinforced with abrasive-resistant steels.
Tool Options:
Various chisel types are available, including moil point, flat horizontal, flat vertical, blunt, and spade chisels, suitable for models AB152 to AB502.
Contact Information:
The document provides contact details for Arden Equipment, including address, phone, fax, email, and website.
Additional Notes:
The document mentions that specifications are subject to change without notice and provides legal and corporate information about the company.
