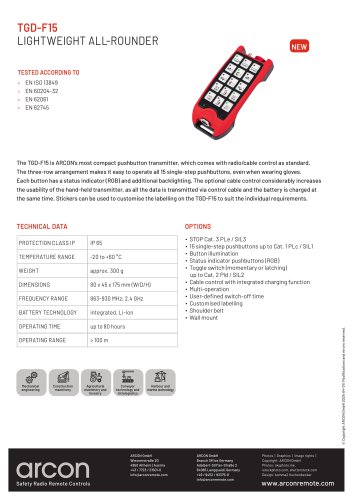

product data sheet TGD-F15

Product catalog summary

Overview: The TGD-F15 is ARCON's most compact pushbutton transmitter, designed for versatility with both radio and cable control. It features a three-row arrangement of 15 single-step pushbuttons, each equipped with an RGB status indicator and backlighting, making it user-friendly even with gloves.

Key Features:

Radio/cable control standard with integrated charging function.
Customizable button labeling with stickers.
Protection class IP65, suitable for harsh environments.
Temperature range from -20 to +60 °C.
Lightweight at approximately 300 g with dimensions of 80 x 45 x 175 mm.
Frequency range of 863-930 MHz and 2.4 GHz.
Battery technology: Integrated Li-Ion with up to 80 hours of operating time and a range of over 100 meters.

Technical Specifications:

STOP Cat. 3 PLe / SIL3.
15 single-step pushbuttons up to Cat. 1 PLc / SIL1.
Toggle switch options (momentary or latching) up to Cat. 2 Pld / SIL2.
Multi-operation and user-defined switch-off time.
Additional options include a shoulder belt and wall mount.

Compliance and Testing: The TGD-F15 is tested according to EN ISO 13849, EN 60204-32, EN 62061, and EN 62745 standards, ensuring high safety and reliability.

Contact Information: ARCON GmbH, Wiesnerstraße 20, 4950 Altheim, Austria. Phone: +43 / 7723 / 21501-0. Email: [email protected]. Branch Office Germany: Adalbert-Stifter-Straße 2, 84085 Langquaid, Germany. Phone: +49 / 9452 / 93375-0.

Catalog excerpts

The TGD-F15 is ARCON's most compact pushbutton transmitter, which comes with radio/cable control as standard. The three-row arrangement makes it easy to operate all 15 single-step pushbuttons, even when wearing gloves. Each button has a status indicator (RGB) and additional backlighting. The optional cable control considerably increases the usability of the hand-held transmitter, as all the data is transmitted via control cable and the battery is charged at the same time. Stickers can be used to customise the labelling on the TGD-F15 to suit the individual requirements. TECHNICAL DATA OPTIONS PROTECTION CLASS IP • Button illumination • Status indicator pushbuttons (RGB) • Toggle switch (momentary or latching) up to Cat. 2 Pld / SIL2 • Cable control with integrated charging function • User-defined switch-off time • Customised labelling • Shoulder belt • Wall mount © Copyright ARCON GmbH 2025-04-01 I Modifications and errors reserved. ARCON GmbH WiesnerstraGe 20 4950 Altheim I Austria +43 / 7723 / 21501-0 [email protected] ARCON GmbH Branch Office Germany Adalbert-Stifter-StraGe 2 84085 Langquaid I Germany +49 / 9452 / 93375-0 [email protected] arcon Safety Radio Remote Controls Photos | Graphics | Image rights | Copyright: ARCON GmbH Photos: skyphoto.me, istockphoto.com, shutterstock.com Design: komma2 Kuchenbecker
