Vandal Resistant Switches

Product catalog summary

Overview: This document provides technical specifications and details for vandal-resistant switches, specifically models 1900, 8300, and 0911, designed to meet IP66 standards. These switches are constructed with stainless steel for enhanced durability and are suitable for environments requiring robust security measures.

Specifications:

Material: Stainless steel button and bezel for all models.
Sealing: Front panel sealed to IP66, ensuring protection against dust and water ingress.
Switching Mechanism: Snap action, not sealed, with a micro contact gap.
Compliance: RoHS compliant, UL file no. E45221.

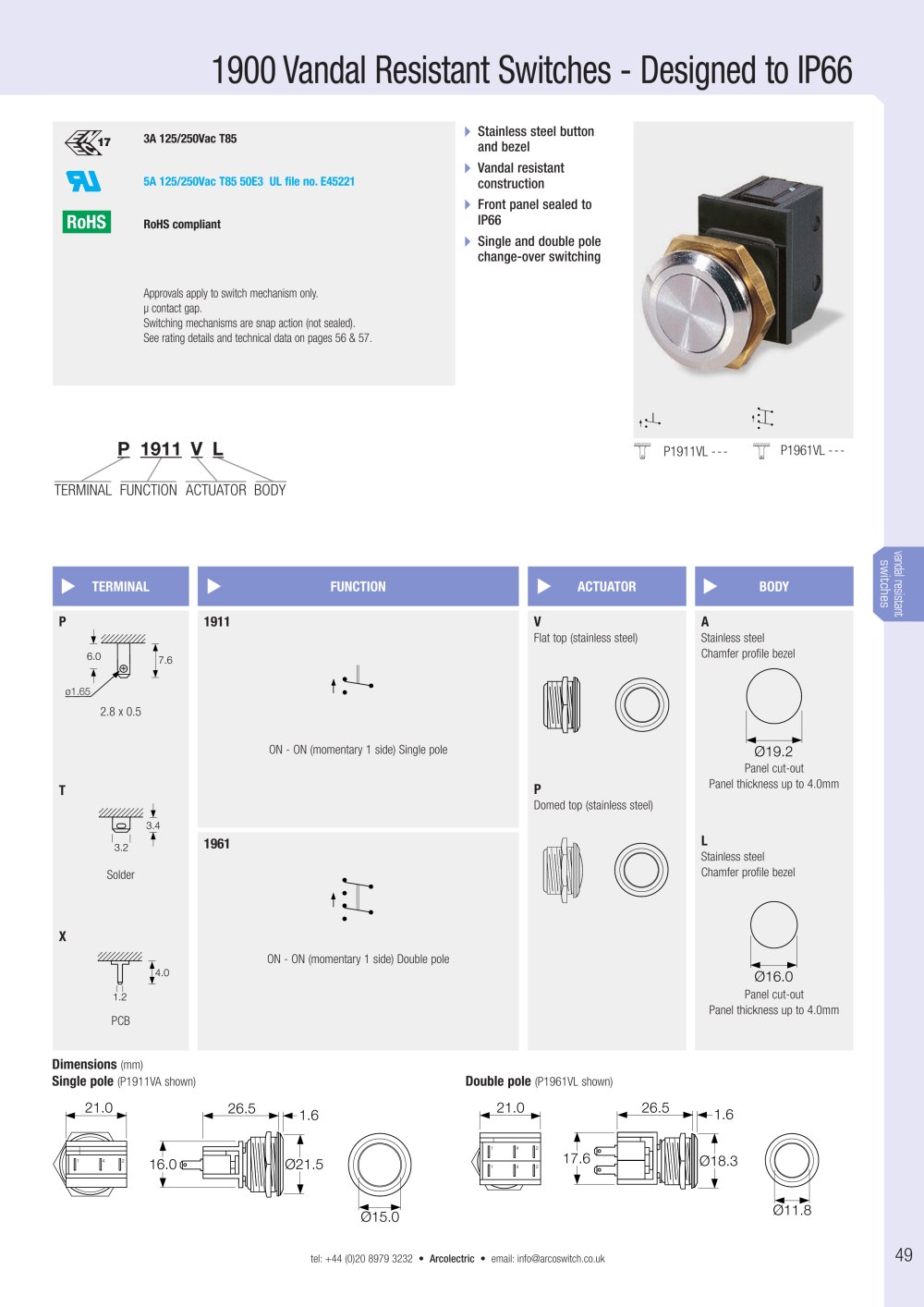

Model 1900:

Types: Single pole (P1911VA) and double pole (P1961VL).
Actuator Options: Flat top and domed top.
Electrical Ratings: 3A 125/250Vac T85, 5A 125/250Vac T85.
Panel Thickness: Up to 4.0mm.

Model 8300:

Types: Single pole (8300, 8301) and double pole (8350, 8351).
Actuator Options: Raised, flat, or domed.
Electrical Ratings: Up to 16A, 250Vac.
Panel Thickness: 0.75 - 8.0mm.

Model 0911:

Type: ON-ON (momentary 1 side).
Electrical Ratings: 16A 125/250Vac, 3/4hp T85.
Panel Thickness: Up to 8.0mm.

Key Features:

Vandal-resistant construction suitable for high-security applications.
Available in various actuator styles and terminal functions.
Designed for both single and double pole configurations.

Contact Information: For further inquiries, contact Arcolectric at +44 (0)20 8979 3232 or email [email protected].
