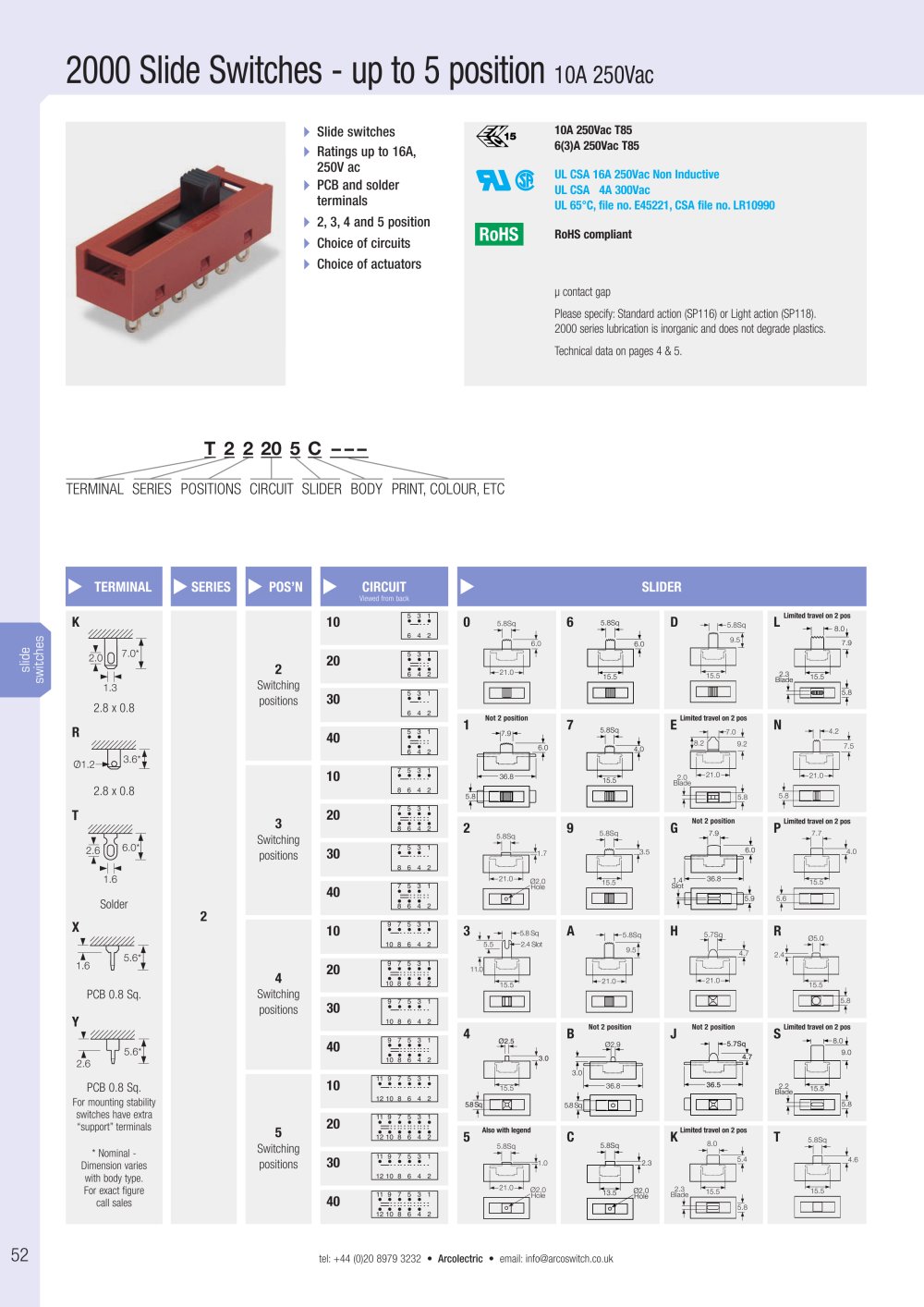

Overview: The document provides technical specifications and options for the 2000 series slide switches, which are used in various electrical applications. These switches are available in multiple configurations, including different switching positions and body types.

Specifications: The slide switches are rated up to 16A, 250V AC, and are available with PCB and solder terminals. They come in 2, 3, 4, and 5 position options, with a choice of circuits and actuators. The switches are RoHS compliant and have a µ contact gap.

Body and Dimensions: The document details various body types (A, B, C, H) and their dimensions, which are crucial for fitting into specific panel cut-outs. The dimensions vary slightly depending on the body type and the number of positions.

Mounting and Stability: The switches are designed for snap fit and panel mount applications, with additional support terminals for mounting stability. The document provides specific dimensions for panel cut-outs to ensure proper installation.

Options and Customization: A range of custom slider colors is available for large orders, and the standard body color is black. Legend printing options are also available, allowing for customization based on specific requirements.

Technical Data: Additional technical data is referenced on pages 4 and 5, which likely include detailed electrical characteristics and performance metrics.

Compliance and Standards: The switches comply with UL and CSA standards, with specific file numbers provided for reference. The lubrication used in the 2000 series is inorganic, ensuring it does not degrade plastics.
