Arcolectric
Shortform Catalogue

Shortform Catalogue

Product catalog summary

Overview: This document is a shortform catalogue from Arcolectric, a trading name of Elektron Components Ltd, detailing a range of switches and related components for appliance and electronic applications. The catalogue covers various types of switches, indicators, IEC sockets, and fuseholders, highlighting their specifications and features.

Rocker Switches: The catalogue lists several types of rocker switches, including ultra-thin, miniature, and standard versions. These switches have ratings up to 20A, 277Vac, and offer options for single and double poles, illuminated and non-illuminated versions, and various panel cut-out sizes. They are designed for high in-rush tolerance and come with matching indicators.

Lever and Push Switches: Lever switches are available in metal and nylon, with ratings up to 20A, 277Vac, and options for single and double poles. Push switches include miniature and standard versions, with ratings up to 16A, 250Vac, and options for latching and momentary actions.

Vandal Resistant and Snap Action Switches: Vandal resistant switches feature stainless steel construction, IP66 sealing, and ratings up to 16A, 250Vac. Snap action switches are available in industry-standard V3 and V4 versions, with ratings up to 16A, 250Vac, and various terminal and actuator options.

Rotary and Slide Switches: Rotary switches offer 2 to 6-way options with ratings up to 16A, 250Vac. Slide switches are available with PCB and solder terminals, offering 2 to 5 positions and various circuit options.

Door Switches: These switches are rated up to 5A, 250Vac, with options for momentary action and splash resistance. They are designed for high-temperature environments and offer various terminal orientations.

Indicators and IEC Connectors: The catalogue includes a range of indicators with various bezel sizes and termination options, available in neon, LED, and filament lamp versions. IEC connectors are rated up to 10A, 250Vac, with fused options and various fixing methods.

Fuseholders: Fuseholders are available for 5 x 20mm and 6.3 x 32mm fuses, with options for tool release and various terminal types. They offer PC2 protection and are available in snap to panel and nut fixing versions.

Contact Information: The document provides contact details for Arcolectric's offices in Europe, the Americas, and China, including phone numbers, fax numbers, and email addresses.

Catalog excerpts

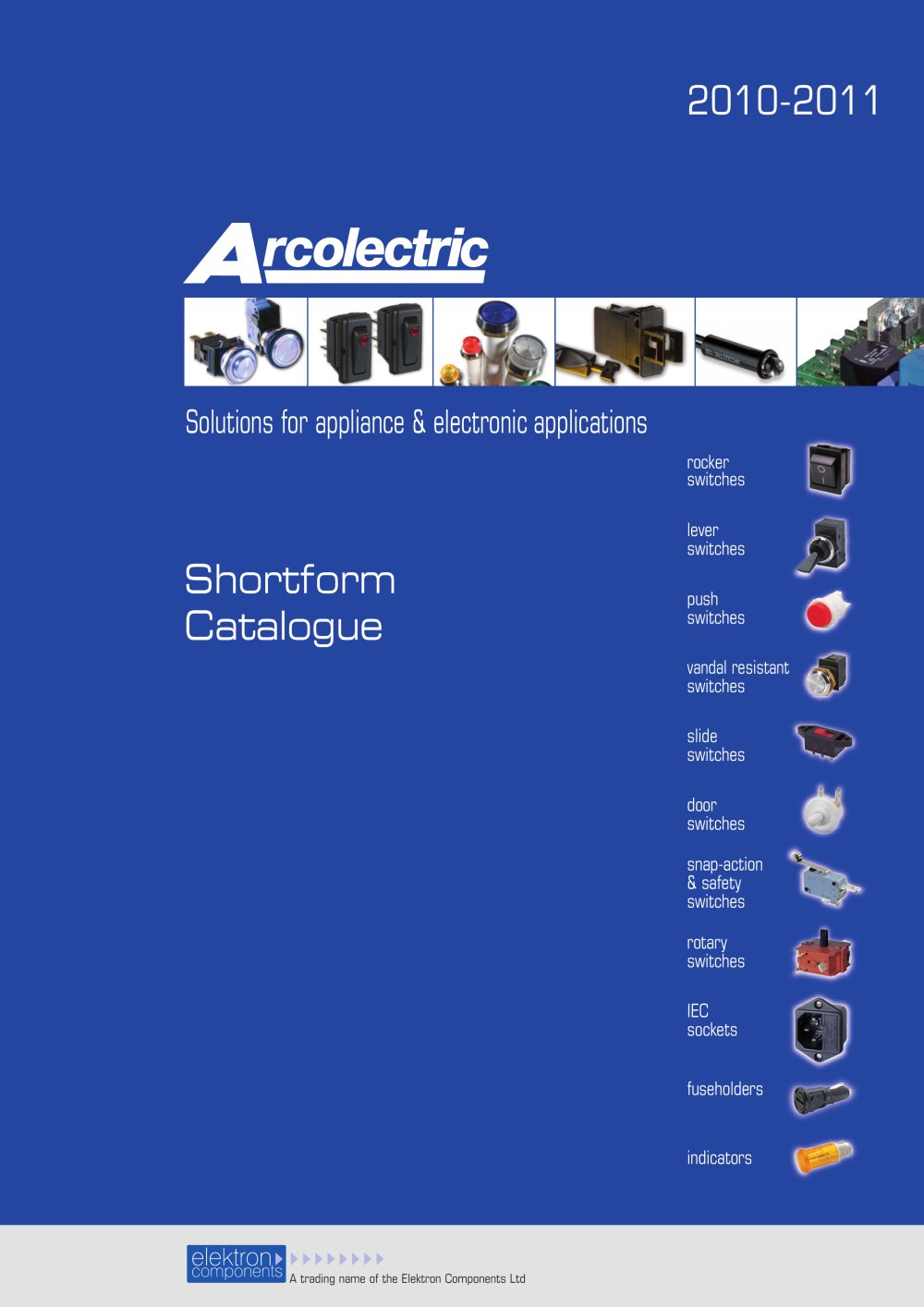

rocker switches slide switches rotary switches push switches vandal resistant switches snap-action & safety switches door switches lever switches indicators IEC sockets fuseholders Solutions for appliance & electronic applications 2010-2011 A trading name of the Elektron Components Ltd Shortform Catalogue

Open the catalog to page 1

Arcolectric 2 • Tel: +44 (0)20 8979 3232 • Web: www.arcolectric.co.uk • Email: [email protected] 8800 8500 8600 8620 & 8670 R13 6000 5500 6050 1550 1500 Twin Rocker Switches 1500 1250 Ultra thin rocker switch Ratings up to 15A, 250Vac Single and twin gang Panel cut out: single: 19.3 x 6.8mm twin: 19.3 x 13.4mm Miniature rocker switch Ratings up to 15A, 250Vac High in-rush tolerance Single & double pole in same body size Illuminated & non-illuminated Matching indicators Industry standard panel cut-out Rotary and push button accessories Panel cut out: 19.3 x 12.9mm Miniature rocker switch Ratings...

Open the catalog to page 2

Arcolectric • Tel: +44 (0)20 8979 3232 • Web: www.arcolectric.co.uk • Email: [email protected] 3 Metal lever switches Ratings up to 20A, 277V ac Single and double pole Choice of circuits including 3 position and momentary 6.3mm terminals Guard option Mounting hole: 12.7mm dia. Metal lever switches Ratings up to 20A, 277V ac Guard option to prevent accidental operation 3900 3900 with Guard Lever switch Brass and nylon actuators Single pole Latching and momentary action Choice of actuator profiles Mounting hole: 12.7mm dia. 250Vac, 13A, 10,000 operations Double & single pole momentary operation...

Open the catalog to page 3

Arcolectric 4 • Tel: +44 (0)20 8979 3232 • Web: www.arcolectric.co.uk • Email: [email protected] Stainless steel button and bezel Vandal resistant construction Front panel sealed to IP66 Single and dual change-over switching Momentary and latching action Ratings up to 16A, 250V ac Up to 12A Inductive current rating Single and double pole Stainless steel button & bezel Vandal resistant construction 19 and 22mm mounting holes Front panel sealed to IP66 Raised, flat or domed actuators 1900 8300 Snap action switches Ratings up to 16A, 250V ac Single pole changeover Stainless steel button and...

Open the catalog to page 4

Arcolectric • Tel: +44 (0)20 8979 3232 • Web: www.arcolectric.co.uk • Email: [email protected] 5 Snap action switches Ratings up to 16A, 250Vac Industry standard V3 Changeover, NO or NC function Choice of terminals and actuators Further options include lever types and terminal styles Snap action switches Ratings up to 5A, 250Vac Industry standard V4 Changeover, NO or NC function Choice of terminals and actuators Further options include levers and terminals V3 V4 Safety cut-out switches Rating 15A, 125/250V ac Snap action switches NC contacts Lever tilt operation 0320AA Snap Action Switches...

Open the catalog to page 5

Arcolectric 6 • Tel: +44 (0)20 8979 3232 • Web: www.arcolectric.co.uk • Email: [email protected] 7.6 dia bezel 6.3 dia panel hole Flying lead termination Neon or filament lamp 9.0 dia bezel 8.0 dia panel hole Flying lead termination Neon, LED-dc, LED-110/230Vac or filament lamp 1041 2950 10.0 dia bezel 9.0 dia panel hole Flying lead termination Neon, LED-dc, LED-110/230Vac or filament lamp 12.0 dia bezel 9.5 dia panel hole Flying lead, 2.8, 4.8 or 6.3 termination Neon, LED-dc, LED-110/230Vac or filament lamp 0569 0276 15.6 dia bezel 10.0 dia panel hole Flying lead, 2.8, 4.8 or 6.3 termination...

Open the catalog to page 6

Arcolectric • Tel: +44 (0)20 8979 3232 • Web: www.arcolectric.co.uk • Email: [email protected] 7 21 x 15 bezel 19.3 x 12.9 (typ) panel hole 4.8 terminals Neon Matches 8500 series rocker switches 8580 14.0 x 30.2 bezel (‘A’ body) 12.2 x 27.2 panel hole (‘A’ body) Choice of bezel styles Choice of panel cut-outs 2.8, 4.8, 6.3, solder or PCB termination Neon or filament lamp Matches 1500 series rocker switches 0430 Red, amber, green, blue and clear - Indicators 3mm and 5mm LEDs Black or Chrome finish Available with or without LEDs 1050 IP52 and IP54 sealing Three bezel sizes: 18.0, 20.5 and 30.0...

Open the catalog to page 7

A trading name of Elektron Components Ltd Europe Elektron Components Ltd, 29 Central Avenue, West Molesey, Surrey, England KT8 2RF Europe Sales Tel +44 (0)20 8979 3232 Fax +44 (0)20 8979 2565 UK sales Tel +44 (0)1708 343800 Fax +44 (0)1708 376544 e-mail [email protected] Web www.arcolectric.co.uk The Americas Elektron Components Corporation. 31-315 Plantation Drive, Thousand Palms, California 92276, USA. Tel +1 760 343 3650 Fax +1 760 343 3445 e-mail [email protected] Web www.arcolectric.com China and Asia Elektron Components (ShenZhen) Ltd A2, 1-3 floors, No.23, Xin Buxin Road, Tongle...

Open the catalog to page 8
