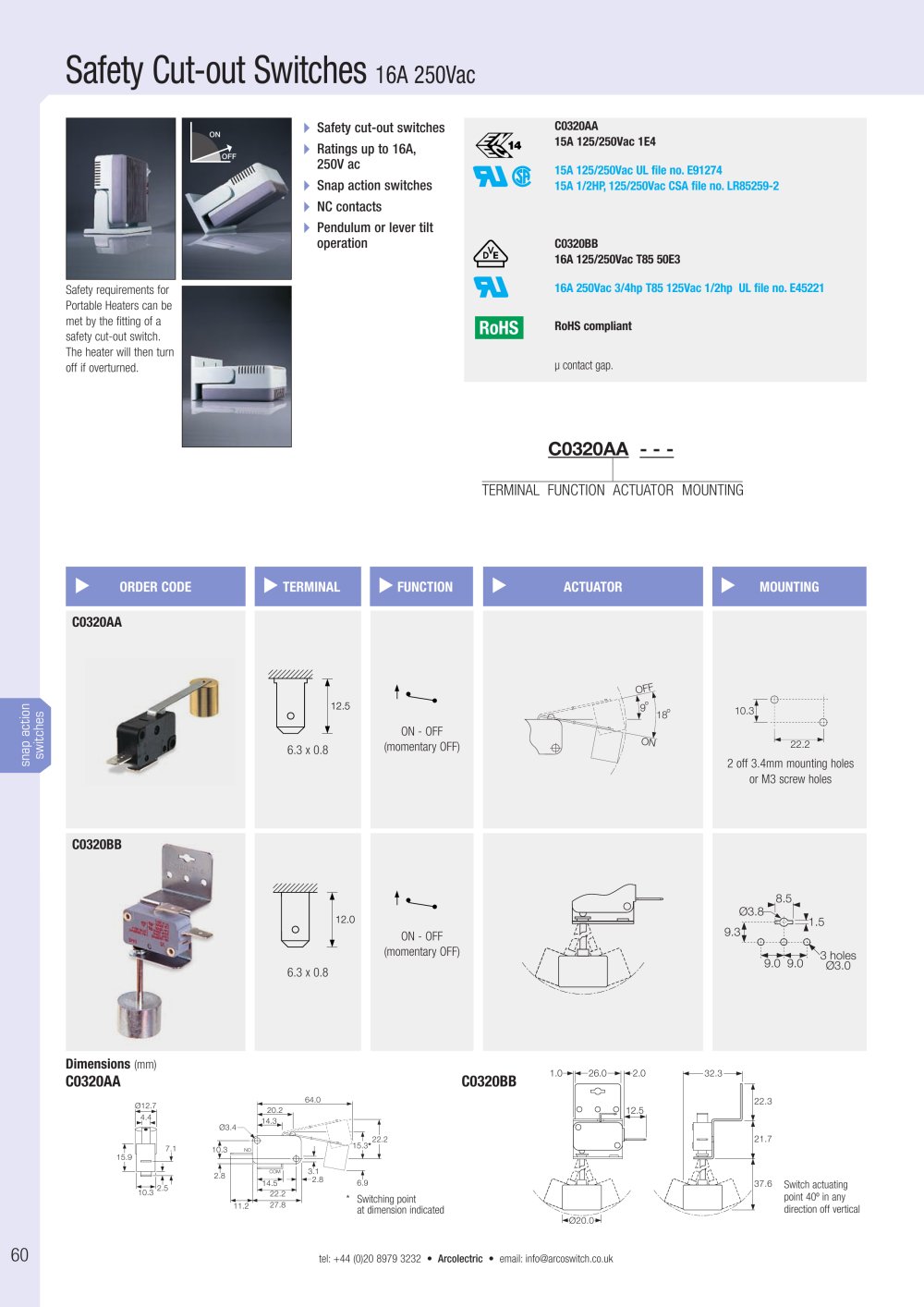

Safety Switches

Product catalog summary

Overview: This document provides technical specifications and details for safety cut-out switches, specifically designed for portable heaters. These switches ensure safety by turning off the heater if it is overturned.

Specifications:

Switch Type: Snap action switches with NC (Normally Closed) contacts.
Ratings: Up to 16A, 250V AC.
Actuation: Pendulum or lever tilt operation, with a switch actuating point at 40º in any direction off vertical.
RoHS Compliant: Ensures adherence to environmental standards.

Product Variants:

C0320AA: Rated at 15A 125/250Vac, UL file no. E91274, CSA file no. LR85259-2.
C0320BB: Rated at 16A 125/250Vac T85 50E3, UL file no. E45221.

Dimensions:

Various dimensions are provided for mounting and installation, including terminal function and actuator mounting details.
Mounting holes: 2 off 3.4mm or M3 screw holes.

Contact Information: For further inquiries, contact Arcolectric at +44 (0)20 8979 3232 or email [email protected].
