Push Button Switches

Product catalog summary

Overview: This document provides technical specifications and details for various push button switches, including their dimensions, functions, and ratings. It covers different models and configurations, highlighting key features and compliance standards.

Specifications:

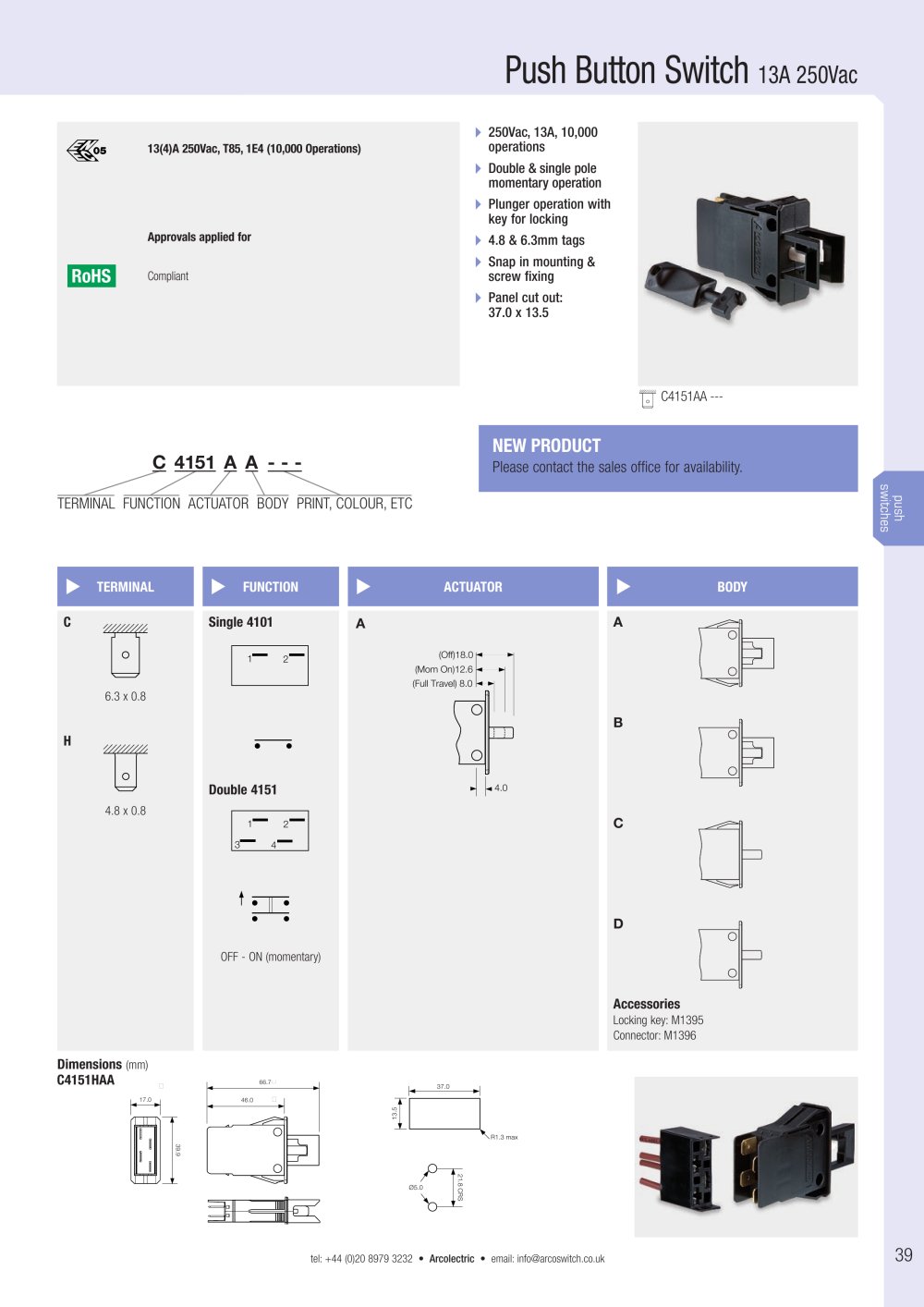

Push Button Switch 13A 250Vac: Dimensions are provided in millimeters. The switch operates at 250Vac with a 13A current rating and is designed for 10,000 operations. It features double and single pole momentary operation, plunger operation with a locking key, and snap-in mounting with screw fixing. The panel cut-out dimensions are 37.0 x 13.5 mm.
8300 Series: These switches have ratings up to 12(12)A, 250V ac, and are available in illuminated and non-illuminated versions. They support single and double pole configurations with latching and momentary functions. The panel cut-out is 19.3 x 12.9 mm.
7000 Series: These switches are rated up to 16A, 250V ac, and include round and rectangular push button options. They offer latching and momentary functions with matching indicators. The panel cut-outs are 25.0 mm diameter or 27.2 x 22.3 mm.
1100 Series: Miniature push button switches with ratings up to 0.5A, 250Vac. They feature snap-in and flange mount options with gold-plated contacts and are available in latching and momentary versions.

Compliance and Approvals: The switches are RoHS compliant, and various models have UL and CSA approvals. Specific file numbers are provided for reference.

Additional Features:

Various actuator styles are available, including standard, slotted, and custom options.
Protective covers designed to IP65 standards are available for certain models.
Custom colors and legend printing options are offered for large orders.

Contact Information: For further details or custom orders, contact Arcolectric at +44 (0)20 8979 3232 or email [email protected].
