Lever Switches

Product catalog summary

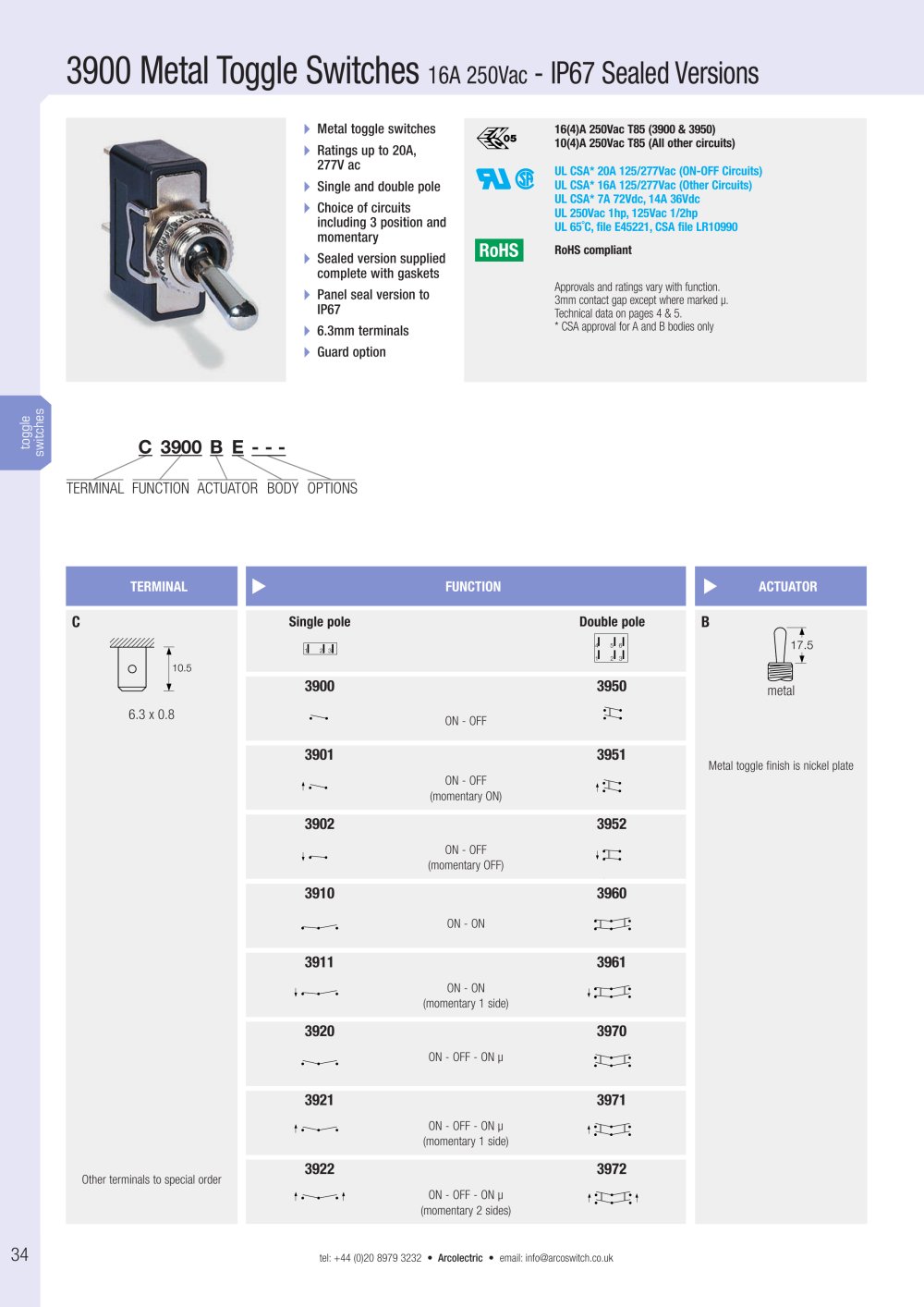

Overview: The document provides detailed specifications and options for Arcolectric toggle switches, including metal and nylon variants. It covers various configurations, ratings, and compliance standards.

Specifications:

Metal toggle switches are available with nickel-plated finishes and ratings up to 20A, 277V AC. They come in single and double pole options with various circuit configurations, including 3-position and momentary actions.
Nylon toggle switches offer ratings up to 20A, 250V AC, with single and double pole options and a wide choice of terminals and circuit configurations.
Sealed versions are available with IP67 panel seal ratings, complete with gaskets and optional guards.

Body and Actuator Options:

Toggle switches are available with different body options, including panel-sealed versions for enhanced protection.
Actuator options include flat and round profiles, with materials ranging from chromed brass to nylon.

Technical Data:

Contact gaps are generally 3mm, except where specified.
Approvals and ratings vary with function, including UL and CSA certifications for specific configurations.
RoHS compliance is noted for all products.

Installation and Dimensions:

Detailed dimensions are provided for various switch types, with specific threading and panel thickness requirements.
Fixing nuts and optional terminal barriers are available for secure installation.
