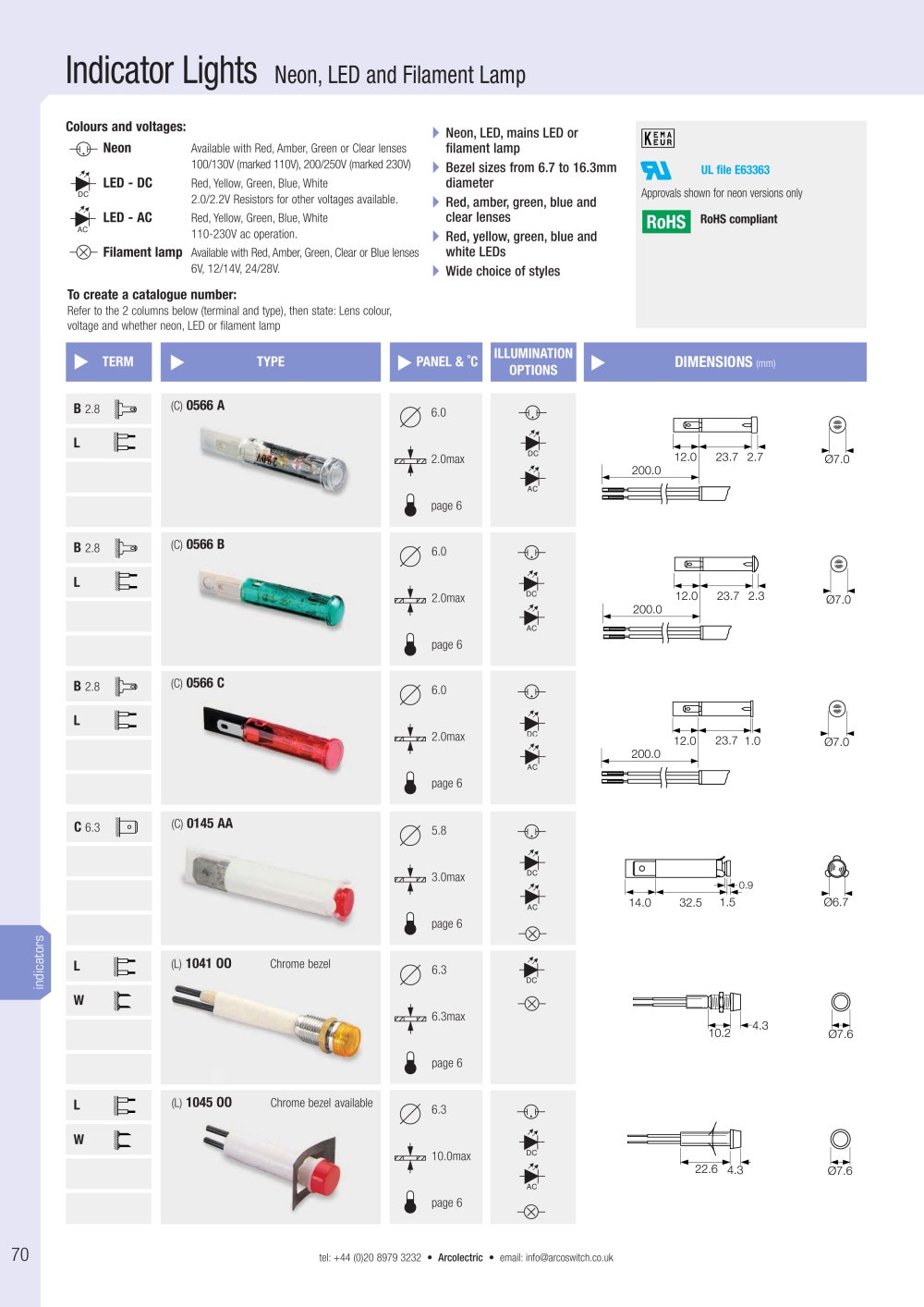

Indicator Lights

Product catalog summary

Overview: The document outlines technical specifications and options for indicator lights, including neon, LED, and filament lamps, as well as LED lamps and lampholders designed to meet IP67 sealing standards. It details available colors, voltages, bezel sizes, and styles for various applications.

Specifications:

Neon Lights: Available in red, amber, green, or clear lenses with voltages of 100/130V (marked 110V) and 200/250V (marked 230V).
LED Lights: Available in DC and AC versions with colors red, yellow, green, blue, and white. DC LEDs operate at 2.0/2.2V, with resistors available for other voltages. AC LEDs operate at 110-230V.
Filament Lamps: Available in red, amber, green, clear, or blue lenses with voltages of 6V, 12/14V, and 24/28V.
LEDs: Available in Red, Yellow, Green, Blue, and White, with operating voltages of 110-230V AC and options for 2.0/2.2V and 12V DC.
Bezel Sizes: Range from 6.7mm to 22.9mm in diameter.
Body Materials: Include chromed brass or black oxide-coated brass.

Design Options:

Bezel sizes range from 6.7 to 16.3mm in diameter.
A wide choice of styles is available, including different lens colors and LED colors.

Compliance and Approvals: The document mentions UL file E63363 and RoHS compliance, with approvals shown for neon versions only.

Features:

IP67 sealing with O-ring gaskets for both LED to bezel and bezel to panel.
RoHS compliant products.
LED lampholders can be supplied with or without LEDs, with options for high intensity and extra super bright LEDs.
Lampholders suitable for up to 50V max, with various bulb types including LES, Midget Flange, MES, and MBC.

Customization:

Catalogue numbers are created by specifying lens color, voltage, and type (neon, LED, or filament lamp).
LED lampholders can be customized by LED color, voltage, and body finish (Black or Chrome).

Additional Features:

Indicator lights are designed to match various switches such as 8500, 8600, R13, 1500, 1550, 5500, 6000, 8300, and 7000.
Options for IP52 and IP54 sealing are available for certain models.

Contact Information: For further details or to place an order, contact Arcolectric via phone at +44 (0)20 8979 3232 or email [email protected].
