Specifications:

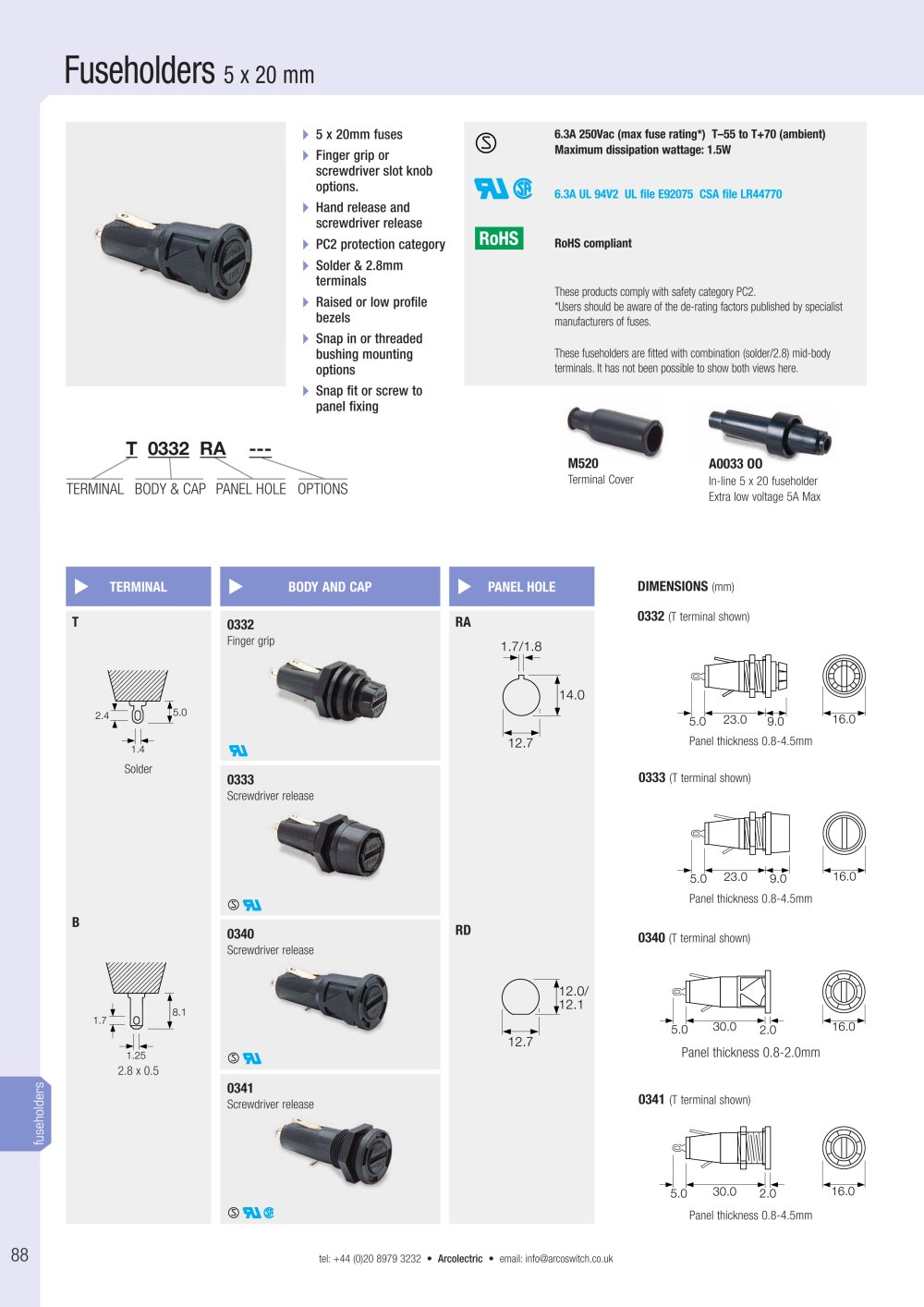

The document provides specifications for two types of fuseholders: 5 x 20 mm and 6.3 x 32 mm (1 1/4” x 1/4”). Both types are RoHS compliant and fall under safety category PC2. The 5 x 20 mm fuseholders have a maximum fuse rating of 6.3A at 250Vac with a maximum dissipation wattage of 1.5W. The 6.3 x 32 mm fuseholders have a maximum fuse rating of 16A at 250Vac with a maximum dissipation wattage of 4W. Both types are suitable for ambient temperatures ranging from T–55 to T+70.

Design and Features:
The fuseholders are designed with various terminal options including solder, right angle, and combination terminals. They offer different mounting options such as snap-in or threaded bushing, and can be fixed to panels with thicknesses ranging from 0.8 mm to 7.0 mm. The document also mentions options for raised or low profile bezels and different release mechanisms like screwdriver or finger grip.

Compliance and Safety:
The fuseholders comply with UL 94V2 standards and are listed under UL file E92075 and CSA file LR44770. Users are advised to consider de-rating factors as published by fuse manufacturers.

Additional Information:
The document includes dimensions for various components and mentions optional accessories like terminal covers and metal fixing nuts. Contact information for Arcolectric is provided for further inquiries.
