Model 15 Large-Diameter Pipe Weld Head

Product catalog summary

Specifications:
The document outlines the specifications for the Model 15 weld head, which is designed for GTAW welding. Key parameters include an AVC stroke of 1.75” (44 mm), torch oscillation stroke of 1” (25.4 mm), wire feed speed ranging from 5 to 200 lPM, and travel speeds from 0.1 to 20 RPM. Tungsten sizes available are 3/32”, 1/8”, or 5/32”, with filler wire sizes from 0.020” to 0.045”. The torch cross-seam steering range is 2.00” (50 mm), and the weight with the “A” torch is 18 lbs (8 kg). The equipment supports an OD range from 3” to flat and an ID range of 18” or larger, with a water-cooled, 300 A DC torch at 100% duty cycle.

Features:
The Model 15 includes features such as rotation, wire feed, automatic voltage control, cross-seam steering, and torch oscillation. It is adaptable with various configurations and accessories for specific applications. Standard torch features include cross-seam torch tilt, electrode-to-wire nozzle height adjustment, and a spring-loaded mount to prevent accidental breakage.

Benefits:
The Model 15 offers excellent visibility of filler wire position, supports wire sizes from 0.020” to 0.045”, and includes a water-cooled, 300 A torch. It allows for the addition of filler wire while welding in either direction and includes remote-controlled wire feed nozzle manipulators and a video system for remote operation.

Optional Configurations:
The document mentions optional configurations such as AVC Tilt, ID Welding Configuration, and AVC/OSC Interchange.

Contact Information:
Arc Machines, Inc. provides contact details for their headquarters in the USA and offices in the UK, Germany, and India for further inquiries.

Catalog excerpts

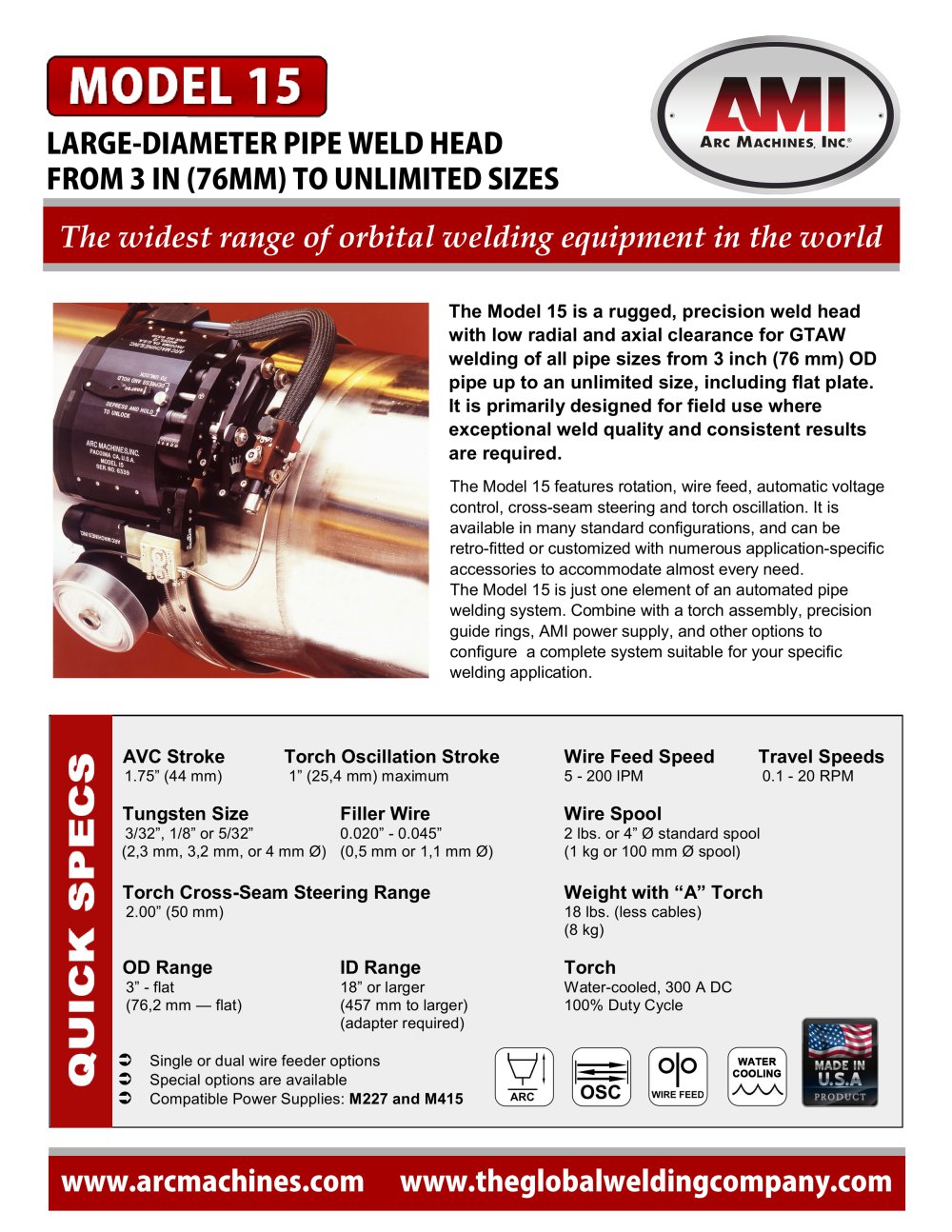

Model 15 Large-Diameter Pipe Weld Head-1

The widest range of orbital welding equipment in the world The Model 15 is a rugged, precision weld head with low radial and axial clearance for GTAW welding of all pipe sizes from 3 inch (76 mm) OD pipe up to an unlimited size, including flat plate. It is primarily designed for field use where exceptional weld quality and consistent results are required. The Model 15 features rotation, wire feed, automatic voltage control, cross-seam steering and torch oscillation. It is available in many standard configurations, and can be retro-fitted or customized with numerous application-specific accessories to accommodate almost every need. The Model 15 is just one element of an automated pipe welding system. Combine with a torch assembly, precision guide rings, AMI power supply, and other options to configure a complete system suitable for your specific welding application. Torch Oscillation Stroke Wire Feed Speed Travel Speeds Tungsten Size Filler Wire Wire Spool 2 lbs. or 4” Ø standard spool (1 kg or 100 mm Ø spool) Torch Cross-Seam Steering Range Weight with “A” Torch 18” or larger (457 mm to larger) (adapter required) Water-cooled, 300 A DC 100% Duty Cycle Single or dual wire feeder options Special options are available Compatible Power Supplies: M227 and M415

Open the catalog to page 1

Model 15 Large-Diameter Pipe Weld Head-2

STANDARD TORCH FEATURES Cross-seam torch tilt (in/out). Electrode-to-wire nozzle height adjustment. Wire nozzle cross-seam adjustment. Lead/lag adjustment. Wire nozzle entry angle adjustment. Wide variety of gas cups and gas lenses. Spring-loaded mount to prevent accidental breakage of torch parts. Single-Wire Entry Model 15 “A” torch Dual-Wire Feed Model 15 “C” torch Remote Viewing Model 15 “P” torch Excellent visibility of filler wire position Accessories for up to 5.0” wall Wire size range from 0.020” to 0.045” Water-cooled, 300 A torch Type HW 20, 17 or 27 gas lenses and gas cups Addition...
