DELTA AP1 - Aseptic valves


Catalog excerpts

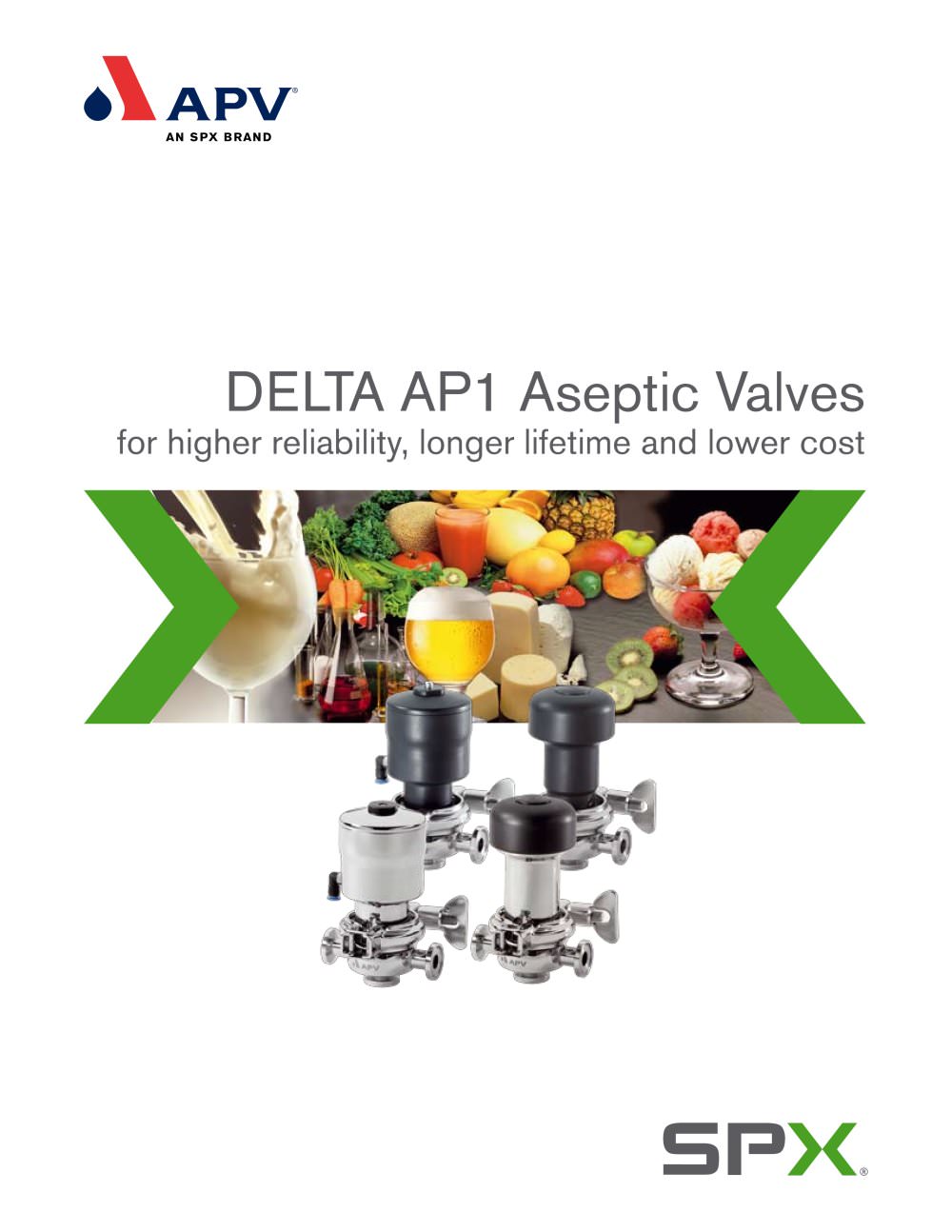

DELTA AP1 - Aseptic valves - 1

DELTA AP1 Aseptic Valves for higher reliability, longer lifetime and lower cost

Open the catalog to page 1
DELTA AP1 - Aseptic valves - 2

Unique fan support for extended diaphragm lifetime. Flexible air hose connection to avoid untidy installations. Description The DELTA AP1 Aseptic valve series from APV comes in two versions – the Techno and the Econo. Each is available in a handoperated and pneumatic actuated version. The housing of the Techno is made of stainless steel 1.4435 with an Ra value of < 0.5 micron for product wetted surfaces on the valve body as required by the pharmaceutical industry. The Techno version valve body comes with an EN 10204 / 3.1 certificate ensuring full documentation of all materials used. Both...

Open the catalog to page 2
DELTA AP1 - Aseptic valves - 3

Manually actuated version Pneumatic actuated version Product specifications Sizes / DIN - pipe standard DIN 11866 / ISO - pipe standard DIN EN ISO1127 DN10, DN15, DN20 ½” Product wetted parts AISI 316L Non-product wetted parts AISI 304 Membrane material PTFE TFM 1705 (FDA 21CRF177.1550, USP Class VI) Valve body material Techno: 1.4435 Econo: 1.4404 Surface roughness Techno: Ra < 0.5 micron Econo: Ra < 0.8 micron Actuator material Techno: Stainless steel Econo: Synthetic material Housing configurations L, T and tank outlet versions Max. temperature 275ºF / 135°C (Short time SIP 302ºF /...

Open the catalog to page 3
DELTA AP1 - Aseptic valves - 4

Your local contact: APV, An SPX Brand 611 Sugar Creek Road Delavan, WI 53115 Phone: (888) 278-4321 Email: For more information about our worldwide locations, approvals, certifications, and local representatives, please visit SPX Corporation reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing. Issued: 04/2009...

Open the catalog to page 4
