Description

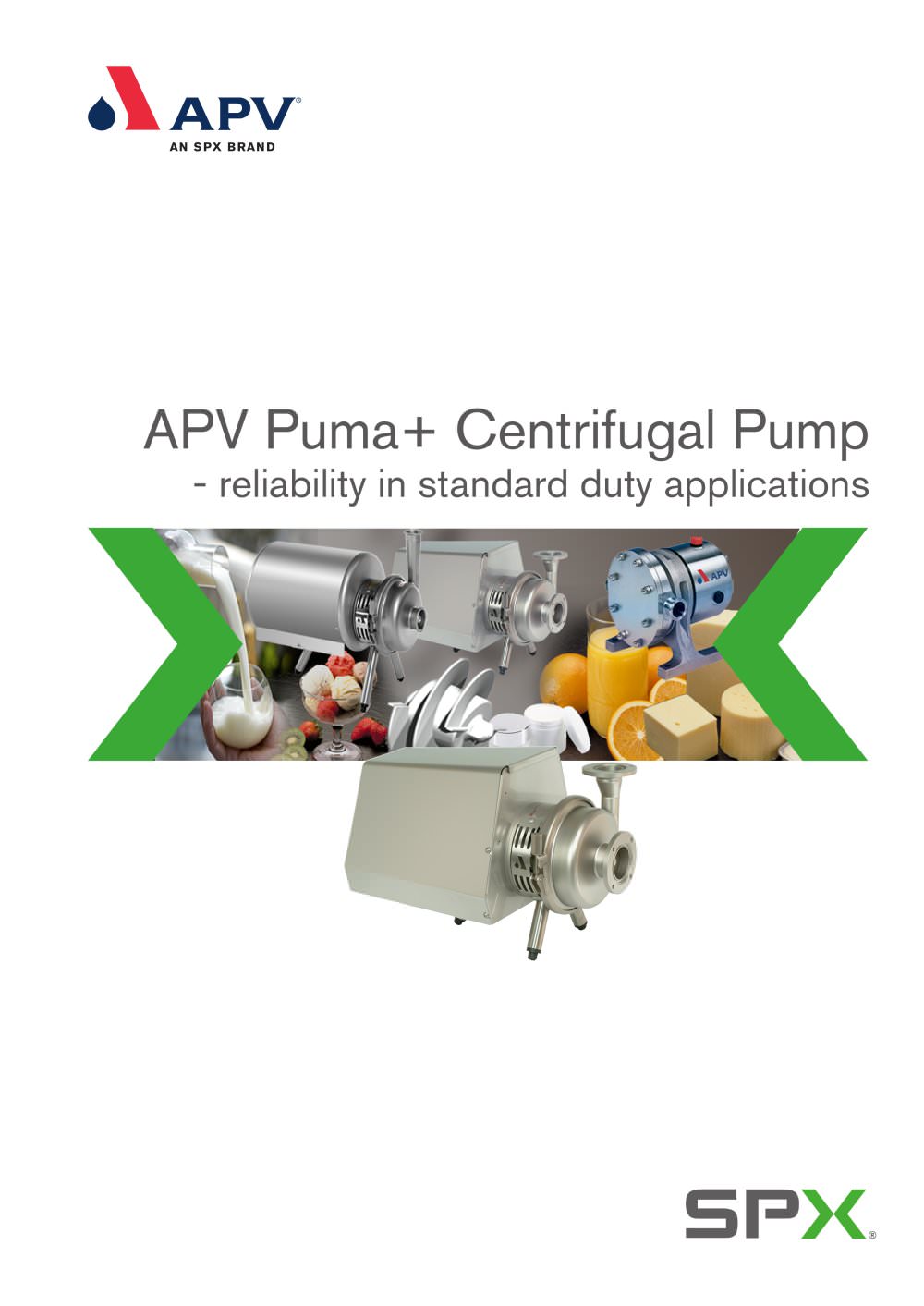

The APV Puma+ centrifugal pump is a hygienic, single-stage pump designed for the food, dairy, and beverage industries. It is customizable to meet individual needs and complies with strict hygienic standards. The pump allows easy conversion from single to double mechanical shaft seals and features adjustable support legs.

Flexible Features

• Differential pressure rates up to 7.8 bar
• Flow rates up to 135 m³/h
• Motor sizes from 1.1 kW to 37 kW
• Pipe connections from DN40 to DN125
• CIP capability

Reliable Components

• Cylindrical pump housing
• Open or semi-open impeller with double bend vanes
• Volute back plate
• Stub shaft
• Mechanical seal
• Shaft guards
• Extension frame for visual inspection of shaft seal area
• Standard ABB motor with IP55 enclosure and stainless steel shroud

Typical Applications

• Liquid transfer in dairies and breweries
• Mixing in soft drink applications
• Food processing
• CIP systems

Features and Benefits

• Reliability at reduced cost with high-quality shaft seals
• Easy maintenance with front-loaded seals and clamp rings
• Compatibility with existing system designs
• Variable height with adjustable legs
• Cost savings on spare parts due to compatibility with APV W+ and Ws+ series

Product Specifications

• Materials: AISI 316L for product wetted parts, AISI 304 for other parts
• Max outlet pressure: 16 bar
• Max seal flush pressure: 7 bar
• Water consumption for flushed seal: 15-30 l/h
• Max operating temperature: 150°C

Options

• FPM elastomers
• Silicon carbide/silicon carbide seal rings
• Double mechanical shaft seal/flushed
• Two bracket options for each motor size
• Motor with thermistor
• 4 pole motor/1,500 rpm
• PUMAi+ with inducer for viscous products

Performance Curves
The document includes performance curves for different pump models and motor configurations, indicating flow rates and pressure capabilities at various RPMs.

Contact Information
For more information, visit the APV website or contact local representatives.
