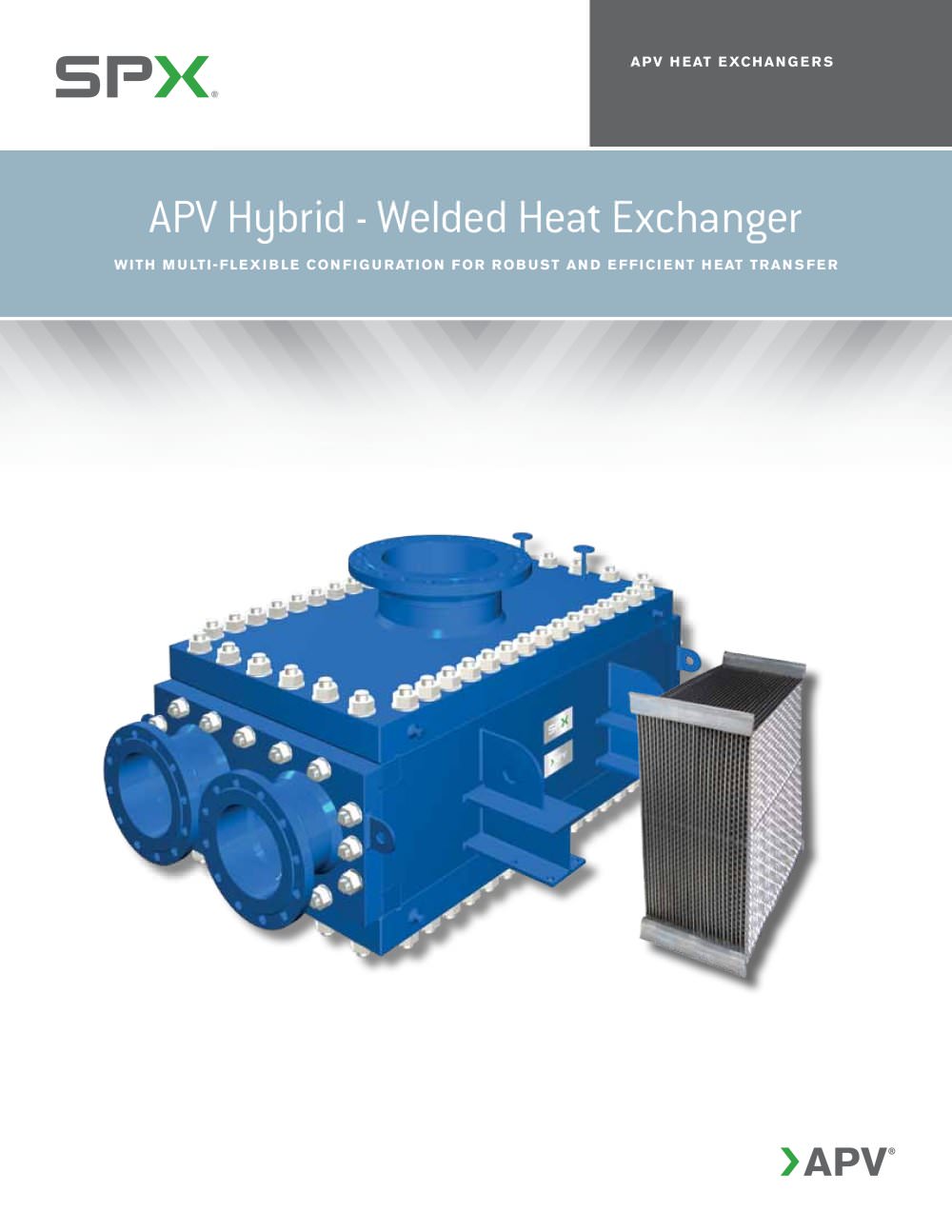

APV Hybrid - Welded Heat Exchanger w i t h m u lt i - f l e x i b l e c o n f i g u r at i o n f o r r o b u s t a n d e f f i c i e n t h e at t r a n s f e r
Open the catalog to page 1![APV Hybrid Welded Plate Heat Exchanger - 2](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_2m.jpg)
APV invented the plate heat exchanger in 1923 (Now SPX) and has continuously Choosing the Right Heat Exchanger can be a Complex Matter proven to be the preferred partner for heat transfer applications. By pioneering applicable technology in pressing, shaping, welding, sealing and testing steel, SPX has continued to develop and improve heat transfer • In a complex decision process, neglecting key priorities may lead to low performance or even plant failure – things you would re-do if you could. • With more than a century of heat exchanger experience, SPX knows the The company is committed to...
Open the catalog to page 2![APV Hybrid Welded Plate Heat Exchanger - 3](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_3m.jpg)
Typical product applications The central plate core is contained by 4 movable pressure panels, and the 2 flows are separated by the plate wall and 4 corner bars. Oil and Gas Gas sweetening Gas Dehydration Crude oil stabilizer Crude oil heater G e n e ral us e 662°F (350°C) Design pressure up to 580 psig (40 bar) Chemical Solution cooler and heater Process condenser Cryogenic chiller Corrosive media Gas/steam/air with low pressure drop Pass-through of particles/solid Power Steam condenser District heating units Industrial Reboiler Pass plates: turn flow to support multi-pass cross flow Plate...
Open the catalog to page 3![APV Hybrid Welded Plate Heat Exchanger - 4](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_4m.jpg)
Inches (Millimeters) … to meet all your needs • We will always find the perfect solution • Perfect adaptability for almost any application • Full utilisation of pressure drop to maximise thermal efficiency • Close temperature approach down to 1.8°F (1°C) possible • Low pressure drop possible – even at high mass flows – even for gas/steam • Perfect for condensation and evaporation (including vacuum condensation) • Large connection sizes possible • Non-symmetric flows handled, even with perfect pressure drop utilization Number of thermal steps Po s s i b l e p a s s c o m b i n a t i o n s o...
Open the catalog to page 4![APV Hybrid Welded Plate Heat Exchanger - 5](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_5m.jpg)
Unseen flexibility based on a range of standard variants… Eac h ava i l a b l e i n va r i o u s s ta n da r d c o n f i g u r at i o n s : Low number of passes tube side system in combination with single pass corrugated side system for low NTU value applications and/or low pressure drop requirements Single pass tube system in combination with corrugated side sandwich system for multiphase applications (e.g. condensation) High number of passes tube side system in combination with corrugated side sandwich system for close temperature approach applications (heat recovery)
Open the catalog to page 5![APV Hybrid Welded Plate Heat Exchanger - 6](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_6m.jpg)
3 plate variants – depending on your needs H y b r i d f e at u r e s 3 v e ry d i f f e r e n t p l at e t y p e s ! • If manual cleaning and/or low pressure drop are essential (e.g. steam/gas). • Pressure drop on tube side can be kept extremely low • Excellent for gas/steam • Excellent mechanical cleanability combined with high heat transfer performance T u p l aF low 2 8 • If you want the best combination in between. • Good mechanical cleanability combined with excellent heat transfer performance E n e r gySav e r • If your focus is optimum efficiency and pressure drop limitations are...
Open the catalog to page 6![APV Hybrid Welded Plate Heat Exchanger - 7](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_7m.jpg)
Do fouling or scaling impact your production planning? • Spare capacity, filter systems or CIP cleaning systems are expensive to install. • 2 of the 3 plate options can be cleaned effectively using manual high pressure cleaning. Openable design Bolted Hybrid can be opened. Th e t u b e - s i d e p l a t e g a p c a n b e h i g h p r e s s u r e c l e a n e d ( Tu p l a F l o w ) . Max. nozzle size Corrugated side Heat transfer Material plates Design temperature Design pressure 16 and 32 bar versions, including full vacuum. Design code Flange ratings Nozzle loads Inches (Millimeters)...
Open the catalog to page 7![APV Hybrid Welded Plate Heat Exchanger - 8](https://img.directindustry.com/pdf/repository_di/5697/apv-hybrid-welded-plate-heat-exchanger-90372_8m.jpg)
Hybrid - Welded Heat Exchanger w i t h m u lt i - f l e x i b l e c o n f i g u r at i o n f o r r o b u s t a n d e f f i c i e n t h e at tran s fe r 666 Fengjin Road, Xidu Industrial Park Feng Xian District United States of America Peoples Republic of China +86 21 67158181 Based in Charlotte, North Carolina, SPX Corporation (NYSE: SPW) is a global Fortune 500 multi-industry manufacturing leader. For more information, please visit www.spx.com 105 CrossPoint Parkway Getzville, NY 14068 P: (800) 462-6893 F: (716) 692-1715 E: answers.us@spx..com SPX reserves the right to incorporate our...
