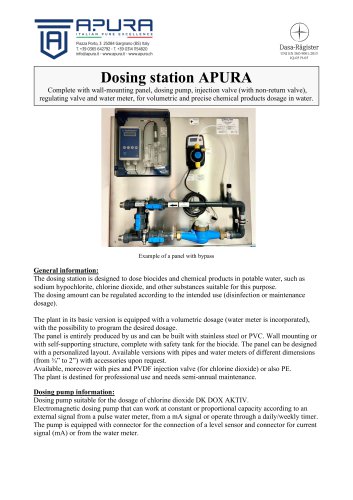

Dosing station APURA Complete with wall-mounting panel, dosing pump, injection valve (with non-return valve), regulating valve and water meter, for volumetric and precise chemical products dosage in water. Example of a panel with bypass General information: The dosing station is designed to dose biocides and chemical products in potable water, such as sodium hypochlorite, chlorine dioxide, and other substances suitable for this purpose. The dosing amount can be regulated according to the intended use (disinfection or maintenance dosage). The plant in its basic version is equipped with a volumetric dosage (water meter is incorporated), with the possibility to program the desired dosage. The panel is entirely produced by us and can be built with stainless steel or PVC. Wall mounting or with self-supporting structure, complete with safety tank for the biocide. The panel can be designed with a personalized layout. Available versions with pipes and water meters of different dimensions (from ¾” to 2”) with accessories upon request. Available, moreover with pies and PVDF injection valve (for chlorine dioxide) or also PE. The plant is destined for professional use and needs semi-annual maintenance. Dosing pump information: Dosing pump suitable for the dosage of chlorine dioxide DK DOX AKTIV. Electromagnetic dosing pump that can work at constant or proportional capacity according to an external signal from a pulse water meter, from a mA signal or operate through a daily/weekly timer. The pump is equipped with connector for the connection of a level sensor and connector for current signal (mA) or from the water mete

RPLRR ITALIAN PURE EXCELLENCE Piazza Porto, 3 25084 Gargnano CBS) Italy T. +39 0365 642792 - T. +39 03141154820 [email protected] - www.apura.it - www.apura.ch Install the panel on the wall or nearby (for the self-supporting model) the piping at the facility entry. Connect inlet and outlet. Deaerate the pump with dosing product. Set the desired dosage. The water meter, upon water passage and in the chosen modes, will activate the pump every time water passage is registered. Dosage is set volumetric, according to consumption. Dosage amount can be regulated in the measuring range from 0,1 to 10 mg/l....
