SPR-45VA Stencil Printer

SPR-45VA Stencil Printer
2Pages

Catalog excerpts

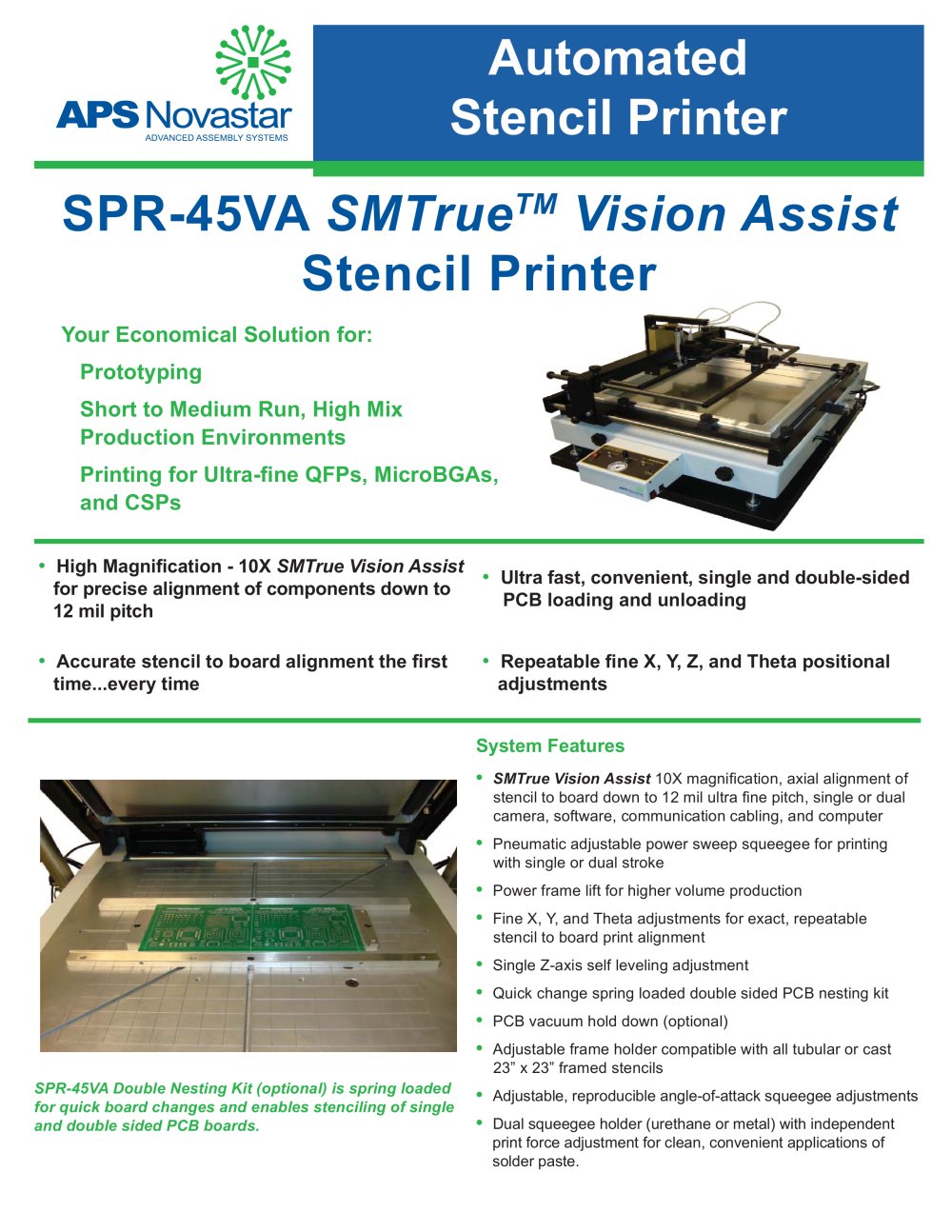

4024_MaXiMa.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:24.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } Automated APS Novastar ADVANCED ASSEMBLY SYSTEMS Stencil Printer SPR-45VA SMTrue Vision Assist Stencil Printer Prototyping Short to Medium Run, High Mix Production Environments Printing for Ultra-fine QFPs, MicroBGAs, and CSPs High Magnification - 10X SMTrue Vision Assist for precise alignment of components down to 12 mil pitch Ultra fast, convenient, single and double-sided PCB loading and unloading Accurate stencil to board alignment the first time...every time Repeatable fine X, Y, Z, and Theta positional adjustments System Features ٕ SMTrue Vision Assist 10X magnification, axial alignment of stencil to board down to 12 mil ultra fine pitch, single or dual camera, software, communication cabling, and computer Pneumatic adjustable power sweep squeegee for printing with single or dual stroke Օ Power frame lift for higher volume production Fine X, Y, and Theta adjustments for exact, repeatable stencil to board print alignment Օ Single Z-axis self leveling adjustment Quick change spring loaded double sided PCB nesting kit Օ PCB vacuum hold down (optional) Adjustable frame holder compatible with all tubular or cast 23" x 23" framed stencils Օ Adjustable, reproducible angle-of-attack squeegee adjustments Dual squeegee holder (urethane or metal) with independent print force adjustment for clean, convenient applications of solder paste. SPR-45VA Double Nesting Kit (optional) is spring loaded for quick board changes and enables stenciling of single and double sided PCB boards.

Open the catalog to page 1

4024_MaXiMa.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } RODUCT SPECIFICATIONS: Printing Resolution Down to 12 mil pitch components Dual Squeegee Yes Urethane or Metal Squeegee machine supplied with 2 of each type squeegee Single or double pass Yes Linear squeegee guide Automatic Adjustable angle of attack Yes X & Y adjustment ± 0.5000" (12.7mm) Z...
