F-1 Axial Component Trimmer/Former

F-1 Axial Component Trimmer/Former
1Pages

Catalog excerpts

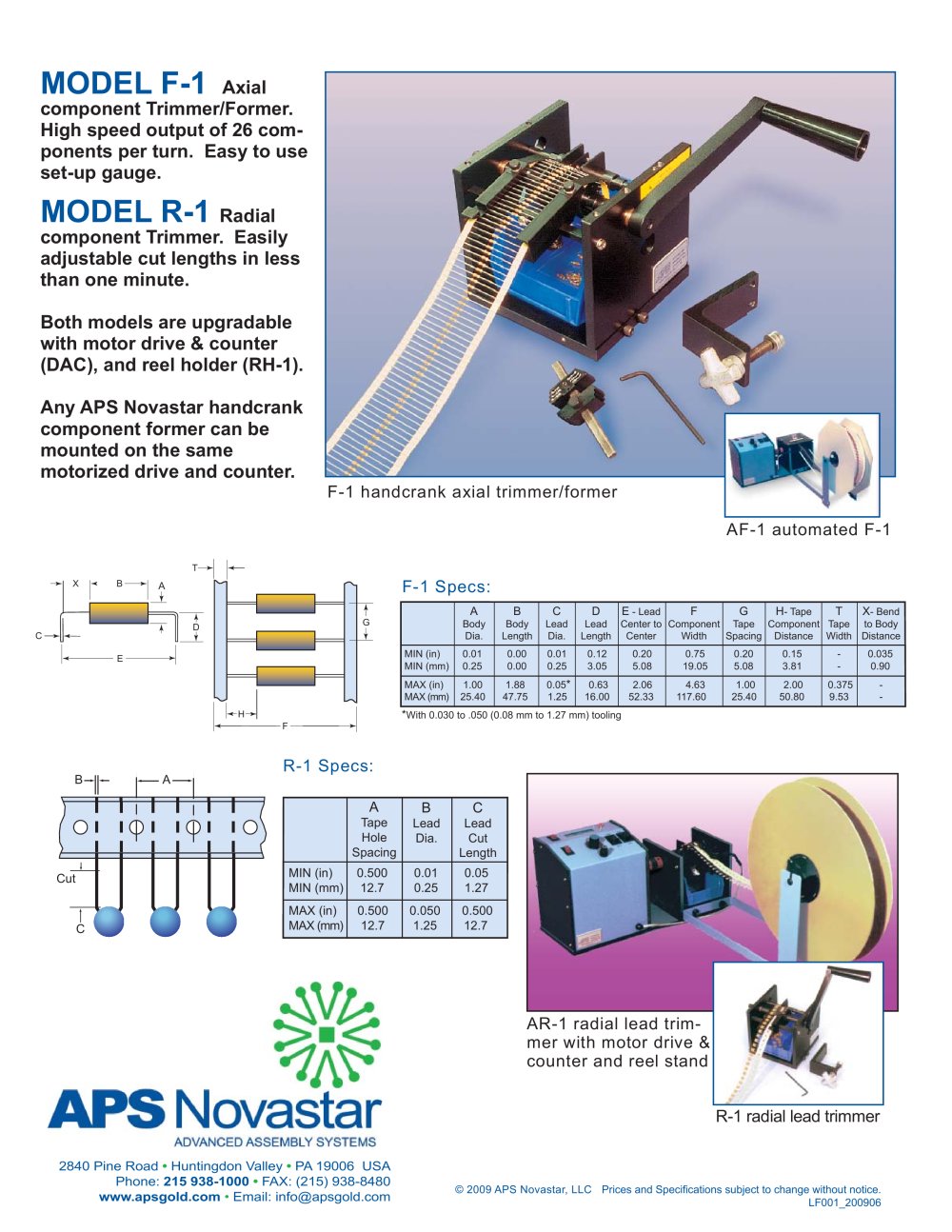

Reflow Oven Brochure - GF-120, 1800, & 2000 Series Reflow Ovens table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:17.00pt "Arial", sans-serif; } .font8 { font:20.00pt "Arial", sans-serif; } .font9 { font:34.00pt "Arial", sans-serif; } MODEL F-1 Axial component Trimmer/Former. High speed output of 26 com-ponents per turn. Easy to use set-up gauge. MODEL R-1 Radial component Trimmer. Easily adjustable cut lengths in less than one minute. Both models are upgradable with motor drive & counter (DAC), and reel holder (RH-1). Any APS Novastar handcrank component former can be mounted on the same motorized drive and counter. F-1 handcrank axial trimmer/former AF-1 automated F-1 T X B >pecs. C E A B C D E - Lead F G H- Tape T X- Bend Body Body Lead Lead Center to Component Tape Component Tape to Body Dia. Length Dia. Length Center Width Spacing Distance Width Distance MIN (in) 0.01 0.00 0.01 0.12 0.20 0.75 0.20 0.15 - 0.035 MIN (mm) 0.25 0.00 0.25 3.05 5.08 19.05 5.08 3.81 - 0.90 MAX (in) 1.00 1.88 0.05* 0.63 2.06 4.63 1.00 2.00 0.375 - MAX(mm) 25.40 47.75 1.25 16.00 52.33 117.60 25.40 50.80 9.53 - H *With 0.030 to .050 (0.08 mm to 1.27 mm) tooling F r <\ -| _i m r <\ _i rn » Cut R-1 Specs: A B C Tape Lead Lead Hole Dia. Cut Spacing Length MIN (in) 0.500 0.01 0.05 MIN (mm) 12.7 0.25 1.27 MAX (in) 0.500 0.050 0.500 MAX(mm) 12.7 1.25 12.7 C APS Novastar ADVANCED ASSEMBLY SYSTEMS 2840 Pine Road Huntingdon Valley  PA 19006 USA Phone: 215 938-1000 FAX: (215) 938-8480 www.apsgold.comՕ Email: info@apsgold.com AR-1 radial lead trim-mer with motor drive & counter and reel stand R-1 radial lead trimmer © 2009 APS Novastar, LLC Prices and Specifications subject to change without notice. LF001_200906

Open the catalog to page 1
