ESS Selective Soldering Machines
2Pages

{{requestButtons}}

Catalog excerpts

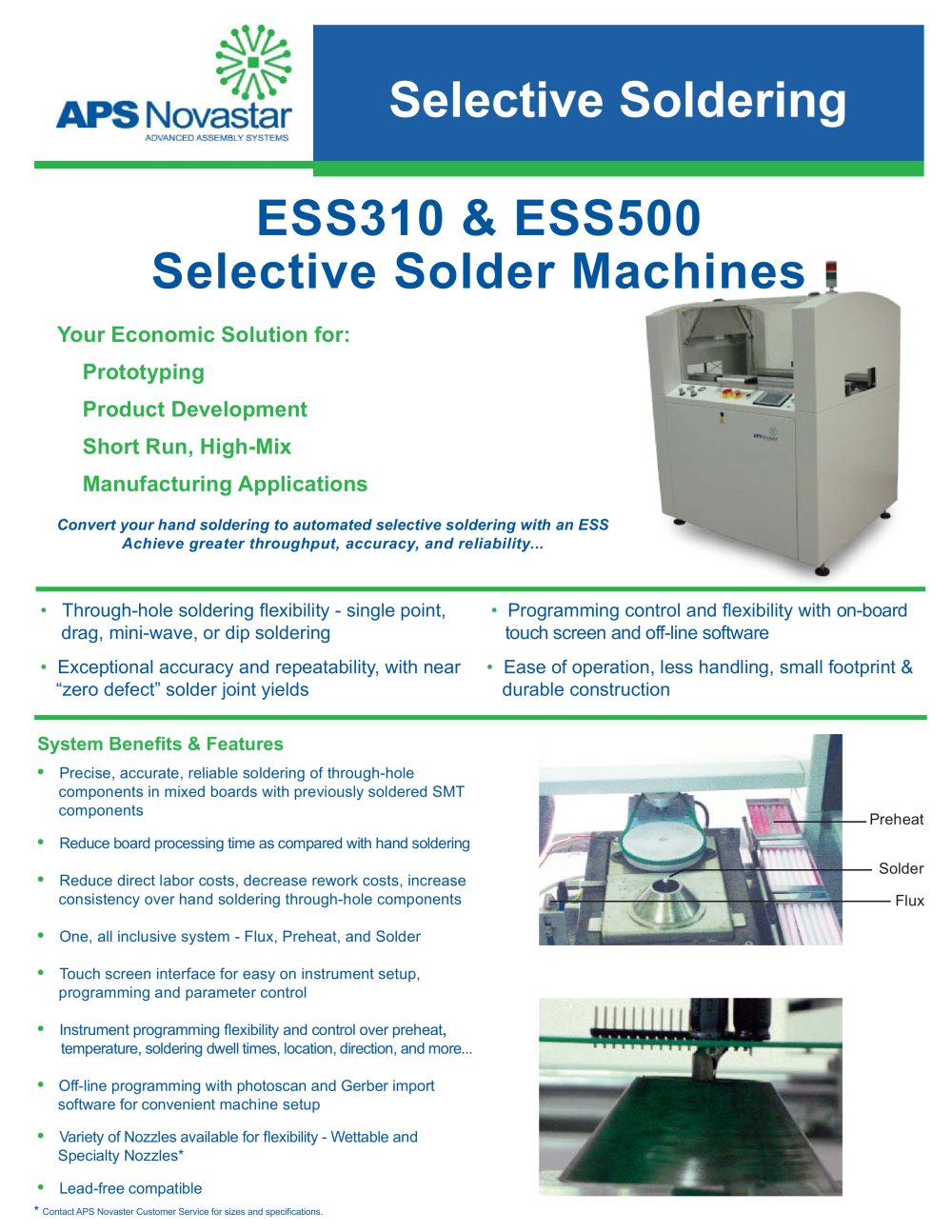

ESS Selective Soldering Machines - 1

Reflow Oven Brochure - GF-120, 1800, & 2000 Series Reflow Ovens table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:30.00pt "Arial", sans-serif; } Slective Soldering ESS310 & ESS500 Slective Solder Machines Your Economic Solution for: Prototyping Product Development Short Run, High-Mix Manufacturing Applications Convert your hand soldering to automated s驩lective soldering with an ESS Achieve greater throughput, accuracy, and reliability... Through-hole soldering flexibility - single point, drag, mini-wave, or dip soldering Օ Exceptional accuracy and repeatability, with near "zero defect" solder joint yields Programming control and flexibility with on-board touch screen and off-line software Ease of operation, less handling, small footprint & durable construction System Benefits & Features Precise, accurate, reliable soldering of through-hole components in mixed boards with previously soldered SMT components Օ Reduce board processing time as compared with hand soldering Reduce direct labor costs, decrease rework costs, increase consistency over hand soldering through-hole components Օ One, all inclusive system - Flux, Preheat, and Solder Touch screen interface for easy on instrument setup, programming and parameter control Օ Instrument programming flexibility and control over preheat, temperature, soldering dwell times, location, direction, and more... Off-line programming with photoscan and Gerber import software for convenient machine setup Օ Variety of Nozzles available for flexibility - Wettable and Specialty Nozzles* Lead-free compatible Օ Contact APS Novaster Customer Service for sizes and specifications. Preheat - Solder Flux

Open the catalog to page 1
ESS Selective Soldering Machines - 2

Reflow Oven Brochure - GF-120, 1800, & 2000 Series Reflow Ovens table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } PRODUCT SPECIFICATIONS: Spcifications ESS-310 ESS-500 Max. PCB Size 310 x 310mm (12" x 12") 500 x 500mm (19.7" x 19.7") Max. Clearance on Solder Side* 25mm (1")* 25mm (1")* Max. Transport Speed 6m/min 6m/min Transport Angle 0° fixed 0° fixed Position accuracy above fluxer, preheater, and...

Open the catalog to page 2
