ECO-line series

Product catalog summary

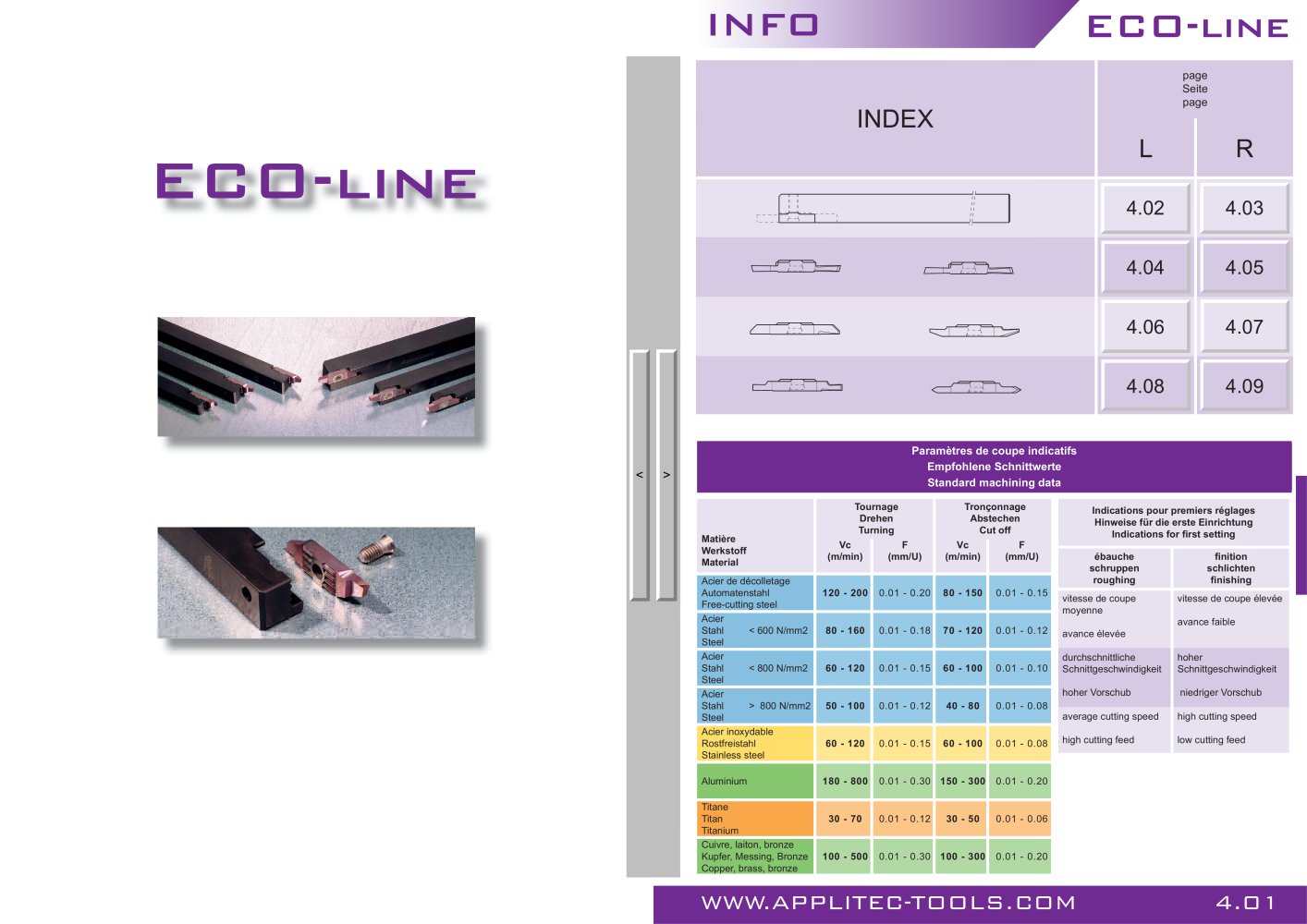

Indicative Cutting Parameters:
The document provides standard machining data for various materials including free-cutting steel, steel with different tensile strengths, stainless steel, aluminum, titanium, and copper alloys. It specifies cutting speeds (Vc) and feed rates (F) for turning and cut-off operations.

Material Specifications:

Free-cutting steel: Vc 120-200 m/min, F 0.01-0.20 mm/U for turning.
Steel < 600 N/mm²: Vc 80-160 m/min, F 0.01-0.18 mm/U for turning.
Steel < 800 N/mm²: Vc 60-120 m/min, F 0.01-0.15 mm/U for turning.
Steel > 800 N/mm²: Vc 50-100 m/min, F 0.01-0.12 mm/U for turning.
Stainless steel: Vc 60-120 m/min, F 0.01-0.15 mm/U for turning.
Aluminum: Vc 180-800 m/min, F 0.01-0.30 mm/U for turning.
Titanium: Vc 30-70 m/min, F 0.01-0.12 mm/U for turning.
Copper, brass, bronze: Vc 100-500 m/min, F 0.01-0.30 mm/U for turning.

Tool Holders and Inserts:
The document lists various tool holders and inserts with specific dimensions and part numbers for different machining operations. It includes both uncoated and coated inserts, with a focus on high-performance PVD coatings (TiAlN).

Cut-off and Grooving Tools:
Detailed specifications for cut-off and grooving tools are provided, including dimensions and part numbers. The document emphasizes the use of specific series holders for optimal performance.

Recommendations for Initial Settings:
Guidelines for roughing and finishing operations are provided, suggesting average cutting speeds with high feed rates for roughing and high cutting speeds with low feed rates for finishing.

Catalog excerpts

Utiliser des porte-outils s驩rie 260Halter Serie 260 verwenden Use 260 series holders > Utiliser des porte-outils srie 250Halter Serie 250 verwenden Use 250 series holders EL Art. N EL Art. N鰰 EL15 EL15а 2.08.5 261L-2.0-AP202 1.57 251R-1.5-AP202 2.08.5 251R-2.0-AP202 E/1015EXL EL Art. Nа X=4 1.57 251Rxf-1.5-AP202 2.08.5 251Rxf-2.0-AP202 > revЪtement PVD universel haute performance (TiAlN)universelle hochleistungs PVD Beschichtung (TiAlN) universal high performance PVD coating (TiAlN)revtement PVD universel haute performance (TiAlN)universelle hochleistungs PVD Beschichtung (TiAlN) universal high...

Open the catalog to page 3

revЪtement PVD universel haute performance (TiAlN)universelle hochleistungs PVD Beschichtung (TiAlN) universal high performance PVD coating (TiAlN)revtement PVD universel haute performance (TiAlN)universelle hochleistungs PVD Beschichtung (TiAlN) universal high performance PVD coating (TiAlN) >

Open the catalog to page 4

revtement PVD universel haute performance (TiAlN)universelle hochleistungs PVD Beschichtung (TiAlN) universal high performance PVD coating (TiAlN)revtement PVD universel haute performance (TiAlN)universelle hochleistungs PVD Beschichtung (TiAlN) universal high performance PVD coating (TiAlN) >

Open the catalog to page 5
