Features

Large LCD display with backlighting option.
Variable gain load cell sensitivity ranging from 0.5 to 200mV/V.
Simple one-pass auto calibration.
Function keys for Gross, Net, Tare, and Print operations.
4-20mA and 0-10V isolated analogue outputs.
10V @ 160mA excitation for up to six 350-ohm load cells.
High accuracy and low drift.
Wide range of power supply options (220-240V AC, 9-32V DC).
IP65 surface mounting case.
10 years data retention with digital programming, calibration, and display.

Introduction

The SMW Intelligent Load Cell Amplifier provides both 4-20mA and 0-10V analogue outputs from any standard load cell input. It is user-friendly with easy calibration and analogue output range setting via the front panel keypad.

Power Supply Options

220-240V AC
9-32V DC

Additional Features

Remote display module and DIN rail mounting for the CPU.
Programmable function key disabling.
Plug-in output options include relay set point module with engineering units, In Flight compensation, and Hysteresis settings.

Communications Modules

20mA Current loop, RS485, RS232 for reading values and changing set points.

Printer Module

Activated by a function key to display current live value with header message, engineering units, auto incrementing batch number, and real-time/date signature.

Specifications

Calibration: Simple auto calibration with front panel keypad for input and output.
Load Cell Input: Load cell/strain gauge type with 9.6 volts @ 160mA excitation.
Analogue Outputs: Isolated 4-20mA up to 1Kohm and 0-10 volts up to 2mA.
Accuracy: 4-20mA + 0.15% of range, typical.
Environmental Conditions: Storage temperature -20 to +70°C, Operating temperature -10 to +50°C, Relative humidity 95% max non-condensing.
Product Standard: IEC 1010-1.

Options

Set Points Output through 5A, 240V AC SPCO relays with latching option.
Communications Port for data transfer or print via 20mA loop, RS485, RS232.
Baud Rates: 300, 600, 1200, 2400, 4800, 9600 (19200 Fast Format only).
Remote Mounting Display module for panel mounting.

Note: Specifications are subject to change without prior notice.

Catalog excerpts

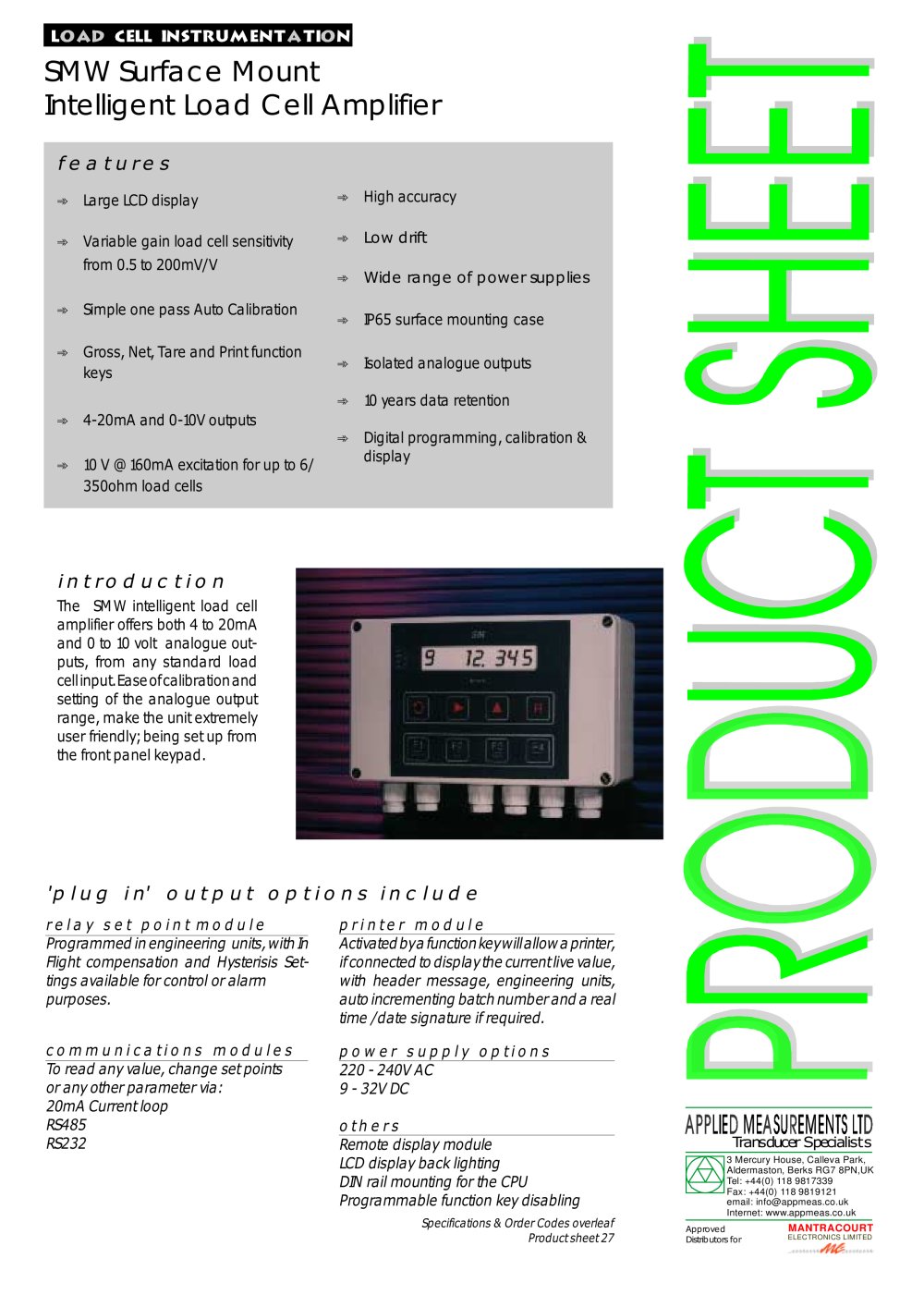

Wall Mounted Indicator - Strain Gauge Input SMW-1
