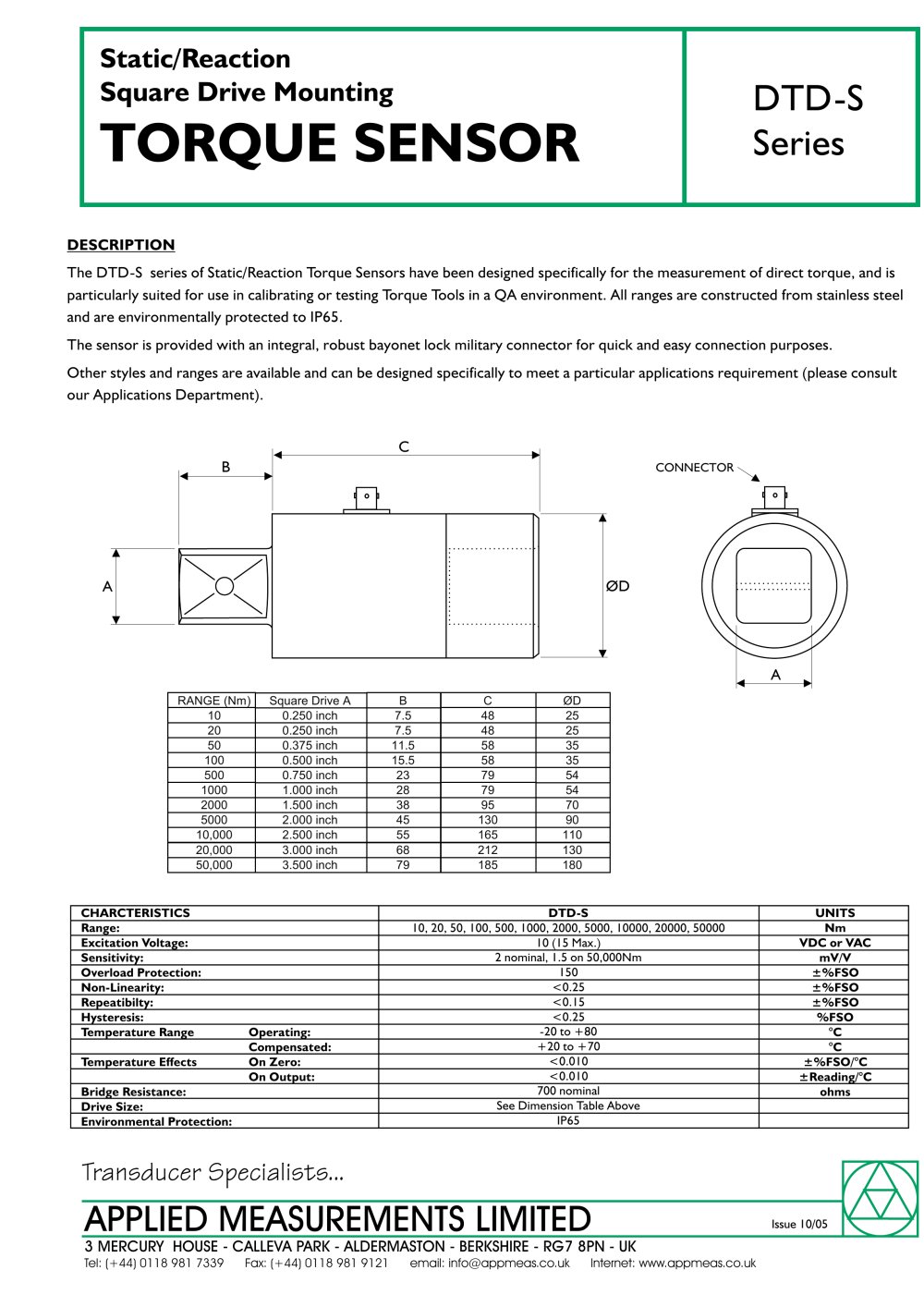

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:15.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } .font4 { font:18.00pt "Arial", sans-serif; } .font5 { font:34.00pt "Arial", sans-serif; } Static/Reaction Square Drive Mounting DTD-S TORQUE SENSOR Sries DESCRIPTION The DTD-S series of Static/Reaction Torque Sensors have been designed specifically for the measurement of direct torque, and is particularly suited for use in calibrating or testing Torque Tools in a QA environment. All ranges are constructed from stainless steel and are environmentally protected to IP65. The sensor is provided with an integral, robust bayonet lock military connector for quick and easy connection purposes. Other styles and ranges are available and can be designed specifically to meet a particular applications requirement (please consult our Applications Department). RANGE (Nm) Square Drive A C 0D 10 0.250 inc h 7.5 48 25 20 0.250 inc h 7.5 48 25 50 0.375 inc h 11.5 58 35 100 0.500 inc h 15.5 58 35 500 0.750 inc h 23 79 54 1000 1.000 inc h 28 79 54 2000 1.500 inc h 38 95 70 5000 2.000 inc h 45 130 90 10,000 2.500 inc h 55 165 110 20,000 3.000 inc h 68 212 130 50,000 3.500 inc h 79 185 180 CHARCTERISTICS DTD-S UNITS Range: 10, 20, 50, 100, 500, 1000, 2000, 5000, 10000, 20000, 50000 Nm Excitation Voltage: 10 (15 Max.) VDCorVAC Sensitivity: 2 nominal, 1.5 on 50,000Nm mV/V Overload Protection: 150 ±%FSO Non-Linearity: <0.25 ±%FSO Repeatibilty: <0.15 ±%FSO Hysteresis: <0.25 %FSO Temperature Range Operating: -20 to +80 °C Compensated: +20 to +70 °C Temperature Effects On Zero: <0.010 ±%FSO/°C On Output: <0.010 ±Reading/°C Bridge Resistance: 700 nominal ohms Drive Size: See Dimension Table Above Environmental Protection: IP65 Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: info@appmeas.co.uk Internet: www.appmeas.co.uk
