Rotary - Parallel Shaft TMA/TMRA

Rotary - Parallel Shaft TMA/TMRA

Product catalog summary

Description: The TMA/TMRA series torque sensors are designed for continuous rotation applications, utilizing slip rings for data transfer. They feature integral amplifiers to enhance the torque output signal to 0-10Vdc, with an optional 4-20mA output. These sensors can be paired with a range of instrumentation for a complete, calibrated system from a single supplier.

Key Specifications:

Torque Ranges: 5Nm to 2kNm
Accuracy: 0.3% Class
Design: Brushless for high RPM capability
Output: 0-10Vdc or 4-20mA
RPM Output: Available in TMA model
Maximum RPM: Up to 10,000rpm
Warranty: 3 years

Options: Customer-specific measuring ranges and complete system calibration with traceable certificates are available.

Characteristics:

Rated Output (FSO): mV/V
Excitation Voltage: VDC
Safe Overload: % FSO
Non-Linearity, Repeatability, Hysteresis: ±% FSO
Operating Temperature Range: -20°C to -70°C
Compensated Temperature Range: -10°C to -60°C
Temperature Effect on Zero/Output: ±%FSO/°C
Terminal Resistance: Input/Output ohms
Insulation Resistance: Megaohms at 500VDC
Environmental Protection: IP 50
Cable: 3m screened Ø5mm
RPM Output: 60 pulses/revolution

Dimensions: Detailed dimensions are provided for various torque capacities ranging from 5Nm to 2kNm, with specific measurements for both TMA and TMRA models.

Contact Information: Applied Measurements Limited, 3 Mercury House, Calleva Park, Aldermaston, Berkshire, RG7 8PN, UK. Tel: (+44) 0118 981 7339, Fax: (+44) 0118 981 9121, Email: [email protected], Website: www.appmeas.co.uk

Catalog excerpts

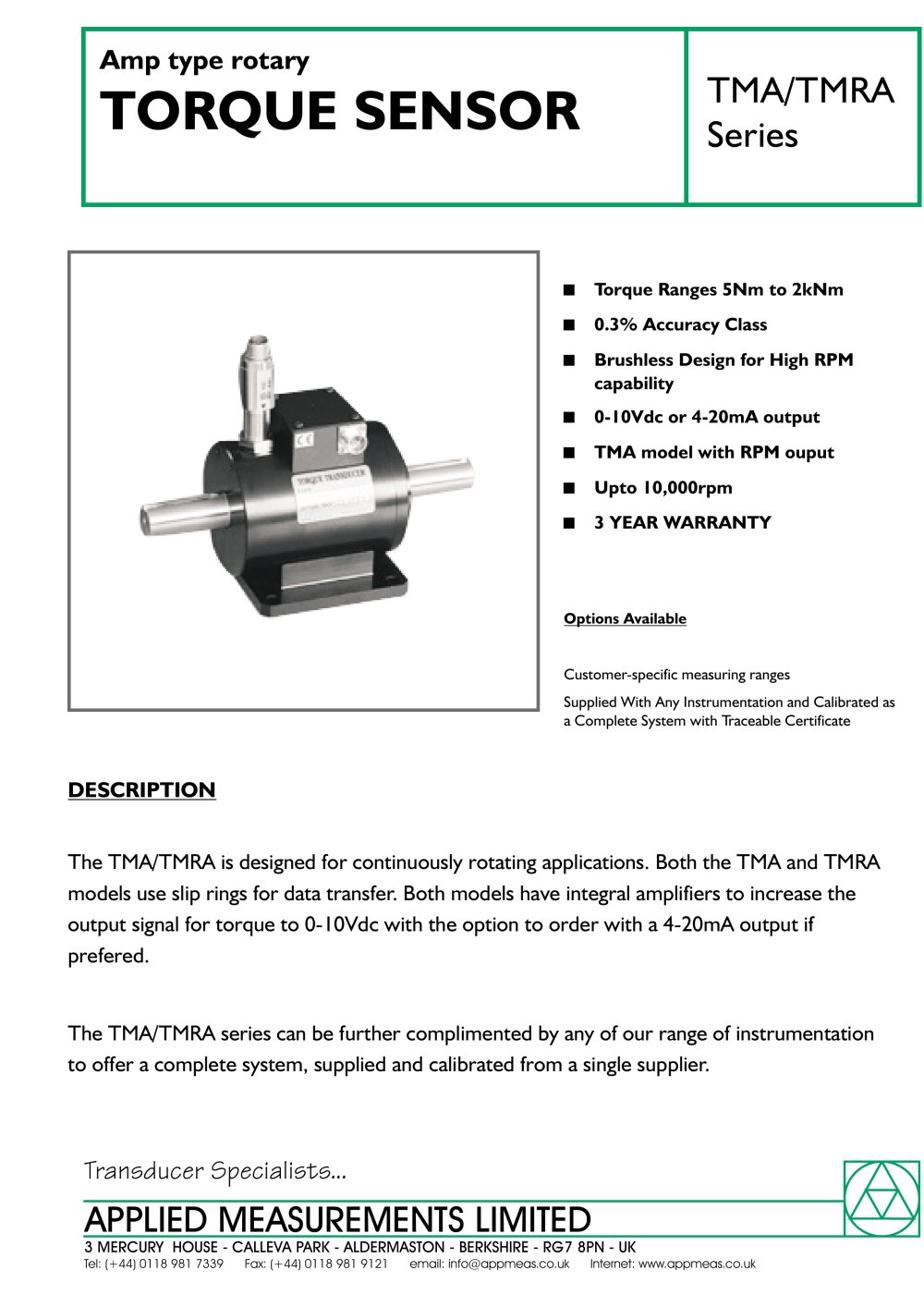

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:18.00pt "Arial", sans-serif; } .font7 { font:34.00pt "Arial", sans-serif; } Amp type rotary I TORQUE SENSOR ?ãM"A ■ Torque Ranges 5Nm to 2kNm ■ 0.3% Accuracy Class ■ Brushless Design for High RPM capability ■ 0-10Vdc or 4-20mA output ■ TMA model with RPM ouput ■ Upto 10,000rpm ■ 3 YEAR WARRANTY Options Available Customer-specific measuring ranges Supplied With Any Instrumentation and Calibrated as a Complete System with Traceable Certificate DESCRIPTION The TMA/TMRA is designed for continuously rotating applications. Both the TMA and TMRA models use slip rings for data transfer. Both models have integral amplifiers to increase the output signal for torque to 0-10Vdc with the option to order with a 4-20mA output if prefered. The TMA/TMRA series can be further complimented by any of our range of instrumentation to offer a complete system, supplied and calibrated from a single supplier. Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: [email protected] Internet: www.appmeas.co.uk

Open the catalog to page 1

All Applied Measurements catalogs and technical brochures
