Rotary - Flanged YDFF

Rotary - Flanged YDFF

Product catalog summary

Description: The YDFF torque sensors are slip ring rotating transducers with flange drives at both ends, featuring female thread holes for easy installation. They are compact, requiring minimal mounting space, and can be integrated with a range of instrumentation for a complete system solution.

Specifications: The torque sensors offer ranges from 50Nm to 5kNm with a 0.3% accuracy class. They utilize slip ring technology and flange coupling, supporting up to 5000rpm. The product comes with a 3-year warranty and options for mounting pedestals and customer-specific measuring ranges. It is supplied with any instrumentation and calibrated as a complete system with a traceable certificate.

Characteristics: Key characteristics include:

Torque Ranges: 50Nm to 5kNm
Rated Output (FSO): 1.5 MV/V
Excitation Voltage: 10 VDC
Safe Overload: 150% FSO
Non-Linearity: ±0.3% FSO
Repeatability: ±0.2% FSO
Hysteresis: ±0.3% FSO
Operating Temperature Range: -20°C to -70°C
Compensated Temperature Range: -10°C to -60°C
Temperature Effect on Zero: ±0.01%FSO/°C
Temperature Effect on Output: ±0.008%FSO/°C
Terminal Resistance (Input/Output): 350/300 ohms
Insulation Resistance: 300 megohms
Environmental Protection: IP50
Cable: 3m screened Ø5mm

Dimensions and Capacities: The document provides detailed dimensions and capacities for different torque ranges, from 50Nm to 5kNm, specifying measurements for various components such as flange diameter, bolt circle diameter, and mounting hole specifications.

Contact Information: Applied Measurements Limited, 3 Mercury House, Calleva Park, Aldermaston, Berkshire, RG7 8PN, UK. Tel: (+44) 0118 981 7339, Fax: (+44) 0118 981 9121, Email: [email protected], Website: www.appmeas.co.uk

Catalog excerpts

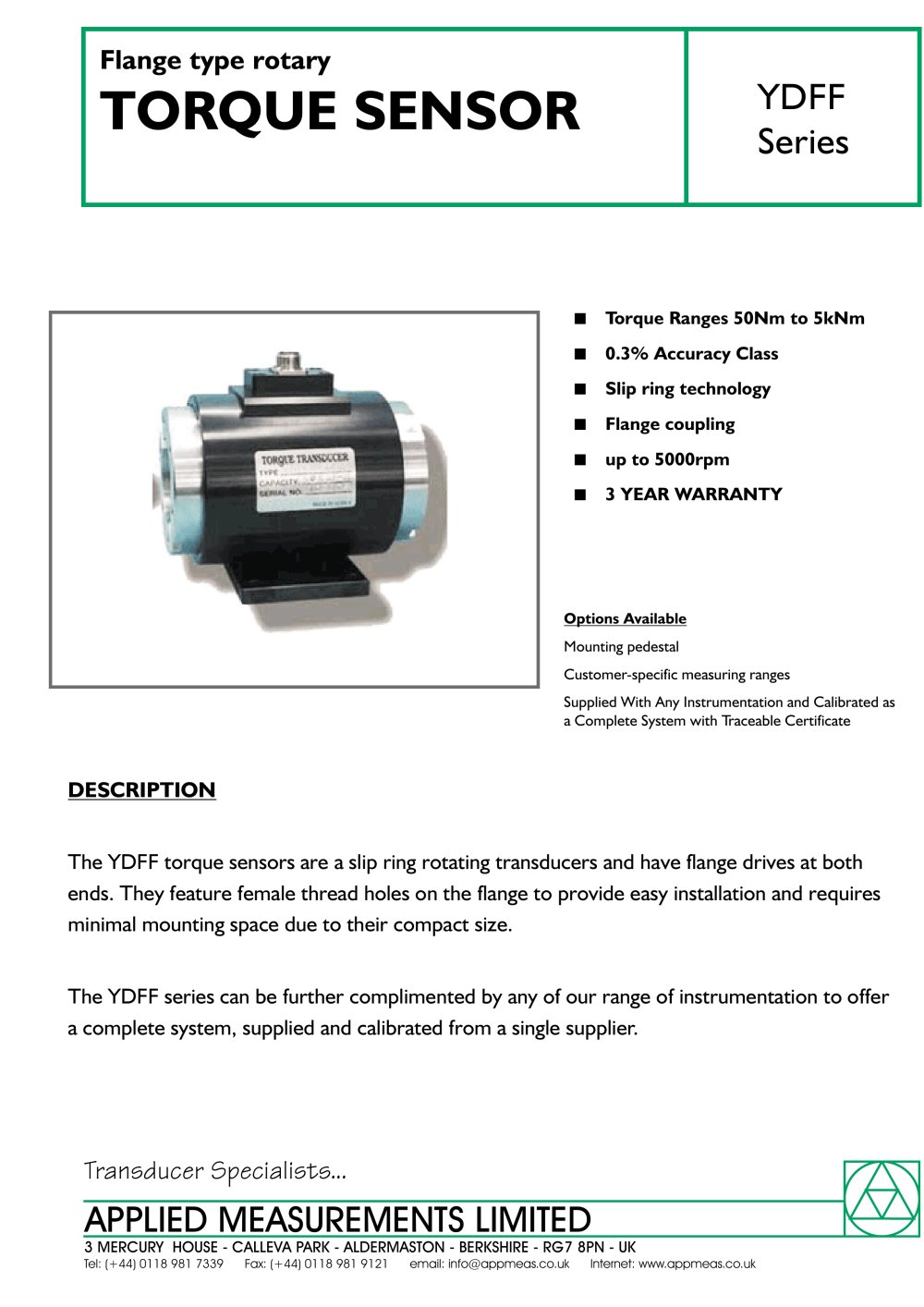

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:18.00pt "Arial", sans-serif; } .font7 { font:34.00pt "Arial", sans-serif; } Flange type rotary TORQUE SENSOR YDFF Sries ■ Torque Ranges 50Nm to 5kNm ■ 0.3% Accuracy Class ■ Slip ring technology ■ Flange coupling ■ up to 5000rpm ■ 3 YEAR WARRANTY Options Available Mounting pedestal Customer-specific measuring ranges Supplied With Any Instrumentation and Calibrated as a Complete System with Traceable Certificate DESCRIPTION The YDFF torque sensors are a slip ring rotating transducers and have flange drives at both ends. They feature female thread holes on the flange to provide easy installation and requires minimal mounting space due to their compact size. The YDFF series can be further complimented by any of our range of instrumentation to offer a complete system, supplied and calibrated from a single supplier. Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: [email protected] Internet: www.appmeas.co.uk
