Panel Mounted Indicator - Strain Gauge Input ADW15

Product catalog summary

Features:

Variable gain load cell sensitivity ranging from 0.5 to 200mV/V.
Fully programmable via keypad and communication port.
High resolution with a 4.5 digit display.
Excitation compensation and 10V @ 150mA excitation to support up to four 350 ohm load cells.
Isolated inputs and outputs for enhanced safety and performance.

Options:

Available in panel and DIN rail mounting configurations.
Power supply options include 110/240 VAC or 12/24 VDC.
Communication outputs compatible with printers, PLCs, or PCs.
Fast analogue output available.

Accessories:

Includes analogue, relay, communication, and printer drive outputs.

Outputs:

Programmable in-flight compensation and auto-calibration features.
High noise immunity and selectable gain options.
Peak hold and auto zero (tare) functions.

Interface Module:

IF25 Interface Module connects up to 25 ADP15 units to one RS232 port.

Control/Alarm Relay Outputs:

Various relay configurations available, programmable via keypad.

Power Supplies:

Options for 220V-240V AC, 110V-120V AC, and 9-32V DC.

Display and Controls:

7-segment LED display with 4.5 digits and multiple LED indicators for status.
Membrane panel keys for control with tactile feedback.

Data Retention/Protection:

Data retention for 10 years with a minimum of 10,000 write cycles.
Watchdog timer for auto resets and keypad security features.

Environmental Specifications:

Operating temperature range from -10 to 50ºC and storage from -20 to +70ºC.
Front panel sealing to IP65 standards.

Physical Specifications:

Case dimensions: DIN 72 x 72 x 163mm, made of flame-retardant grey Noryl.

Analogue Outputs:

Various voltage and current output ranges with high accuracy and resolution.

Communication Port:

Supports multiple baud rates and provides high-speed data integrity.

Calibration and Input Details:

Automatic digital calibration via keypad with manual options available.
Auto tare function with retention on power down.

Catalog excerpts

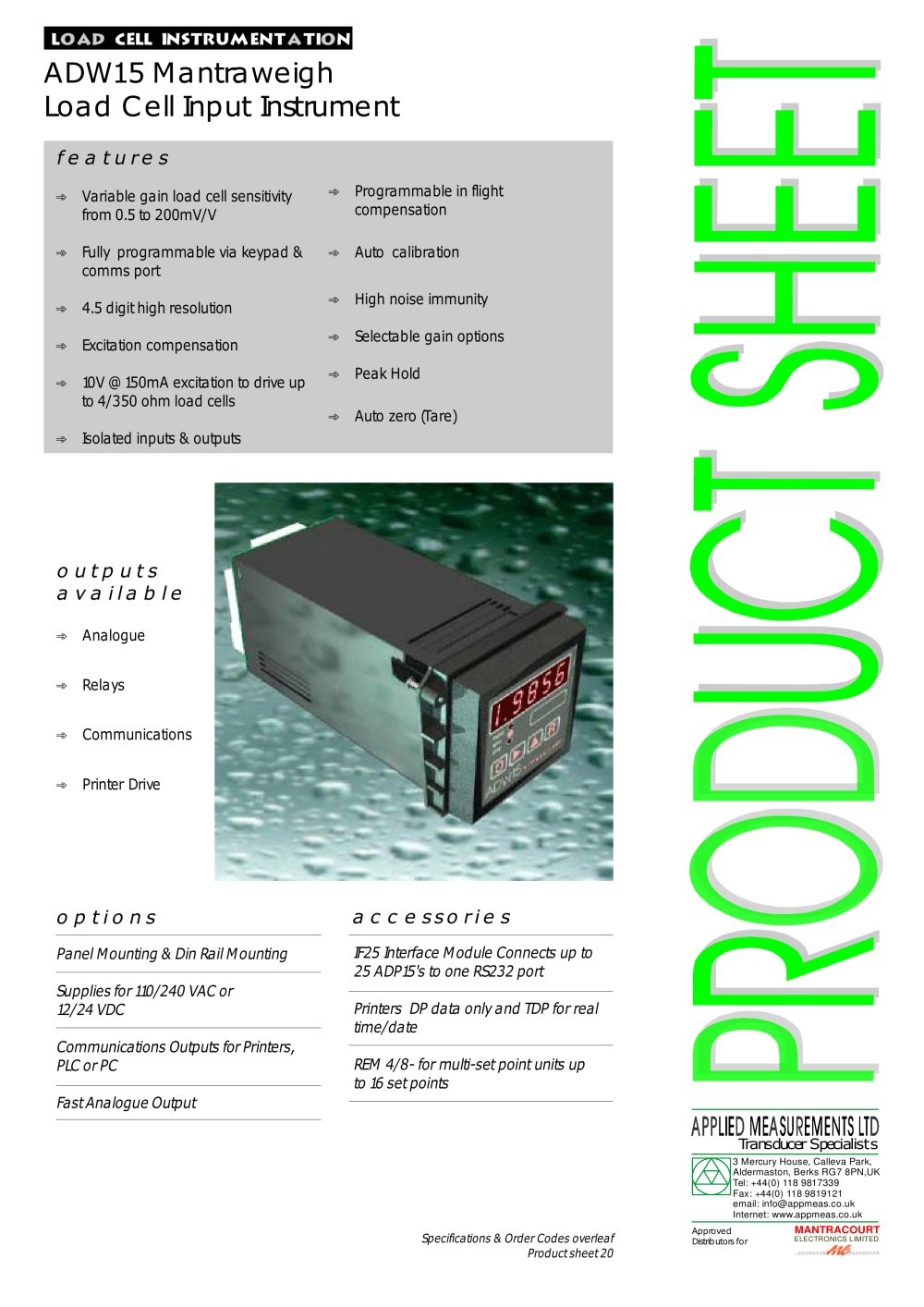

Panel Mounted Indicator - Strain Gauge Input ADW15-1

Variable gain load cell sensitivity from 0.5 to 200mV/V Programmable in flight compensation Fully programmable via keypad & comms port Auto calibration 4.5 digit high resolution High noise immunity Excitation compensation Selectable gain options 10V @ 150mA excitation to drive up to 4/350 ohm load cells Peak Hold Auto zero (Tare) Isolated inputs & outputs > Analogue Relays Communications Printer Drive > Panel Mounting & Din Rail MountingSupplies for 110/240 VAC or12/24 VDCCommunications Outputs for Printers,PLC or PCFast Analogue Output IF25 Interface Module Connects up to25 ADP15's to one RS232 portPrinters DP data only and TDP for realtime/dateREM 4/8- for multi-set point units upto 16 set points > Transducer S p ecialists 3 Mercury House, Calleva Park,Aldermaston, Berks RG7 8PN,UK Tel: +44(0) 118 9817339Fax:+44(0)1189819121email: [email protected]: www.appmeas.co.uk Specifications & Order Codes overleafProduct sheet 20 ApprovedDistributors for MANTRACOURT ELECTRONICS LIMITED size="-5">

Open the catalog to page 1

Panel Mounted Indicator - Strain Gauge Input ADW15-2

Calibration Automatic digital by use of keypad and 1 (or 2) knownweights.Manual calibration can also be selected Excitation 10V d.c. nominal, 150mA maximum Compensation By +/- sense wires to compensate for cable, connectionvolt drops and any variation in 10V supply Auto Tare By pressing keys '>' and then 'R', display will zero. Auto tare value can also be viewed and manually changed if required. Auto tare value is retained on powerdown Accuracy 90 days +/- 0.08% of reading +/- 0.05% of FSD typical Drift 0.002%C typical @ 2.5mV/V Sensitivity Preset via DIL switches between 0.5 to 200mV/V > D C...

Open the catalog to page 2
