Pancake/Low Profile Load Cell Bi-directional

Pancake/Low Profile Load Cell Bi-directional

Product catalog summary

Description: The DSCK series is a low profile pancake type load cell designed for both weighing and force measurement applications. It is constructed from tool steel with a hardened painted finish, ensuring robustness in harsh environmental conditions. The load cell features welded diaphragms and is hermetically sealed with inert gas, providing excellent resistance to extraneous forces such as bending, side, and torsional forces. It is widely used in applications like vessel and silo weighing, platform/deck jacking systems, airframe test rigs, and material testing machines.

Specifications:

Capacities range from 2 to 20 tonnes.
Low profile shear design with hermetic sealing to IP67 standards.
Robust welded construction with excellent rejection of extraneous forces.
3-year warranty with options for other ranges and equivalents to other manufacturers.
Full range of mounting options including fatigue rated and double bridge versions.

Characteristics:

Rated Capacities: 2, 3, 5, 10, 20 tonnes.
Rated Output: 3.0 mV/V ±0.3%.
Non-Linearity, Hysteresis, Repeatability: <0.05% of Rated Output.
Zero Balance: <1.0% of Rated Output.
Temperature Range: Operating -20 to +80°C, Compensated -10 to +70°C.
Temperature Effect: On Output and Zero <0.003% per °C.
Safe Overload: 150% of Rated Capacity, Ultimate Overload: 300%.
Excitation: Recommended 10 Volts AC or DC, Maximum 20 Volts.
Input Impedance: 700 Ohms ± 3.5, Output Impedance: 700 Ohms ± 5.
Insulation Impedance: >2000 Megaohms.
Deflection at Rated Capacity: <0.05 mm.
Construction: Painted Alloy Steel, Environmental Protection: IP67.
Cable: 3 Metre 4 Core Screened.

Dimensions: The load cell dimensions vary with capacity, with diameters and heights specified for each range. The weight ranges from 4 kg to 12 kg depending on the model.

Contact Information: Applied Measurements Limited, 3 Mercury House, Calleva Park, Aldermaston, Berkshire, RG7 8PN, UK. Tel: (+44) 0118 981 7339, Fax: (+44) 0118 981 9121, Email: [email protected], Website: www.appmeas.co.uk.

Catalog excerpts

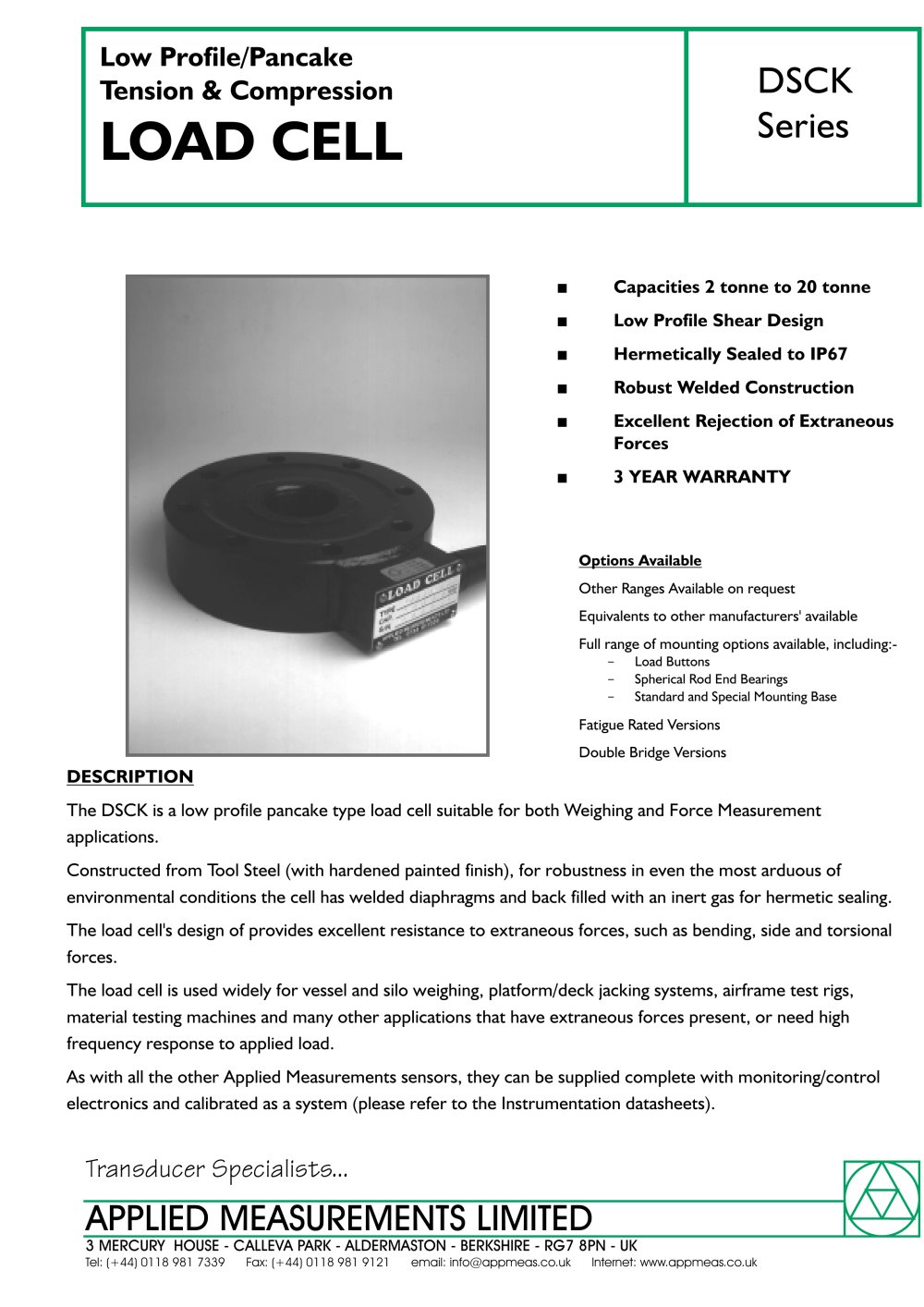

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:16.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } Low Profile/Pancake I Tension & Compression I DSCK LOAD CELL Sries ■ Capacities 2 tonne to 20 tonne ■ Low Profile Shear Design ■ Hermetically Sealed to IP67 ■ Robust Welded Construction ■ Excellent Rejection of Extraneous Forces ■ 3 YEAR WARRANTY Options Available Other Ranges Available on request Equivalents to other manufacturers' available Full range of mounting options available, including:- - Load Buttons - Spherical Rod End Bearings - Standard and Special Mounting Base Fatigue Rated Versions Double Bridge Versions DESCRIPTION The DSCK is a low profile pancake type load cell suitable for both Weighing and Force Measurement applications. Constructed from Tool Steel (with hardened painted finish), for robustness in even the most arduous of environmental conditions the cell has welded diaphragms and back filled with an inert gas for hermetic sealing. The load cell's design of provides excellent resistance to extraneous forces, such as bending, side and torsional forces. The load cell is used widely for vessel and silo weighing, platform/deck jacking systems, airframe test rigs, material testing machines and many other applications that have extraneous forces present, or need high frequency response to applied load. As with all the other Applied Measurements sensors, they can be supplied complete with monitoring/control electronics and calibrated as a system (please refer to the Instrumentation datasheets). Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: [email protected] Internet: www.appmeas.co.uk

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } .font8 { font:21.00pt "Arial", sans-serif; } .font9 { font:21.70pt "Arial", sans-serif; } .font10 { font:19.00pt "Arial Black", sans-serif; } .font11 { font:4.00pt "Microsoft Sans Serif", sans-serif;...

Open the catalog to page 2
