Miniature LVDT AML/M

Miniature LVDT AML/M

Product catalog summary

Overview

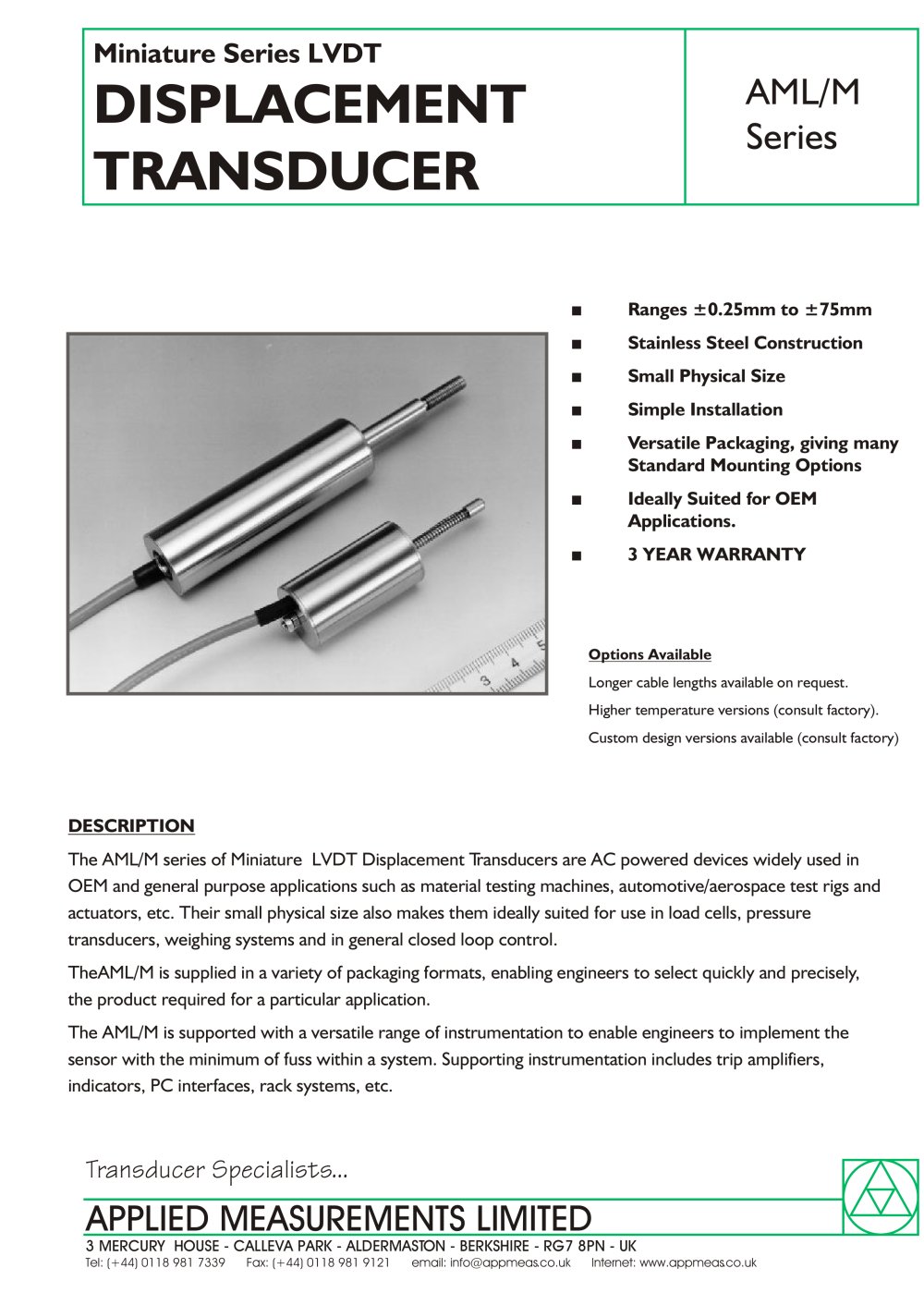

The AML/M series of Miniature LVDT Displacement Transducers are AC powered devices designed for OEM and general-purpose applications, including material testing machines, automotive/aerospace test rigs, and actuators. Their compact size makes them suitable for load cells, pressure transducers, weighing systems, and closed-loop control systems.

Specifications
- Stroke Measurement Range: ±0.25mm to ±75mm
- Construction: Stainless Steel
- Operating Temperature: Standard -30 to +85°C, Optional -30 to +150°C
- Signal Output: 2 to 5Vrms @ 1 to 5kHz
- Non-Linearity: <0.50%
- Repeatability: <0.10%
- Vibration Resistance: 20g up to 2kHz
- Shock Resistance: 1000g for 10 milliseconds
- Environmental Sealing: IP40

Features
- Small physical size for easy installation
- Versatile packaging with standard mounting options
- Supported by a range of instrumentation including trip amplifiers, indicators, PC interfaces, and rack systems
- 3-year warranty

Options
- Longer cable lengths available upon request
- Higher temperature versions available
- Custom design versions available

Mounting Options
- Core/Extension Standard
- Option X: Plain Core & Extension
- Option R: Sprung Loaded Core & Extension

Contact Information
Applied Measurements Limited, 3 Mercury House, Calleva Park, Aldermaston, Berkshire, RG7 8PN, UK
Tel: (+44) 0118 981 7339
Email: [email protected]
Website: www.appmeas.co.uk

Catalog excerpts

CHARACTERISTICS AML/M AML/MJ UNITS Stroke Measurement Range: 0.25, ѱ0.5, 1, ѱ2.5, 5, ѱ12.5, 25, ѱ50, 75 millimetres Signal Output: See Table Below > No. of Wires 64 Supply Voltage: 2 to 5Vrms @ 1 to 5kHz > Non-Linearity: <0.50 ѱ% Stroke Range Repeatability: > <0.10 % Stroke Range Output Bandwidth: 180 Hz > Operating T emperature Range: -30 to +85ѰC Standard (-30 to +150C Optional) аC Zero T emperature Coefficient: <0.020 %Stroke Range/ѰC > Span T emperature Coefficient: <0.020 %Stroke Range/ѰC Vibration Resistance: 20g up to 2kHz Shock Resistance: 1000g for 10milliseconds > Construction Material: Stainless Steel (core and case) Connections: 2m screened cable exiting axially, N/A on spring-loaded (radial exit optional - request option C) Environmental Sealing: IP40 >
