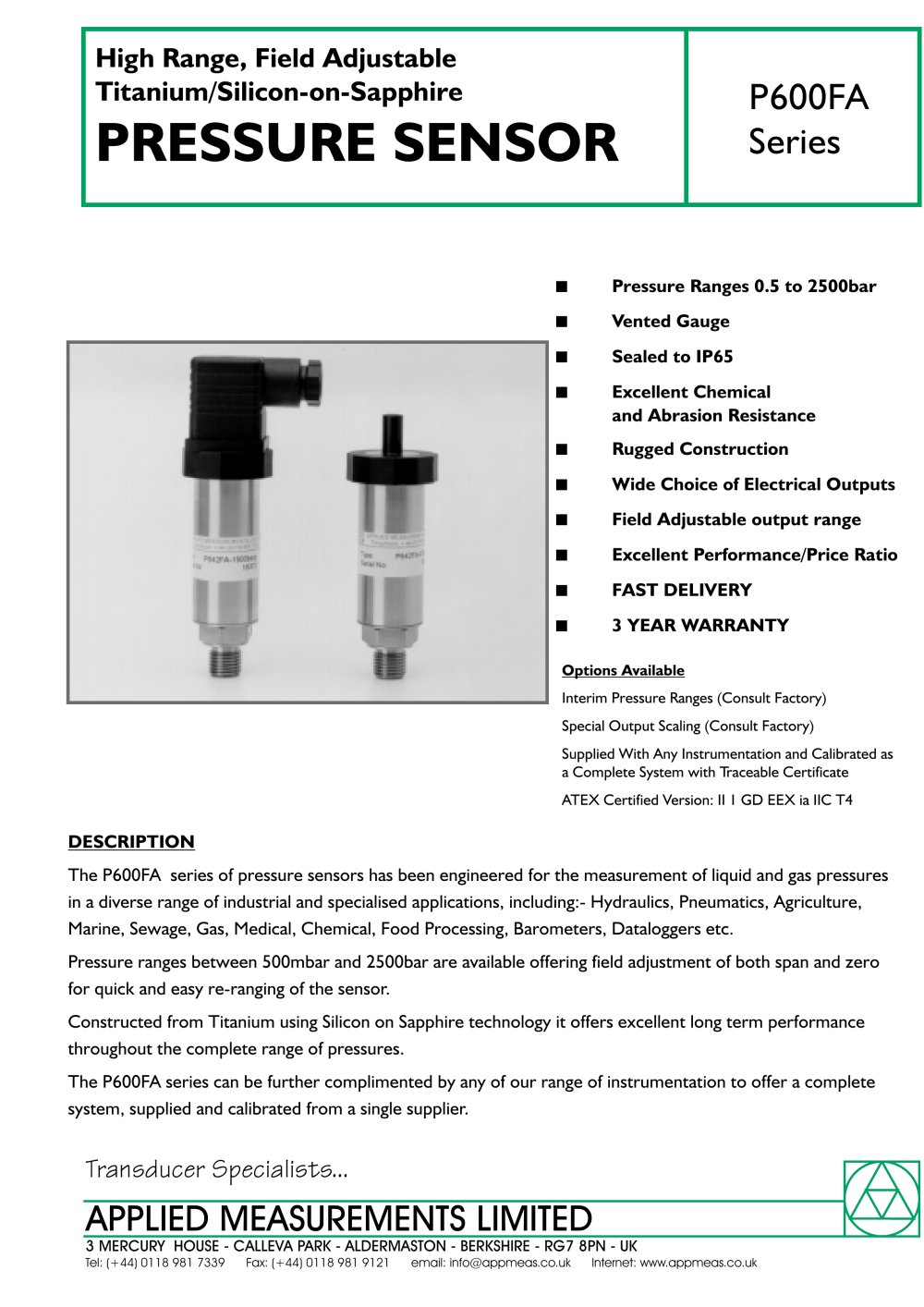

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:16.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } .font8 { font:34.00pt "Arial", sans-serif; } High Range, Field Adjustable Titanium/Silicon-on-Sapphire I P600FA PRESSURE SENSOR Sries Pressure Ranges 0.5 to 2500bar Vented Gauge ■ Sealed to IP65 Excellent Chemical and Abrasion Resistance Rugged Construction Wide Choice of Electrical Outputs Field Adjustable output range Excellent Performance/Price Ratio FAST DELIVERY 3 YEAR WARRANTY s Available ■ ■ ■ ■ ■ ■ ■ Option Interim Pressure Ranges (Consult Factory) Spcial Output Scaling (Consult Factory) Supplied With Any Instrumentation and Calibrated as a Complete System with Traceable Certificate ATEX Certified Version: II 1 GD EEX ia IIC T4 DESCRIPTION The P600FA series of pressure sensors has been engineered for the measurement of liquid and gas pressures in a diverse range of industrial and specialised applications, including:- Hydraulics, Pneumatics, Agriculture, Marine, Sewage, Gas, Medical, Chemical, Food Processing, Barometers, Dataloggers etc. Pressure ranges between 500mbar and 2500bar are available offering field adjustment of both span and zero for quick and easy re-ranging of the sensor. Constructed from Titanium using Silicon on Sapphire technology it offers excellent long term performance throughout the complete range of pressures. The P600FA series can be further complimented by any of our range of instrumentation to offer a complete system, supplied and calibrated from a single supplier. Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: info@appmeas.co.uk Internet: www.appmeas.co.uk

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } .font5 { font:17.00pt "Arial", sans-serif; } .font6 { font:34.00pt "Arial", sans-serif; } .font7 { font:12.00pt "Georgia", serif; } SPECIFICATION CHARACTERISTICS P610FA P605FA P6010IA M4HA UNITS Pressure Ranges: 0.5, 1, 1.6,2.5,4, 6, 10, 16,25,40,60 100, 160, 250,400, 600, 1000, 1500, 2000, 2500 bar Rated Output: 0-5V...

Open the catalog to page 2
