Description: The P9911 submersible depth sensor is a 2-wire, 4-20mA device designed for flexibility and ease of use. It features a two-piece stainless steel body with a 5:1 turndown capability, accessible DIL switches, and zero & span potentiometers. The sensor is sealed with an 'O' Ring and an IP68 polyurethane cable outlet, ensuring waterproof integrity up to 100mWG. It is protected against lightning strikes and comes with a 3-year warranty.

Specifications:

Pressure Ranges: 2mWG to 100mWG
Safe Overpressure: 150% of pressure range
Burst Pressure: 300% of pressure range
Supply Voltage: HV (20-50V DC), LV (9-32V DC)
Load Driving Capacity: 1500 Ohms (HV), 1000 Ohms (LV)
Output Current: 4.0 to 20.0 mA
Accuracy: <0.25% of pressure range
Temperature Range: Operating -10 to +80°C, Compensated 0 to +60°C
Temperature Effect: <0.008% of pressure range/°C on output, <0.015% of applied pressure/°C on zero
Environmental Protection: IP68 up to 100mWG
Weight: 600 grams (excluding cable)
Construction: Stainless Steel

Features:

Field Adjustable (5:1 turndown)
Lightning Protection
Excellent Long Term Stability
Temperature Compensated
Options for special ranging, alternative body materials, extended temperature ranges, different cable lengths, and higher accuracy versions

Ordering Information: The part number is coded to assist with ordering, e.g., P9911 - 5mWG - C10 - LV - N, where LV denotes a 9-32V DC supply voltage and N denotes a nose cone fitting.

Wiring Schematic: The sensor includes a resistive load and is designed for process measurement instrumentation.

Catalog excerpts

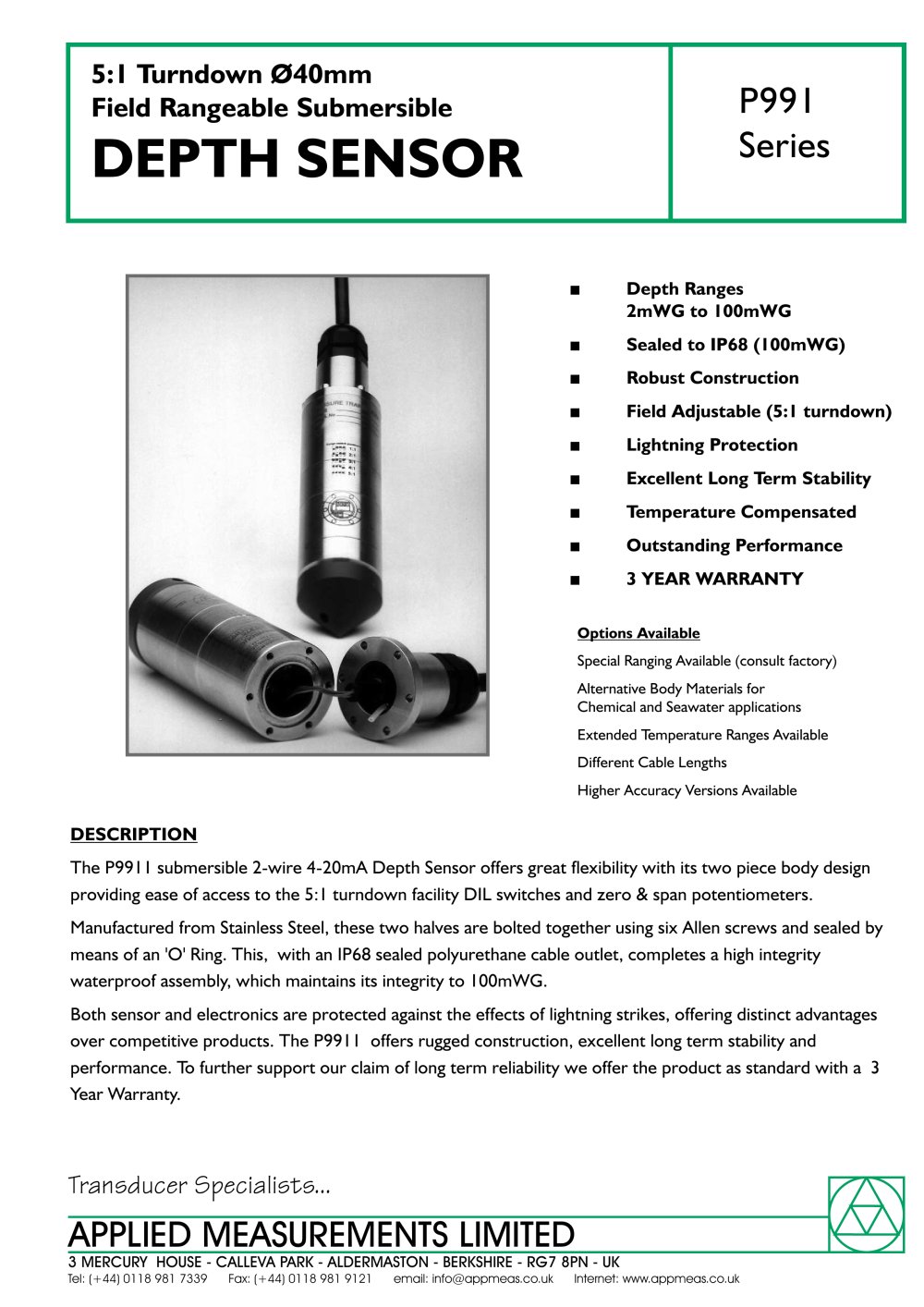

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:18.00pt "Arial", sans-serif; } .font7 { font:34.00pt "Arial", sans-serif; } 5:1 Turndown 040mm Field Rangeable Submersible DEPTH SENSOR P991 Series ■ Depth Ranges 2mWG to 100mWG ■ Sealed to IP68 (100mWG) ■ Robust Construction ■ Field Adjustable (5:1 turndown) ■ Lightning Protection ■ Excellent Long Term Stability ■ Temperature Compensated ■ Outstanding Performance ■ 3 YEAR WARRANTY Options Available Spcial Ranging Available (consult factory) Alternative Body Materials for Chemical and Seawater applications Extended Temperature Ranges Available Different Cable Lengths Higher Accuracy Versions Available DESCRIPTION The P9911 submersible 2-wire 4-20mA Depth Sensor offers great flexibility with its two piece body design providing ease of access to the 5:1 turndown facility DIL switches and zero & span potentiometers. Manufactured from Stainless Steel, these two halves are bolted together using six Allen screws and sealed by means of an 'O' Ring. This, with an IP68 sealed polyurethane cable outlet, completes a high integrity waterproof assembly, which maintains its integrity to 100mWG. Both sensor and electronics are protected against the effects of lightning strikes, offering distinct advantages over competitive products. The P9911 offers rugged construction, excellent long term stability and performance. To further support our claim of long term reliability we offer the product as standard with a 3 Year Warranty. Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: [email protected] Internet: www.appmeas.co.uk
