Column Load Cell - Compression

Column Load Cell - Compression
2Pages

Catalog excerpts

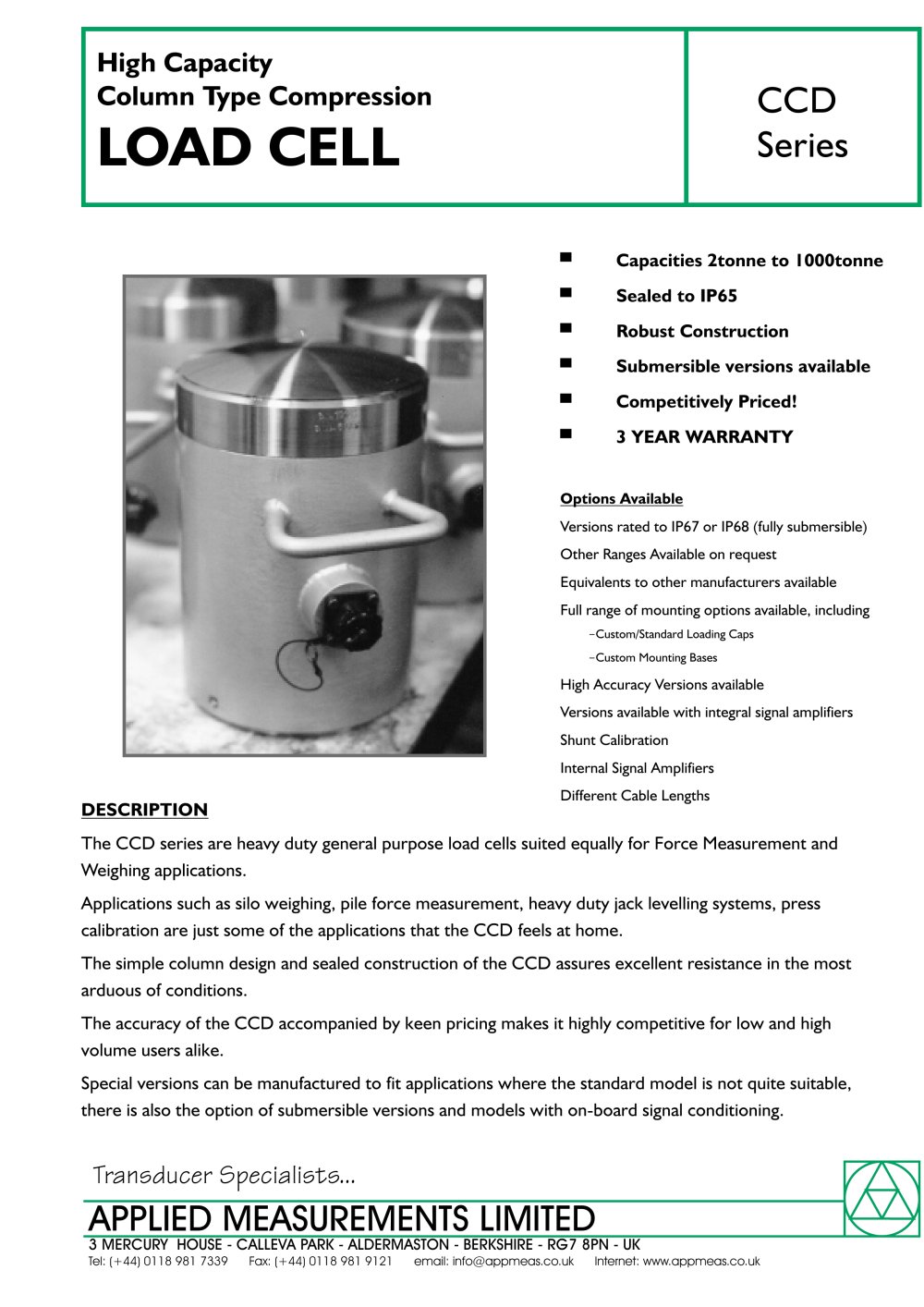

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:16.00pt "Arial", sans-serif; } .font7 { font:19.00pt "Arial", sans-serif; } .font8 { font:34.00pt "Arial", sans-serif; } High Capacity Column Type Compression I CCD LOAD CELL Sries Capacities 2tonne to 1000tonne Sealed to IP65 Robust Construction Submersible versions available Competitively Priced! 3 YEAR WARRANTY Options Available Versions rated to IP67 or IP68 (fully submersible) Other Ranges Available on request Equivalents to other manufacturers available Full range of mounting options available, including -Custom/Standard Loading Caps -Custom Mounting Bases High Accuracy Versions available Versions available with integral signal amplifiers Shunt Calibration Internal Signal Amplifiers Different Cable Lengths DESCRIPTION The CCD series are heavy duty general purpose load cells suited equally for Force Measurement and Weighing applications. Applications such as silo weighing, pile force measurement, heavy duty jack levelling systems, press calibration are just some of the applications that the CCD feels at home. The simple column design and sealed construction of the CCD assures excellent resistance in the most arduous of conditions. The accuracy of the CCD accompanied by keen pricing makes it highly competitive for low and high volume users alike. Special versions can be manufactured to fit applications where the standard model is not quite suitable, there is also the option of submersible versions and models with on-board signal conditioning. Transducer Specialists... APPLIED MEASUREMENTS LIMITED 3 MERCURY HOUSE - CALLEVA PARK - ALDERMASTON - BERKSHIRE - RG7 8PN - UK Tel: (+44) 0118 981 7339 Fax: (+44) 0118 981 9121 email: info@appmeas.co.uk Internet: www.appmeas.co.uk

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:6.40pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:19.00pt "Arial", sans-serif; } .font7 { font:34.00pt "Arial", sans-serif; } .font8 { font:9.00pt "Trebuchet MS", sans-serif; } SPECIFICATION Wiring Schematic Diagram l l--hve Excitation iC > ■ +ve Output 3 Output CHARACTERISTICS CCDT CCDG UNITS Rated Capacities: 2,5,...

Open the catalog to page 2
