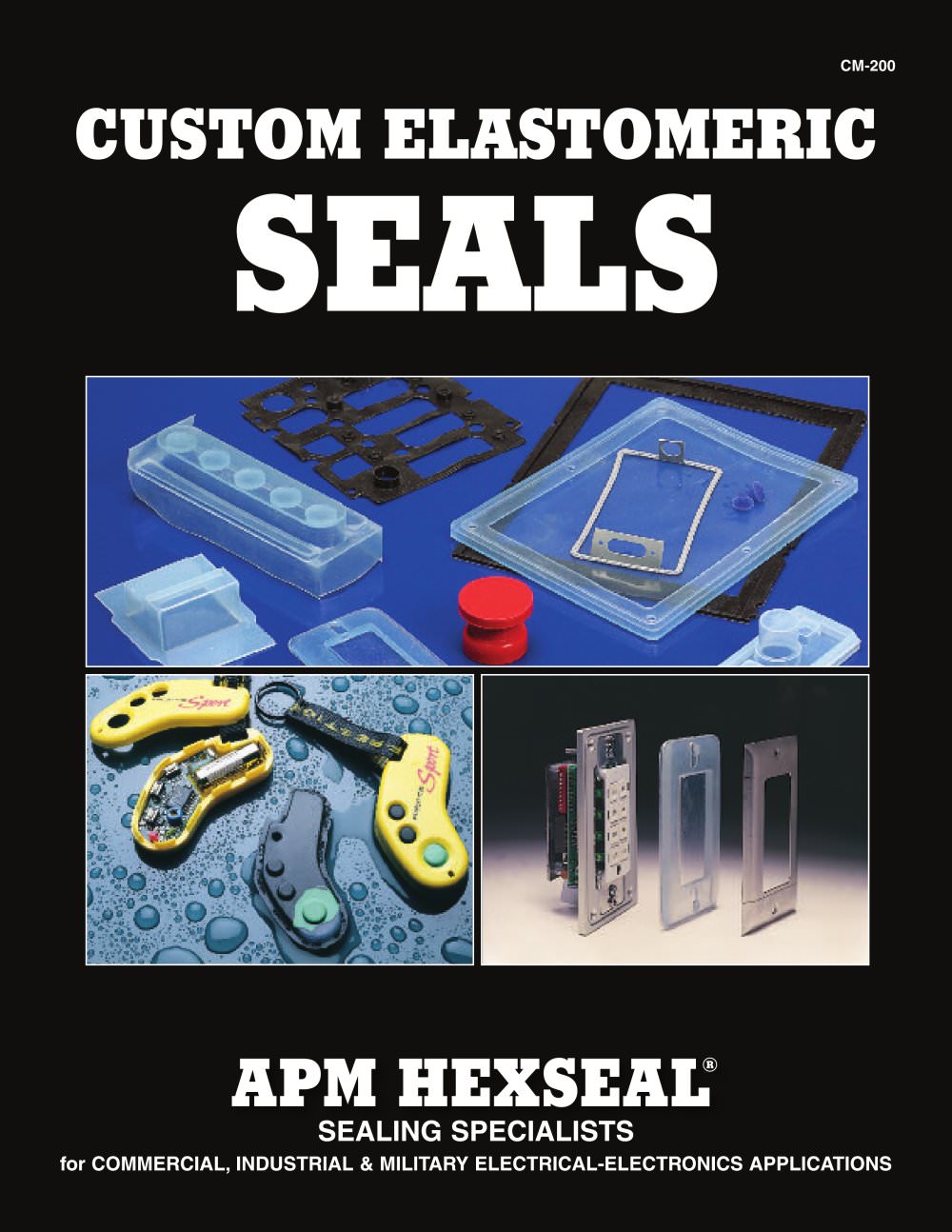

CM-200 CUSTOM ELASTOMERIC SEALS SEALING SPECIALISTS for COMMERCIAL, INDUSTRIAL & MILITARY ELECTRICAL-ELECTRONICS APPLICATIONS APM HEXSEAL®

APM CUSTOM ELASTOMERIC MOLDING CAPABILITY IS ALL ABOUT SEALING FAST-TRACK PROTOTYPING TO PRODUCTION — FOUR METHODS TO CHOOSE FROM Method 1: Send us your part and we will analyze it and prepare a drawing for your approval, to be followed up with a quotation. Or… Method 2: Send us your part and either hard copy drawing or any of the following digital formats: .pdf, .dwg, or .dxf for evaluation and quote. Or… Method 3: Send us the end product that requires a custom seal.We will design a seal, submit it to you for approval, followed up with a quotation. Or… Method 4: Any combination of the...

Product Manufacturing Upon your approval of final prototypes, our in-house tooling group will fabricate production molds and economically produce your high-quality custom seal with either heat transfer, injection or LIM molding technologies. APM has solved tough problems with designs proven to work. A sampling of our custom sealing solutions are presented in this brochure.We trust they will provide an overview of our design competence and custom capabilities.We invite your inquiry and look forward to being of service. Tooling and Prototype Development Our in-house tool designers will...

Application: Remote Automotive Keyless Entry Control Sealing Problem: • Seal the perimeter between mating top and bottom component covers. • Seal and color-code three printed circuit board-mounted pushbutton switches. • Provide a transparent viewing window for monitoring the PCB-mounted, battery-status LED. • Render the entire unit submersible. APM Design Solution: A single-piece tri-color (black, green and clear) silicone rubber seal, geometrically- contoured to the control’s housing and internal electronic components. The seal, housing and circuit board are held together by one of APM...

Application: Wherever Electrical/Electronics Equipment Has To Be Sealed From Hostile Environments Application: Lighted Pushbuttons for Military Aircraft Sealing Problem: • Prevent penetration of moisture from fog or salt spray. • Tolerate kerosene, alcohol and light detergents. • Ensure pushbutton actuator remains attached to switch body under highimpact shock of up to 1,500 G’s. • Permit actuation of pushbutton. • Permit viewing of lighted indicator and switch legend. APM Design Solution: A snap-on, single-piece bezel seal consisting of a custom stainless steel frame over which is molded a...
