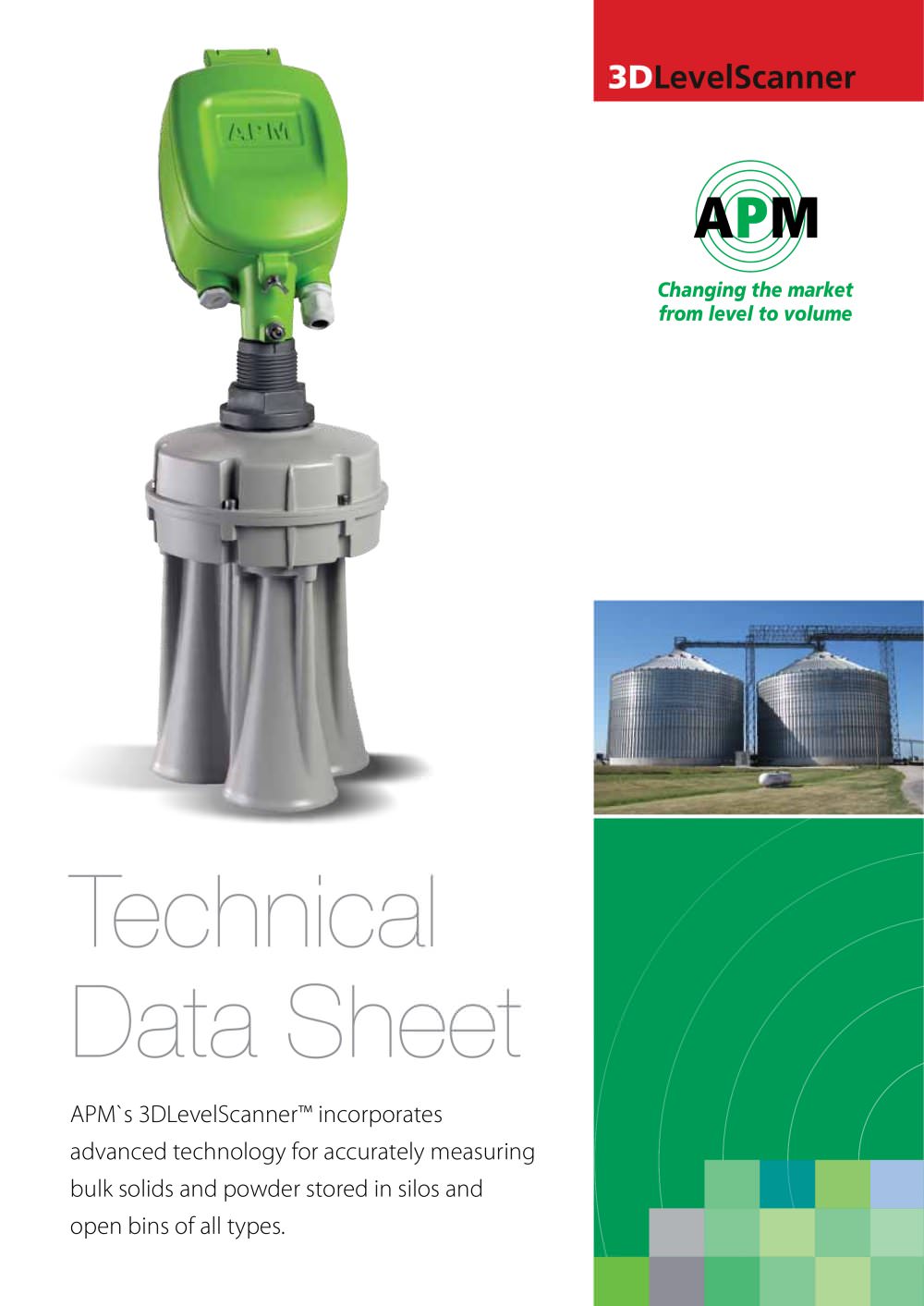

3DLevelScanner Changing the market from level to volume Technical Data Sheet APM`s 3DLevelScanner™ incorporates advanced technology for accurately measuring bulk solids and powder stored in silos and open bins of all types. 1

Overview Theory Of Operation The APM 3DLevelScanner is the only device presently available that delivers accurate measurement of bulk solids and powders - regardless of the type of material or product characteristics, type and size of storage silo, bin or container, and harshness of the storage environment. The 3DLevelScanner employs an array of three antennas to transmit low frequency pulses and to receive echoes of the pulses from the contents of the silo, bin or other container. Using three antennas the unit measures not only the time/distance of each echo but also its direction. The...

3DLevelScanner Technical Data Materials, non-wetted parts Housing Painted aluminum die casting Inspection window in housing Polycarbonate Antenna Painted aluminum die casting / ETFE Weight 3DLevelScanner 5.6 Kg (12.35 lb) Output variable Output signal Active 4...20mA/HART/RS485/Modbus Resolution 10 µA Fault signal Current output unchanged, 22 mA, >3.6 mA (adjustable) Current limitation 22 mA Maximal Load 400 Ohm Communication Type RS485/Modbus/HART Ambient conditions Ambient, storage and transport temperature -40...85˚C (-40...+185˚F) Process conditions Vessel pressure -0.2...3 bar...

Technical Data Power supply – 4-wire instrument (Active) 4…20 mA / HART Supply voltage 18...32 VDC Power consumption max 1.5 W @ 24VDC Electrical protective measures Protection IP67 according to IEC 60529 Approvals ATEX ATEX II 1/2D, 2D, Ex ibD/iaD 20/21 T110˚C ATEX II 2G Ex ia/ib IIB T4 cFMus cFMus Intrinsically Safe CL I,II, DIV I, GP CDEFG NEPSI II 2G Ex ia/ib IIB T4 II 1/2D Ex ibD/iaD 20/21 T110°C CE EMC Emission EN 61326:1997 (class B) Susceptibility IEC / EN 61326:1997 + A1:1998 + A2:2001 + A3:2003 NSR (73/23/EWG) EN 61010-1:2001 FCC Conformity to part 15 of the FCC regulations FCC 47...

3DLevelScanner Electrical Connection General Requirements In hazardous areas you should take note of the appropriate regulations, conformity and type of approval certificates of the sensors and power supply units. When multiple scanners and/or 3DLinkPro are connected with the same power supply, the total power consumption should be taken into account. 4...20 mA/HART 4-wire Power supply and signal current are carried on two separate connection cables. The output signal is active, hence the PLC must be configured passive. Connection Cable RS485 cables should be shielded, twisted pair with 120...

3DLevelScanner Type S For solid applications M For solid applications with mapping capabilities MV For solid applications with mapping capabilities and visualization graphics tool Approvals XX Without DX ATEX II 1/2D, 2D, Ex ibD/iaD 20/21 T110˚C ATEX II 2G Ex ia/ib IIB T4 cFMus Intrinsically Safe CL I,II, DIV I, GP CDEFG NEPSI II 2G Ex ia/ib IIB T4 NEPSI II 1/2D Ex ibD/iaD 20/21 T110°C Material / Finish B With horn antenna @195mm/ALU C With horn antenna @195mm/ALU Teflon Coated Process connection GD Thread 1.93” - 8 UN Electronics V 4 ...20mA/HART – 4-wire/RS485/Modbus Cable entry M M20x1.5...
