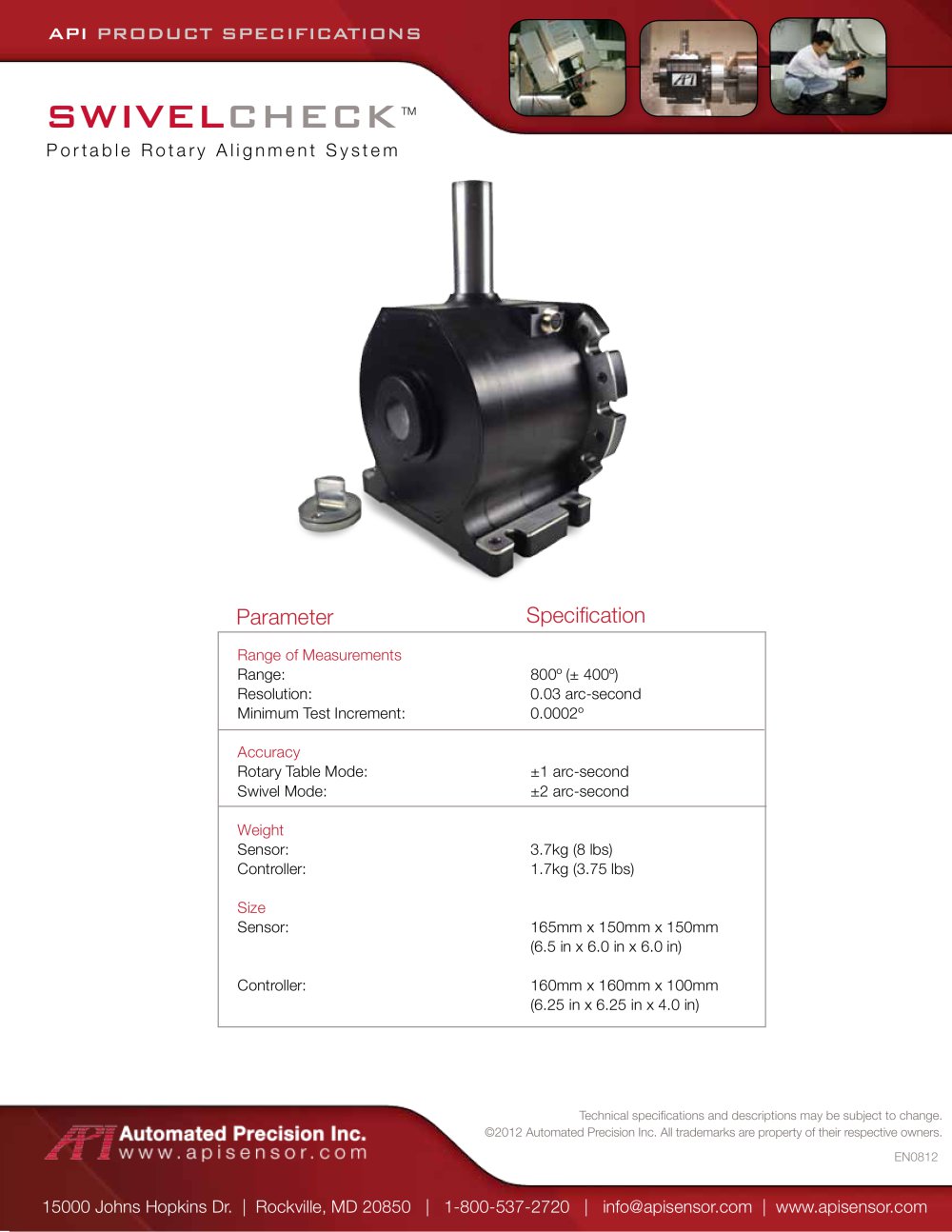

Swivelcheck Datasheet
1 / 1 PageView full catalog
Swivelcheck Datasheet
Product catalog summary
Product Overview: The document provides technical specifications for the SwivelCheck Portable Rotary Alignment System by Automated Precision Inc.
Range of Measurements: The system has a measurement range of 800º (± 400º) with a resolution of 0.03 arc-second and a minimum test increment of 0.0002º.
Accuracy: In Rotary Table Mode, the accuracy is ±1 arc-second, while in Swivel Mode, it is ±2 arc-second.
Weight: The sensor weighs 3.7kg (8 lbs), and the controller weighs 1.7kg (3.75 lbs).
Size: The sensor dimensions are 165mm x 150mm x 150mm (6.5 in x 6.0 in x 6.0 in), and the controller dimensions are 160mm x 160mm x 100mm (6.25 in x 6.25 in x 4.0 in).
See more
Catalog excerpts
Portable Rotary Alignment System Range of Measurements Range: Resolution: Minimum Test Increment: Accuracy Rotary Table Mode: Swivel Mode: Weight Sensor: Controller: Size Sensor: Technical specifications and descriptions may be subject to change. ©2012 Automated Precision Inc. All trademarks are property of their respective owners. EN0812 15000 Johns Hopkins Dr. | Rockville, MD 20850 | 1-800-537-2720 | [email protected] | www.apisensor.com
