Overview

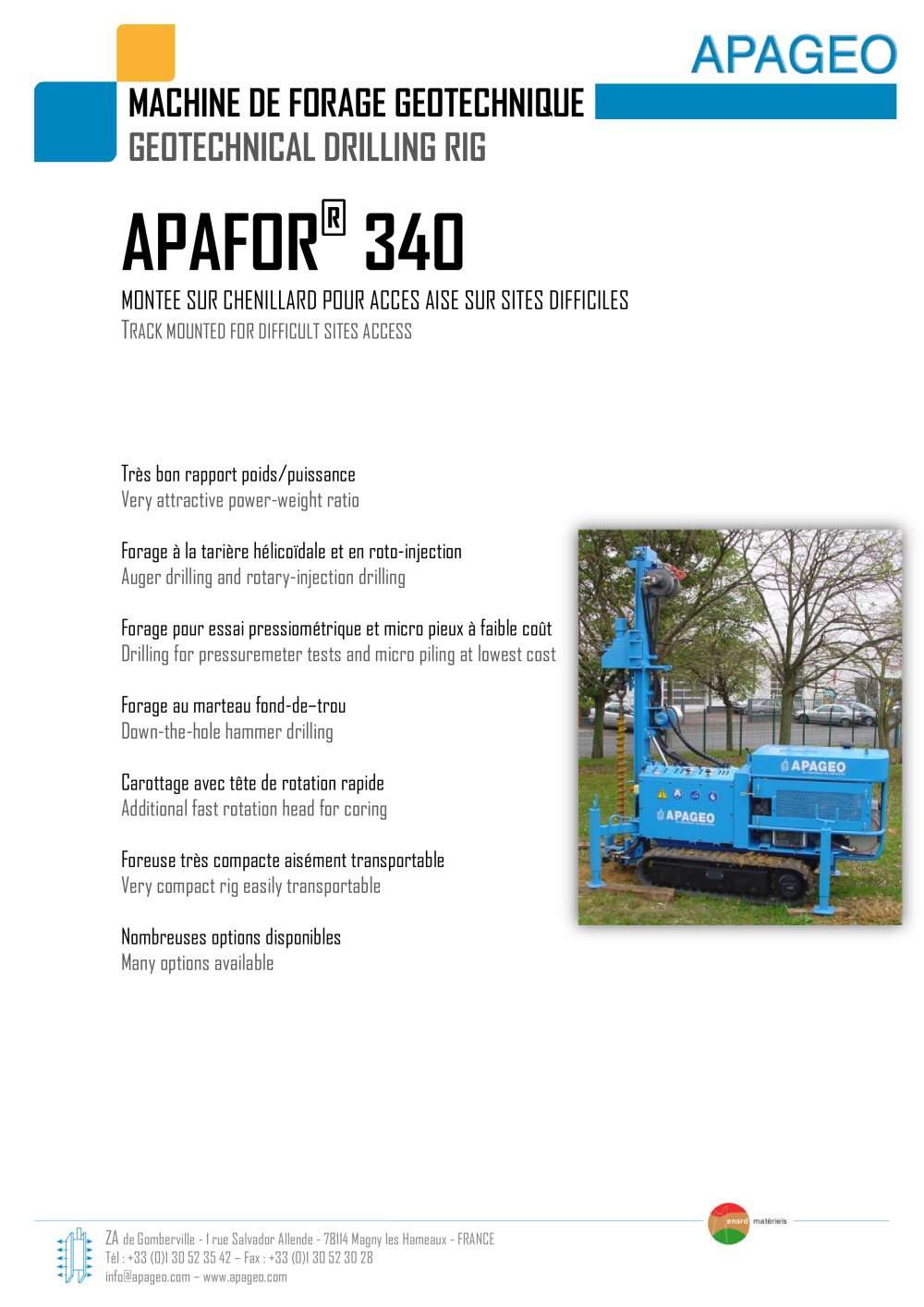

The document provides detailed specifications and features of the APAFOR® geotechnical drilling rig, designed for challenging site access with a track-mounted system. It highlights the rig's compactness, transportability, and versatility in various drilling applications.

General Specifications
The rig features a mechanically welded steel frame mounted on a hydraulic track with variable widths from 720 to 1060 mm. It includes three emergency stops and a safety wire, with options for remote control operation.

Technical Specifications

• Engine: 41 HP Deutz diesel engine
• Maximum Torque: 190 daNm at 86 rpm
• Rotation Speed: 0 to 86 rpm, with an optional fast rotation head for coring
• Translation Speed: 0 to 22 m/min
• Pull-up Force: 0 to 1,600 daN
• Hydraulic Controls: Proportional
• Stabilization: 4 mechanical or hydraulic feet
• Auger Guide: 140 mm and 63 mm diameters
• Mast Lengths: 1.95 m, 2.45 m, or 2.75 m
• Weight: 1,400 kg (basic model)
• Dimensions: L 2.8 x W 1.3 x H 2.9 m (drilling position)

Options

• Hydraulic rod clamp with 40 kN force
• Thermal engine injection pump on an independent skid with wheels
• Separate mast and control panel for indoor or confined space work
• Adaptation for heavy dynamic penetrometer (DPSH, SPT)
• Percussion hammer
• Prefitting for a drilling data logger
• Additional options available upon request

Applications
The rig is suitable for auger drilling, rotary-injection drilling, pressuremeter tests, down-the-hole hammer drilling, and coring with a fast rotation head. It is designed for micro piling at low costs and is easily transportable for use in difficult-to-access sites.
