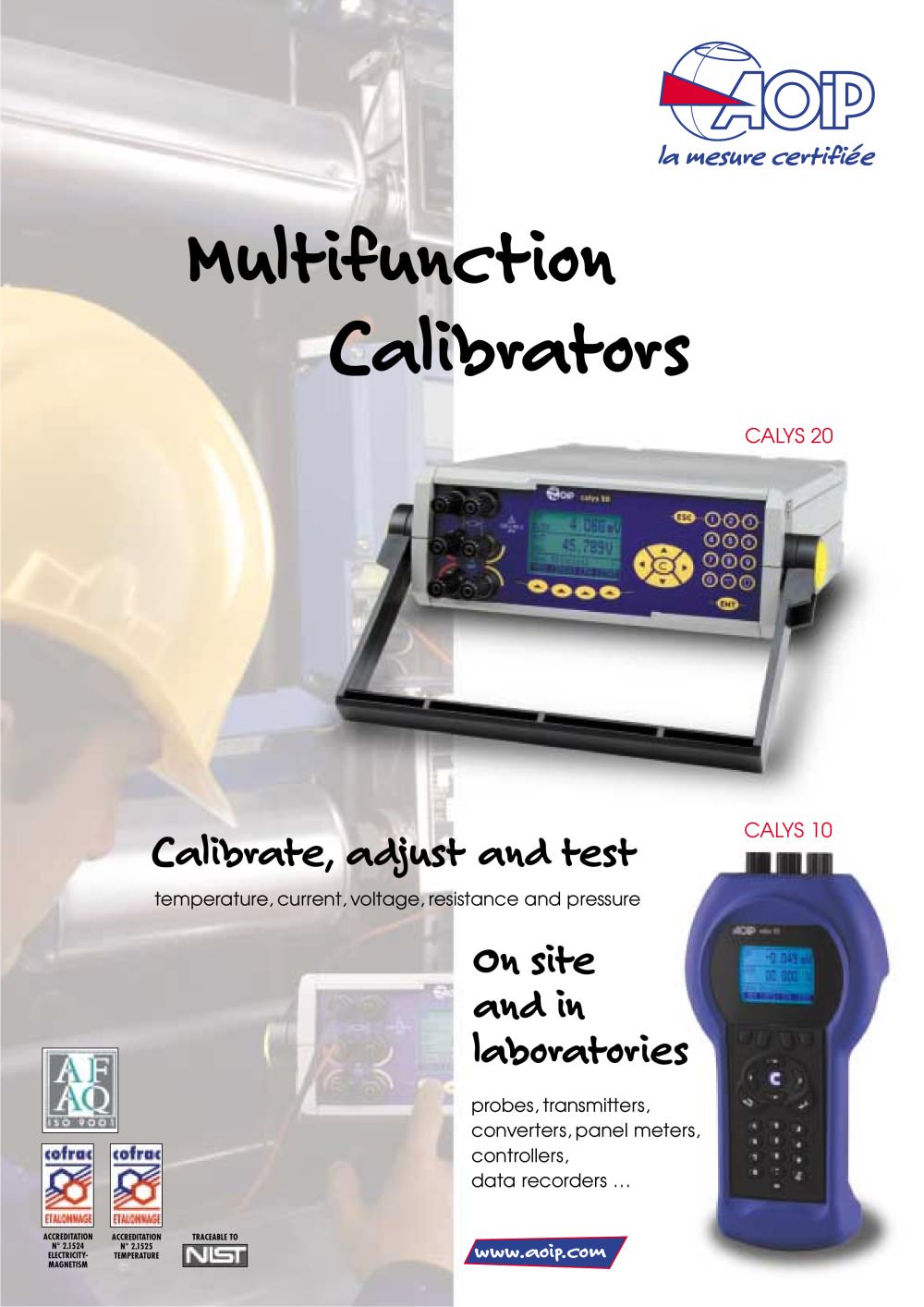

Process multifunction tester calibrator CALYS 20

Process multifunction tester calibrator CALYS 20

Product catalog summary

Overview: The document provides detailed information about the CALYS 10 and CALYS 20 multifunction calibrators, designed for calibrating, adjusting, and testing various parameters such as temperature, current, voltage, resistance, and pressure. These devices are suitable for use both on-site and in laboratories.

Specifications:

CALYS 10: Portable with a quick-charge built-in battery, offering 10 hours of working capability. It is lightweight and protected against shocks, making it ideal for on-site testing of probes, transmitters, panel meters, and data recorders.
CALYS 20: A benchtop instrument with a multiposition handle, suitable for integration into test benches. It supports calibration and verification operations with high accuracy, making it ideal for adjustments and daily controls.

Functions and Performance:

Simultaneous measurement and source capabilities.
Voltage measurement up to 60 V with 0.02% Rd accuracy.
Current measurement up to 60 mA with 0.02% Rd accuracy.
Resistance measurement up to 6 kΩ with 0.02% Rd accuracy.
Thermocouple and RTD measurements with high resolution and accuracy.
Pressure measurement from -1 to +1000 bar with 0.05% accuracy.

Data Management:

Automatic and manual data storage with up to 1000 data points memorized.
Data display options include curves, lists, and bar graphs with statistical treatments.
Direct reading on display or via PC downloads.

Calibration Features:

Automatic transmitter test programming with calibration report edition.
Ramp and step generation for process behavior testing.
Emission value memory for simulating curves.
Scaling for dynamic reading of process signals in various units.

Additional Features:

RS 232 communication port for data transfer.
Large documented screen with display of units and ranges.
Removable battery for CALYS 10 and power supply options for CALYS 20.

Ordering Information: The instruments are delivered with a carrying case, power leads, test leads with crocodile clips, and additional accessories for CALYS 10.

Applications: Suitable for automatic and semi-automatic testing and calibration of transmitters, controllers, panel meters, and pressure transmitters.
