AOIP
motor starter

motor starter

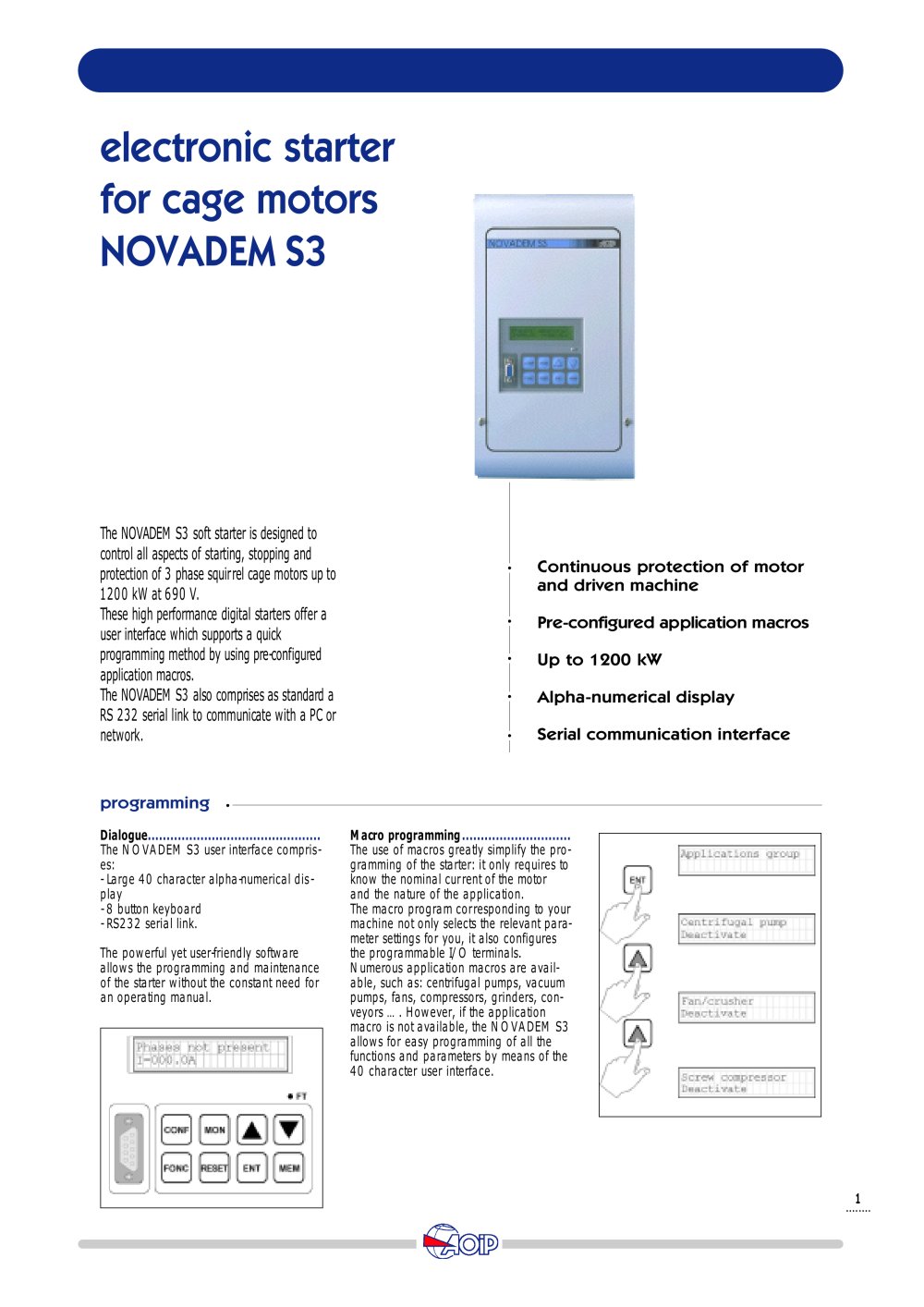

Product catalog summary

User Interface and Software: The NOVADEM S3 features a 40-character alphanumeric display, an 8-button keyboard, and an RS232 serial link. The software is user-friendly, allowing for programming and maintenance without constant reference to a manual.

Macro Programming: Macros simplify starter programming by requiring only the motor's nominal current and application nature. Pre-configured macros are available for various applications like pumps and conveyors. If a macro isn't available, the interface allows for easy manual programming.

Specifications: The NOVADEM S3 controls starting, stopping, and protection of 3-phase squirrel cage motors up to 1200 kW at 690 V. It includes 4 opto-isolated inputs, 3 relay outputs, and both analogue input and output, with additional options available.

Protection Features: The system provides continuous protection for the motor, network, and starter, including thermal, over/under voltage, and short circuit protections.

Diagnostics and Monitoring: The display shows machine status and real-time data, allowing dynamic tracking of various motor parameters. It also logs operational statistics and faults.

Control Functions: The starter supports various starting and stopping methods, energy-saving functions, and special motor operations. Operating conditions include a temperature range of -10 to +40°C, with specific power supply requirements.

Options and Accessories: Available options include a multi-option card, remote display, Modbus network interface, and software for graphical supervision and control.

Ordering Instructions: Specify the required control supply voltage and refer to tables for model selection. Options include additional cards and software.
