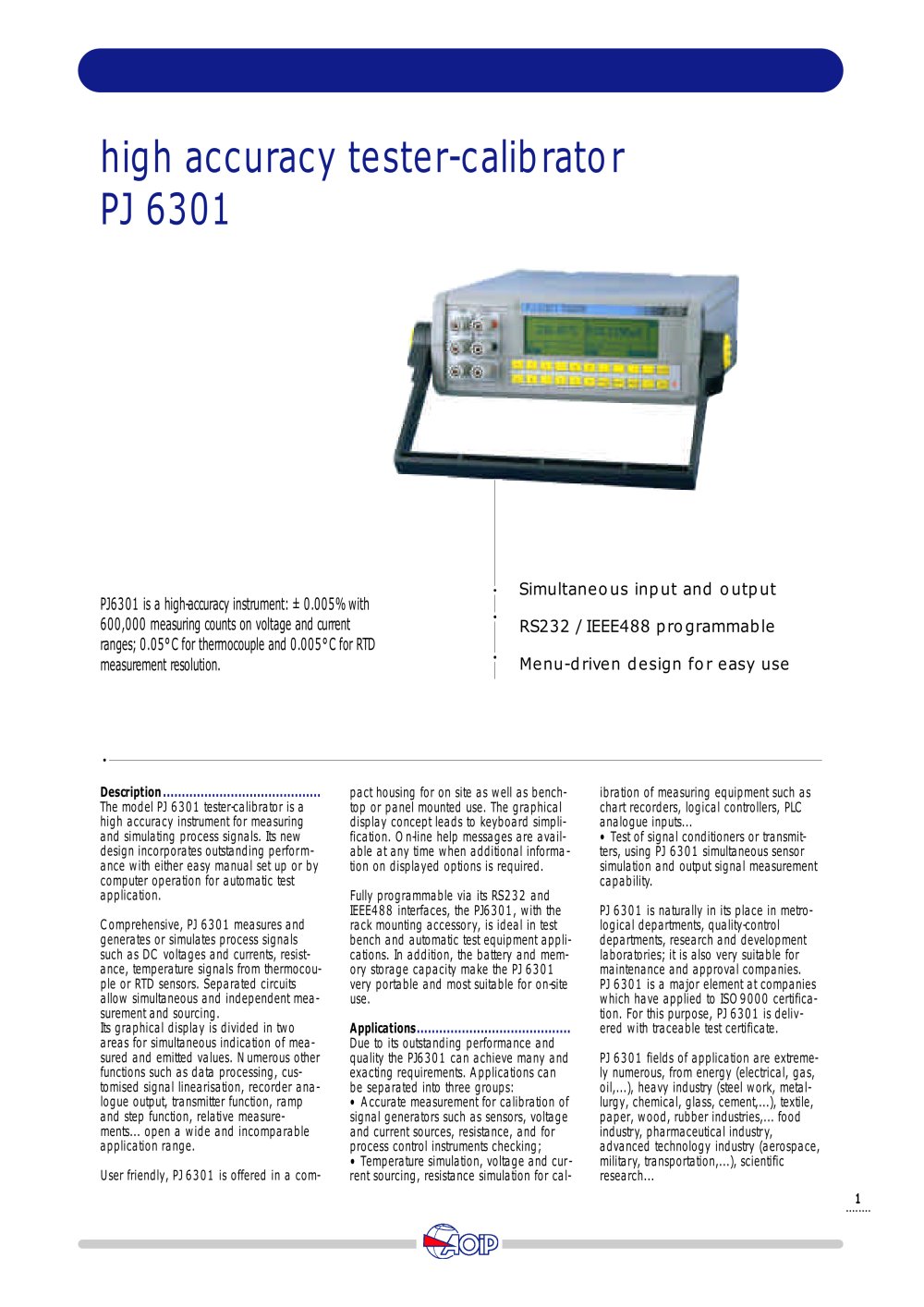

High Accuracy Tester - Calibrator PJ 6301

High Accuracy Tester - Calibrator PJ 6301

Product catalog summary

Overview: The PJ 6301 is a high-accuracy tester-calibrator designed for measuring and simulating process signals. It features simultaneous input and output capabilities, programmable interfaces, and a user-friendly menu-driven design. It offers high measurement resolution with ±0.005% accuracy for voltage and current, and precise temperature measurements for thermocouples and RTDs.

Specifications: The PJ 6301 supports measurements of DC voltages, currents, resistance, and temperature signals. It includes a graphical display for simultaneous indication of measured and emitted values, data processing, signal linearization, and various measurement functions. The device is compact and portable, suitable for on-site and bench-top use.

Applications: Ideal for calibration of signal generators, temperature simulation, and testing of signal conditioners or transmitters. It is used in metrological departments, quality-control, R&D laboratories, and industries such as energy, heavy industry, food, pharmaceutical, and advanced technology sectors.

Functions: Offers measurement and simulation modes, alarm thresholds, peak and valley memory, relative measurements, linearization by segments, digital filtering, and programmable recorder analogue output. Supports memory storage for configuration programs and measurement values.

Additional Features: Includes a synthesizer function for recalling emission values, scaling for output signal linearization, and a transmitter function for interfacing sensors to process control systems. Digital communications are facilitated through RS232 and IEEE 488-2 interfaces.

General Specifications: Equipped with a high-resolution display and designed for robust performance in various industrial applications.

Display and Interface: Features a graphical back-lit LCD display with an online menu, divided into two areas for generation and measurement operations. Supports 600,000 counts, clear units, icons, and messages.

Electrical Specifications: Common mode voltage is a maximum of 250 V between earth and terminals. Power supply ranges from 110 to 240 VAC, 50 to 400 Hz, with an optional battery and internal charger.

Operating Conditions: Reference temperature is 23 ± 1°C with a relative humidity of 45 to 75%. Nominal operating temperature is 0 to +50°C with 20 to 75% RH, and maximum operating range is -10 to +55°C with 10 to 80% RH.

Physical Characteristics: Housed in a bench-top ABS plastic case with rack and panel mount adapters. Dimensions are 225 x 88 x 310 mm, and it weighs between 2 to 3 kg depending on the hardware configuration.

Standards Compliance: Complies with standards for thermocouples and RTDs, including DIN-CEI 584-1, DIN 43710, DIN-CEI 751, and DIN 43760.

Traceability: Traceable to national and international standards, with a metrological laboratory accredited by COFRAC. Delivered with a checking report for ISO 9000, and a full calibration certificate is available upon request.

Sensors and Accessories: Various sensors, including traceable temperature probes and process sensors, are available as options. Accessories include a soft carrying case, RS 232 leads, IEEE 488 lead, panel and rack mounting kits, and optional calibration certificates and processing software.

Ordering Information: Available in different models, including PJ 6301-3 and PJ 6301-4 with a battery. Additional accessories and options can be requested.

Contact Information: For further inquiries, contact AOIP at B.P. 182 - F 91006 EVRY Cedex, Tel. 33 1 69 36 50 60, Fax 33 1 60 77 82 97, or Email: [email protected].
