Data Acquisition Systems DATALOG

Data Acquisition Systems DATALOG

Product catalog summary

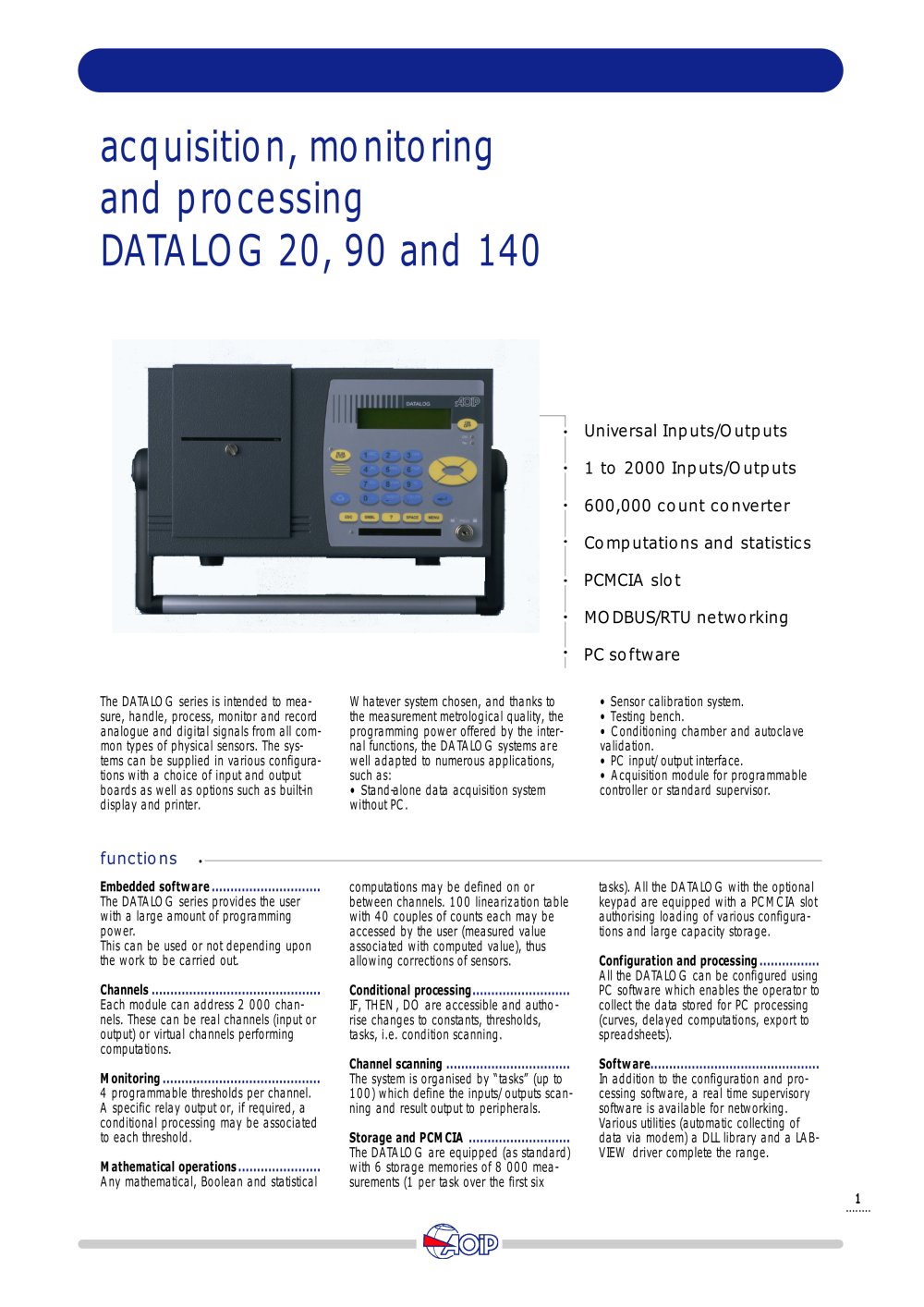

Overview: The DATALOG series is a comprehensive data acquisition system designed for measuring, processing, monitoring, and recording both analogue and digital signals from various sensors. It is highly programmable and adaptable for applications such as standalone data acquisition, sensor calibration, and testing.

Specifications: Each module can manage up to 2,000 channels, supporting a variety of inputs and outputs, including universal analogue and digital inputs. It features high-speed acquisition, a 600,000 count converter, and MODBUS/RTU networking capabilities.

Monitoring and Processing: The system offers four programmable thresholds per channel, with options for relay outputs or conditional processing. It supports mathematical, Boolean, and statistical computations, and allows for conditional processing using IF, THEN, DO statements.

Storage and Configuration: Standard models include six storage memories for up to 8,000 measurements each, with a PCMCIA slot for additional storage. Configuration and data processing are managed via PC software, supporting real-time supervisory control and networking.

Input/Output Boards: The system includes various input boards for specific measurement types, such as DC/AC voltages, currents, resistance, RTDs, thermocouples, and strain gauges.

Performance and Accuracy: The system ensures high accuracy and resolution across different measurement ranges and speeds, with features like temperature compensation and repeatability between channels.

Applications: Suitable for standalone data acquisition, sensor calibration, testing benches, conditioning chamber validation, and as an interface for PCs or programmable controllers.

Thermocouples: Details temperature ranges and uncertainties for different types, with reference junction compensation modes and linearization according to IEC Publication 584-1.

Strain Gauges: Covers configurations for full, half, and quarter bridges, with measurement ranges, uncertainties, and permissible voltages.

Digital Input Board (AN 5886): Describes pulse counting, frequency measurement capabilities, input voltage levels, insulation, and counter input specifications.

Electrotechnical Input Boards (AN 6001 & AN 6002): Measures electrical parameters in single or three-phase systems, detailing continuous and triggered modes, uncertainties, and high scanning rates.

High-Speed Acquisition Input Board (ATC006): Specifies acquisition capabilities, storage options, and communication interfaces, including trigger inputs and measurement resolution.

Analogue Output Board (AN 5888): Describes digital-to-analogue conversion capabilities and software support for data acquisition and processing.

Dry Relay Output Board (AN 5887): Outlines relay capacity, control options, and communication interfaces for system integration and remote control.

Communication Interfaces: Includes RS 232 and RS 485 configurations, MODBUS RTU protocol, and internal printer options.

Memory Card Operations: Utilizes RAM STATIC technology and FLASH cards of ATA type for saving and loading configuration files.

General Specifications:

Operating Conditions: Reference range is 23°C ± 5°C, with a nominal range of 0°C to 50°C and 20% to 80% RH non-condensing.
Power Requirements: 100 to 230 VAC ± 10%, 50 Hz to 60 Hz, with a consumption of 40 VA. Input available for 11 V to 28 VDC supply, and an optional battery pack lasting approximately 3 hours.
Presentation: Systems come with a carrying handle for panel mounting and a protective cover for measuring voltages above 60 V.
Weight: Ranges from 3 kg to 9 kg depending on models and options.

Software:

Logidat: Configures DATALOG and processes stored values, offering delayed computations and export to spreadsheets.
LTCMP: Reads systems at programmed intervals and allows automatic station calls via modem.
Visulog: Supervisory software for real-time measurement representation and signaling alarms.
Utilities: Includes Visulog DDE links, DLL library, and Labview driver for specific developments.

Ordering Instructions: Lists various system configurations and accessories, including input and output boards, removable terminal blocks, PCMCIA flash cards, and protection covers.

Contact Information: AOIP contact details are provided for further inquiries.

Catalog excerpts

Ω U DCProcesssignals Processsignals Drycontact ~ U AC > Resistance Straingauges ThermocouplesPt 100 (1) Thermocouples > (1)Full, half- or quarter- bridge gauges. Need a power supply board which occupies 1 I/O slot.(2) RS 485 or RS 232C network interface. MODBUS/RTU (binary) protocol. Up to 32 modules can be linked. D ≤ 1 200 m.(3)RS 232 C interface ASCII or MODBUS/RTU programmable. >

Open the catalog to page 2

149 x 160149 x 291 149 x 393Front panel dimensions in mmDepth:410 mm, 470 mm with protection cover M E C H A N I C A LS P E C I F I C AT I O N SS i z e I/O board slots 29 14Universal analogue inputs, digital inputsElectrotechnical boardHigh speed acquisition boardStrain gauge power supply Relay outputs, analogue outputs +, -, /, X, OR, AND, NOT, ≤ , =, ≥ , < >, square root, log, NL, absolutevalue, statistics: maximum, minimum, average, standard deviation,trigonometric function, time base in seconds ✓ ✓✓ M o n i t o r i n g ✓ ✓✓ 4 programmable thresholds per channel Bulk storage ✓ ✓✓ In standard...

Open the catalog to page 3

T-RMS value measurement (AC + DCmode). The accuracies (uncertainties) aregiven for a sine wave voltage without DCcomponent.Measurement minimum scanning time:2seconds.Measurement range: 4 to 110% of rangefrom 40 to 400 Hz.Crest factor influence (CF): 1% for CF = 3.Repeatability between two channels: R a n g eR e s o l u t i o nU n c e rtainty at 1 meas/s (1) 90 days 1 year 60 mV600 mV6 V60 V100 V 10 V100 յV1 mV10 mV100 mV 0.3 %+100 V0.3 %+1 mV0.3 %+10 mV0.3 %+100 mV0.3 %+1 V 0.5 %+100 յV0.5 %+1 mV0.5 %+10 mV0.5 %+100 mV0.5 %+1 V > (1) The uncertainty is given in (% rdg + C) at 23ѰC 5ѰC with rdg...

Open the catalog to page 5
