Vacuum Pumps & Sytations
Vacuum Pumps & Sytations
The document provides detailed specifications for various vacuum pumps and stations, including the AL101, AL1001, and EP1001 series. These systems feature stainless steel enclosures, vacuum check valves, and vacuum release/blow-off valves, designed to maintain vacuum per ASME Standard B30.20a-2001 for safe load handling.
ANVER's air-powered mini-vacuum stations are compact, low-cost, and require minimal maintenance. They include pressure gauges, internal air filters, and are suitable for slightly porous materials. The AL1001 series includes a slide valve for compressed air ports.
The EP1001 series is electric-powered, featuring a continuously running vacuum pump, vacuum gauge, and internal vacuum filter. These stations are effective on slightly porous materials and include a vacuum attach/release valve.
The MTY-1 and MTY-2 models are lightweight, require little maintenance, and include vacuum check valves. They are suitable for non-porous to slightly porous materials and feature low compressed air consumption.
The VPF-57 AIR Series operates using dry, clean compressed air and includes front-mounted gauges and ergonomic handlebars. It features a vacuum check valve and reservoir for safe handling of non-porous loads.
These stations feature pneumatic energy saver circuitry, a complete vacuum station setup, and generate vacuum levels up to 27 in. Hg. They include adjustable vacuum switches and vacuum line filters.
Electric-powered vacuum generators with high capacity pumps and ergonomic design. They include a vacuum check valve and reservoir, and options for vacuum leakage sensing systems and water traps.
Across the various models, features include vacuum gauges, ergonomic designs, and options for heavy-duty frame construction. The systems are designed for versatility and interchangeability with standard mounting designs.
The document provides detailed specifications and features of the ANVER VacGuard II and VPE Series Vac-Pack Vacuum Generators. These systems are designed for handling non-porous to semi-porous loads and include various safety and operational features.
The VacGuard II is housed in a rugged polycarbonate enclosure and controls all vacuum pump functions. It includes safety lights and an optional audible vacuum leakage warning system. The system is available in different configurations, including standard and heavy-duty frames, with lifting capacities ranging from 2,200 lb to 8,000 lb.
- Control Panel: Front-mounted with gauges, lights, and power switches for easy access.
- Indicator Lights: Green indicates a safe vacuum level, while red indicates an unsafe level.
- Vacuum Retention: Includes an internal check valve and vacuum reservoir to maintain vacuum during power failures.
- Thermal Overload Protection: Prevents motor damage by shutting off if temperatures exceed safe limits.
- Twist-Lock Power Cord Connectors: Prevents accidental disconnection from the power source.
- Audible Vacuum Leakage Warning System: Monitors vacuum levels and triggers alarms if unsafe levels are detected.
The system features easy access for maintenance with hinged covers and clear filter bowls for quick cleaning. The pumps are oil-less and thermally protected.
Optional features include water traps for wet applications and remote configurations for specific operational needs.
The systems are suitable for various industrial applications, including those requiring remote operation or specific mounting configurations.
The document provides detailed specifications and features of ANVER's oil-lubricated rotary vane vacuum pumps and regenerative blowers. These pumps are designed for reliability and durability in the vacuum industry, offering various models with different capacities and features.
The document lists multiple models of vacuum pumps, including AFM12, AFM21, AFM25, AFM40, AFM63, AFM100, AFM160, and AFM230 series. Each model is detailed with specifications such as voltage, free air displacement, motor capacity, sound level, end vacuum, standard speed, oil quantity, and shipping weight. The pumps are available in different voltages (230V and 460V) and are designed to operate at 60 Hz.
Key features of the vacuum pumps include composite vane material for long life, non-metal or asbestos construction, oil level sight glass, vibration isolators, anti-suck back valve, integral exhaust filters, and TEFC high-efficiency tri-voltage motors. The pumps are air-cooled, direct-driven, and offer excellent performance for the price.
The document includes performance curves for various models, illustrating the relationship between vacuum levels (in Hg and Torr) and free air displacement (CFM). These curves help in understanding the operational efficiency and capacity of the pumps under different conditions.
ANVER also offers regenerative blowers, known for their compact, reliable, and quiet operation. These blowers are oil-free, maintenance-free, and provide a high-efficiency alternative to conventional side-channel blowers. They are available in explosion-proof models and are equipped with Siemens motors for superior power efficiency.
The document notes that performance data is subject to change and advises contacting the factory for updates. It also highlights the availability of optional vacuum or pressure relief valves and the inclusion of thermal overload protection in all models.
The document provides detailed specifications and features of various models of regenerative vacuum pumps and blowers offered by ANVER, in collaboration with Siemens. These pumps are designed for high efficiency, low maintenance, and environmentally friendly operation.
- Oil-free and maintenance-free design to prevent contamination and ensure long service life.
- Quiet operation with sound levels ranging from 61 dB(A) to 80 dB(A).
- Equipped with high-quality Totally Enclosed Fan Cooled (TEFC) motors by Siemens, ensuring superior power efficiency.
- Thermal overload protection is standard across all models.
- Compact and lightweight design for easy installation in any axle orientation.
- Shock-absorbing mounting plate to reduce vibration transmission.
- Compliance with ISO 9001, UL Recognized, and CE Compliant standards.
- Performance tolerance is ±10%.
- Performance curves are based on an air temperature of 60°F (15°C) at the inlet and 29.92 Hg abs (1013 mbar) at the discharge.
- Models are available in various voltage ranges and frequencies (50Hz and 60Hz).
- Maximum vacuum and pressure capabilities vary by model, with flow rates up to 330 CFM (590 m3/h).
These pumps are suitable for a wide range of applications including material handling, packaging machinery, vacuum chucking, bagging and bottling, thermoforming, medical equipment, and pneumatic conveying. However, they are not recommended for use with vacuum tube lifting systems.
- VB Series Explosion-Proof Regenerative Pump VB9HV
- RB Series High Flow Regenerative Pumps (RB-053-05, RB-100-10, RB-122-10, RB-175-11, RB-330-14, RB-735-08)
ANVER Corporation, 36 Parmenter Road, Hudson MA 01749 USA. Phone: 978-568-0221, 800-654-3500. Fax: 978-568-1570. Website: www.anver.com. Email: [email protected].
The document provides technical specifications and features of the RB Series High Flow and High Vacuum Regenerative Pumps by ANVER. These pumps are designed for various vacuum and pressure applications, offering oil-free and maintenance-free operation.
The pumps operate at different power ratings, with options for 60 Hz and 50 Hz frequencies. They feature thermal overload protection, high-quality TEFC motors by Siemens, and are compliant with IP54 and Class F insulation standards. The pumps are UL Recognized and CE Compliant.
The pumps offer maximum vacuum and pressure capabilities, with flow rates measured in CFM and m3/h. They are designed to run quietly, with sound levels as low as 70 dB(A), and feature cooler running outboard bearings for extended service life.
Key features include oil-free design to prevent contamination, compact and lightweight construction for easy installation, and shock-absorbing mounting plates to reduce vibration transmission. The pumps are suitable alternatives to standard rotary vane pumps and PD/rotary lobe blowers.
The document lists various models, each with specific motor types, horsepower, voltage, and performance characteristics. Performance curves are provided for different models, illustrating their efficiency at various operating conditions.
Standard voltage options are available for both three-phase and single-phase blowers, with all models operating at 3600 RPM. Specifications are subject to change, and users are advised to contact the factory for updates.
The document outlines the specifications for ANVER's TCP Series Water-Cooled Electric Vacuum Pumps, manufactured by Siemens. These pumps are designed as alternatives to rotary vane vacuum pumps, operating at a standard voltage of 208-230/415-460V for three-phase blowers and 115/230V for single-phase blowers. They are available in both 50Hz and 60Hz frequencies and operate at 3600 RPM. The pumps have a capacity range of 20 to 180 cfm and can generate a vacuum of 28.5 inches of Hg.
The TCP vacuum pumps utilize a closed-loop water circuit cooled by an air-cooled heat exchanger. Water is injected at the pump inlet, vaporized under vacuum, cooling the inlet air, which in turn cools the exhaust air. The condensed water is returned to the system, eliminating the need for an external water supply.
The pumps are oil-free, maintenance-free, and have a self-contained internal water circuit. They are compact, quiet, and cool-running, insensitive to dust and water vapor, and discharge clean air.
These pumps are suitable for various applications including ground water extraction, food and pharmaceutical packaging, thermoforming, rubber molding, medical evacuation, pick and place operations, vacuum routing, pneumatic vacuum conveying, and central vacuum systems.
Sound enclosures are available to reduce noise levels by 5-7 dB. Motor starters and protectors are also offered, providing short circuit and thermal overload protection, suitable for installations up to 600 V.
For further details, including dimensions and specific model information, the document refers to the ANVER website.
Catalog excerpts

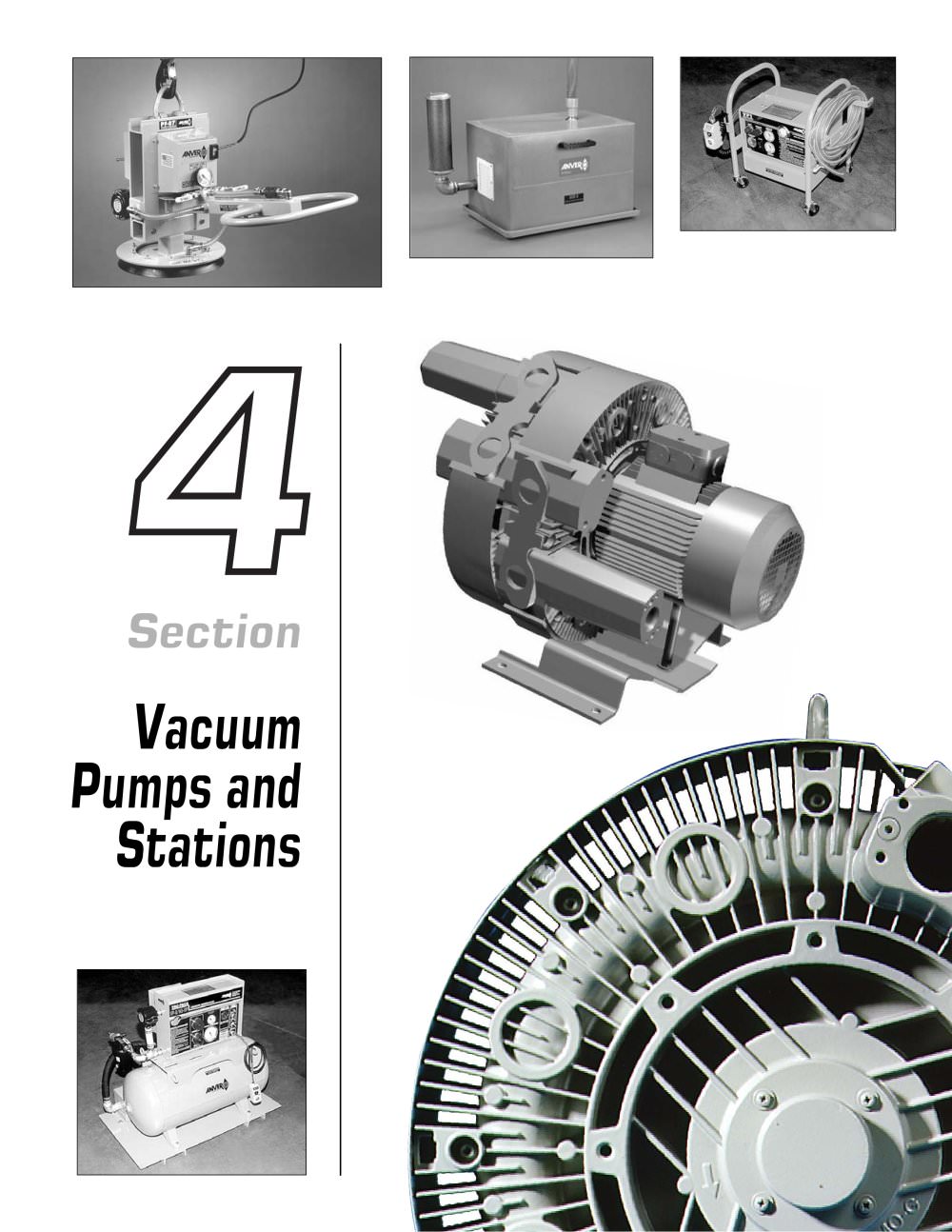

Section Vacuum Pumps and Stations
Open the catalog to page 1
Specifications: AL101 Features: Stainless Steel Enclosure and Plated Components 5.00 (127) 4.44 (113) 2.50 (64) AL101 3.50 (89) 1/4" NPT VACUUM PORT 1/4" NPT COMPRESSED AIR PORT 1.56 (40) (3) 8-32 UNF TAPPED HOLES 1.50 (38) 1.31 (33) 0.56 (14) 2.00 (51) Bottom View Mounting Bolt Pattern ANVER AL101, AL1001/20 and AL1001/25 Series of Mini-Vacuum Stations ANVER Air-Powered Mini-Vacuum Stations are low cost, compact, require little maintenance and feature quality ANVER venturi vacuum generators. A vacuum check valve maintains vacuum in case of power failure. On clean, smooth, non-porous material,...
Open the catalog to page 2
8.50 5.50 11.00 9.50 3.56 (4) 1/4-20 UNC TAPPED HOLES EP1001 1/4" NPT VACUUM PORT 115 VAC TWIST-LOC POWER CORD 4 FT. LONG POWER ON OFF VACUUM Vacuum Pumps & Stations Electric Powered Mini-Vacuum Stations ANVER EP1001 Series of Mini-Vacuum Stations These low cost, compact electric-powered vacuum stations require little maintenance. A vacuum check valve is provided to maintain vacuum in case of power failure. On clean, smooth, non-porous material, the unit will hold vacuum per ASME Standard B30.20a-2001 for Vacuum Lifting Devices allowing the operator to put down the load safely. A vacuum attach/release...
Open the catalog to page 3
36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Air Powered Vacuum Pumps and Stations Mitey-AirVac Air Powered Vacuum Stations ðn This spec sheet was adapted for print from our website. Additional information and photos are available at www.anver.com. 8060301 MTY-1 Air Powered Vacuum Station Features: • Low cost, light weight, subcompact size, requires little or no maintenance. • Internal vacuum check valve maintains vacuum in case of power loss. On clean, smooth, non-porous material, the unit will hold vacuum...
Open the catalog to page 4
Vac-Pack Vacuum Air Req. Input Unit Vacuum Beam Model No. Flow Consumption Pressure Weight Level Application Size (scfm) (scfm) (psi) lb. (Kg) (Sea Level) VPF-57/20-AIR 4.3 6.5 24” Hg Most smooth, (Standard) non-porous materials 3” Sq. VPF-57/25-AIR 7.0 9.5 75 60 (27.2) Consult Rough or semi-porous VPF-57/30-AIR 9.2 14.0 Factory materials, wood, stone etc. VPF-57/20HD-AIR 4.3 6.5 24” Hg Most smooth, non-porous materials 3” x 6” VPF-57/25HD-AIR 7.0 9.5 75 60 (27.2) Consult Rough or semi-porous VPF-57/30HD-AIR 9.2 14.0 Factory materials, wood, stone etc. 22.25" (565 mm) 17.38" (441 mm) 17.94" (456...
Open the catalog to page 6
1130501 36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Pumps and Vacuum Generators Compressed Air Powered Vacuum Stations . This spec sheet was adapted for print from our website. Additional information and photos are available at www.anver.com. AP Series Vacuum Stations With Unique All Pneumatic Energy Saver Circuitry that Shuts Off the Compressed Air Supply Line When Vacuum Is Achieved for More Economical Operation Features: • All Pneumatic Energy Saver Circuitry automatically shuts off the compressed...
Open the catalog to page 7
22.25" (565 mm) 17.38" (441 mm) 17.94" (456 mm) (2) 3/8" NPTF VACUUM PORTS POWER SWITCH MANIFOLD VACUUM GAUGE FILTER VIEW PORT ATTACH / RELEASE SLIDE VALVE POWER CORD -AC Vac-Pack Vacuum Generator Electric Powered VPF-57-AC Series ANVER’s latest models of vacuum generators feature high capacity pumps, valves, filters and gauges for trouble-free operation in the most demanding production environments. Designed for use with a wide assortment of vacuum lifter assemblies and interchangeable pad attachments. These high quality Vac-Packs are ruggedly built, yet affordably priced for unmatched value....
Open the catalog to page 8
Features: • VacGuard II Vacuum Control System This revolutionary solid-state Vacuum Control System combines all the required vacuum generator controls in a rugged, compact polycarbonate enclosure. The VacGuard II controls all vacuum pump functions, safety lights and can be fitted with an optional audible vacuum leakage warning system. • Front Control Panel and Gauges All gauges, lights and power switches are mounted on the front of the control panel. The two vacuum gauges on the face of the panel display the level of vacuum in the manifold and in the reservoir. The control pendant clip mounts...
Open the catalog to page 9
ANVER Corp. • 36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • E-Mail: [email protected] • www.anver.com 132 00 279 Control No.: 061405K Page 2 of 2 *Overhead Trolley (Model VP1-OD) Pendant not available, vacuum on/off must be controlled by an external valve. *Pillar Mounted (Model VP1-PD) Pendant not available, vacuum on/off must be controlled by an external valve. Mounted with (4) 5/16-18 UNC tapped holes. Heavy Duty Frame For lifters having beam size 3” X 6” (76 x 152 mm) lifting capacity up to 4600 lb (2078 kg). Remote Mount This unit has no bail, and...
Open the catalog to page 10
30.7 779) 23.6 (600) W L H LIFT BALE 4" X 5" (100 X 125) HOOK OPENING 3/4" NPTF VACUUM PORTS (2) WITH BALL VALVE SHUT-OFF Vac-Pack Vacuum Generator Electric Powered VPE3 Series with ANVER VacGuard™ Vacuum Control System Safety Features ðç VacGuard Vacuum Control System This revolutionary solid-state Vacuum Control System combines all the required vacuum generator controls in a rugged, compact ABS enclosure. The VacGuard controls all vacuum pump functions, safety lights and includes an audible vacuum leakage warning system. ðç Audible Vacuum Leakage Warning System Integrated electronically controlled...
Open the catalog to page 11
With ANVER VacGuard™ Vacuum Control System (VS31000010) This integrated solid state vacuum control with leakage sensor warning system is standard on all VPE3 Series Vac-Packs. Vac-Pack Vacuum Generator Electric Powered 36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com E-Mail: [email protected] 132 00 280 Revision: B January 2002 Page 2 of 2 VPE3-X Electric Vacuum Generator VPE3-S shown Remote Mount For Tilter Same as the Remote Mount, but pendant has an extra switch to control an electric tilt actuator or hydraulic cylinder. Heavy Duty Frame...
