Suspension Assemblies Overview
ANVER offers a variety of suspension assemblies for vacuum cups, suitable for different sizes and applications. These assemblies feature high-quality components like nickel or chrome-plated fittings, rods, and springs. They are designed to slide along a beam and are secured with a locking hand knob. Springs help level the load during lifting and accommodate height variations.
Key Features
  • Durable aluminum or steel slides with locking knobs.
  • Compatible with standard square tubing in five sizes.
  • Hardened pivot ball and ball seats for durability.
  • Top springs for even load distribution in multipad setups.
  • Bottom springs to cushion the lowering of pads onto the load.
Standard Suspension Assemblies
Pre-engineered assemblies are available for most cups and pads, saving time and costs. These include top and bottom springs, rods, and hose connections, made from high-quality plated materials.
Vacuum Cup Suspension Assemblies
Adjustable pad slides fit most crossarms, featuring sturdy aluminum construction with a heavy plastic locking knob and dual clamping areas. Stainless steel brake pads minimize marring while allowing easy adjustment.
Replacement Parts
ANVER stocks various replacement parts for vacuum cup and slide assemblies, though replacing the entire assembly is often more economical.
Beams and Crossarms
Available in various sizes and styles, made from heavy-duty carbon steel and nickel-plated for longevity. They can be attached to another main beam or directly to an existing system.
Adjustable Brackets and Slide Bracket Assemblies
Available in sizes to fit most crossarms, with slide bracket assemblies for different beam sizes.
SLSA Series
Includes models of spring-loaded suspension assemblies for vacuum cups, designed for high-speed automation applications. They offer reduced machine indexing, compensation for height variations, minimized shock and noise, consistent cup pressure, and easy interfacing with machine tooling.
Rigid Cup and Slide Mount Assemblies
Designed for small center port vacuum cups and medium-sized vacuum cups, featuring adjustable slide mounts and double spring suspensions.
Ball Swivel Mounts
Offer versatility with a ball and socket design that allows up to 15° pivot in any direction, suitable for large vacuum cups.
Specifications
  • Various suspension assembly configurations available, including sizes like 1.75 x 1.75 in. and 3.00 x 6.00 in.
  • Slide sizes range from 6.13 in. to 16.25 in.
  • Cup diameters range from 4.98 in. to 14.92 in.
  • Beam sizes range from 3.75 in. to 15.3 in.
  • Assemblies weigh between 110 lb. and 600 lb.
  • Rated load capacities vary, with specific models like VP60-4 and VC95R-4.
Procedures and Recommendations
  • Ensure proper mounting using the quad spring suspension assembly for consistent attachment.
  • Adjustments can be made for uneven or slightly tilted surfaces.
  • Use appropriate slides for mounting to standard load beam and crossarm sizes.
Key Notes
  • Vertical load capacity is half of the horizontal load capacity.
  • Rated load capacities are estimates and may vary based on load surface and vacuum level.
Contact Information
For more details, visit ANVER's website or contact them at their Hudson, MA location.
See more

Catalog excerpts

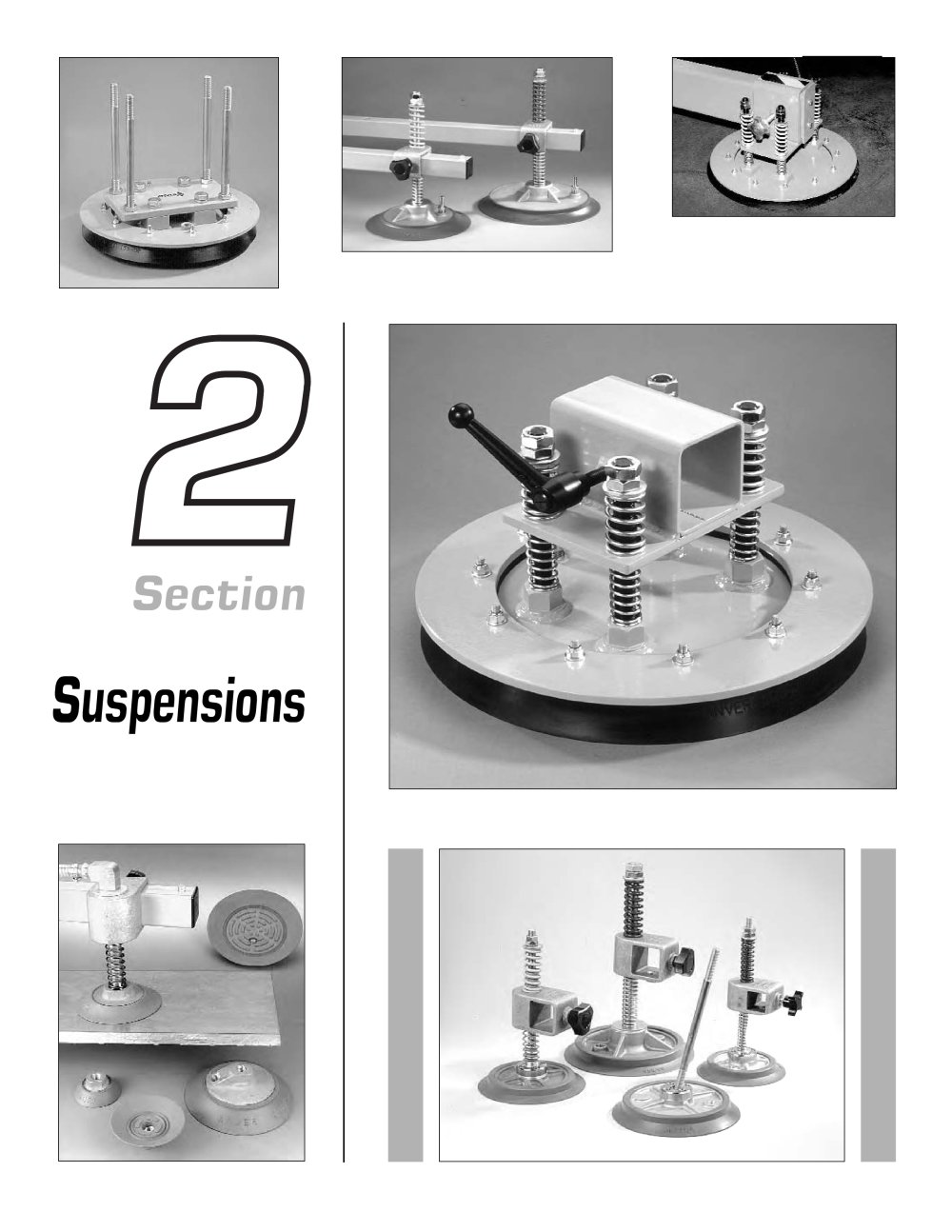

Level Compensator Suspensions-1

Section Suspensions

 Open the catalog to page 1
Level Compensator Suspensions-2

Suspension Assemblies Anver Cup and Slide Assemblies: ANVER builds complete cup and slide assemblies, fully engineered for each of its cups, in a variety of sizes. The highest quality components, such as nickel or chrome plated fittings, rods and springs are used. A typical suspension assembly slides freely along a beam, and is secured with a locking hand knob. Springs level the load in lifting and allow for variations in height when attaching to the load. Features: • Rugged aluminum or steel slides with locking knobs. • Fit standard square tubing. (ANVER offers 5 sizes). • Hardened pivot ball...

 Open the catalog to page 2
Level Compensator Suspensions-3

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies Vacuum Pad Mounting Accessories 2041201 SIDE KNOB MOUNT ON 2" SLIDE ONLY. STAINLESS STEEL BEAM BRAKE PAD SIZE Adjustable Pad Slides Adjustable pad slides are available in a variety of sizes to fit most crossarms. These sturdy aluminum slides feature a heavy plastic locking knob and dual clamping areas to keep pad attachments firmly locked in place. Stainless Steel brake pads are included to minimize marring of the crossarms while still...

 Open the catalog to page 3
Level Compensator Suspensions-4

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies Adjustable Brackets for Various Suspension Rods 2031301 Adjustable brackets for various suspension rods are available in a variety of sizes to fit most crossarms. Fits Steel Tubing Sizes 1 1/4", 1 1/2", 1 3/4" and 2". Adapter No.: 212-00-679 (Guide, Spacer for SLSA-1 Series) SBA-125 SBA-150 SBA-175 SBA-200 Slide Bracket Assembly, for 1-1/4" Beams Slide Bracket Assembly, for 1-1/2" Beams Slide Bracket Assembly, for 1-3/4" Beams Slide...

 Open the catalog to page 4
Level Compensator Suspensions-5

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies SLSA-1 Series (M5-10/32 UNF Thread) 1082301 ANVER Vacuum Suction Cups can be mounted to most vacuum systems using Spring Loaded Suspension Assemblies. These are high quality, well finished and designed for high speed automation applications. Adjustable bulkhead fittings mount to almost any lifting frame while a variety of tube fittings are available to connect to the vacuum generating system. These unique mounting systems act as extensions...

 Open the catalog to page 5
Level Compensator Suspensions-6

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies SLSA-2 Series (1/8” NPT Thread) 4070301 ANVER Vacuum Suction Cups can be mounted to most vacuum systems using Spring Loaded Suspension Assemblies. These are high quality, well finished and designed for high speed automation applications. Adjustable bulkhead fittings mount to almost any lifting frame while a variety of tube fittings are available to connect to the vacuum generating system. These unique mounting systems act as extensions...

 Open the catalog to page 6
Level Compensator Suspensions-7

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies SLSA-3 Series 9011201 ANVER Vacuum Suction Cups can be mounted to most vacuum systems using Spring Loaded Suspension Assemblies. These are high quality, well finished and designed for high speed automation applications. Adjustable bulkhead fittings mount to almost any lifting frame while a variety of tube fittings are available to connect to the vacuum generating system. These unique mounting systems act as extensions while providing...

 Open the catalog to page 7
Level Compensator Suspensions-8

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies Rigid Cup and Slide Mount Assemblies 2031301 Also available for our small center port vacuum cups are spring loaded suspensions with adjustable pad slides. These assemblies are designed to be mounted on a load beam where vacuum cups need to be adjusted to varying load sizes. Three possible slides are available to fit common load beam and crossarm sizes. For use with VC Series and VP Series Vacuum Cups. Features: • Adjustable Slide...

 Open the catalog to page 8
Level Compensator Suspensions-9

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies Rigid Cup and Slides with Side Vacuum Port 9041401 C D B E PAD NO. A TUBING MOVES FREELY THROUGH SLIDE AND IS SECURED WITH HAND KNOB G F SQUARE TUBING MINIMUM DISTANCE OF TRAVEL H J MAXIMUM DISTANCE OF TRAVEL Rigid Suspension Assemblies are also available for our medium sized vacuum cups. Double spring suspensions and side vacuum ports make these assemblies perfect for virtually any material handling application. Adjustable slides...

 Open the catalog to page 9
Level Compensator Suspensions-11

36 Parmenter Road • Hudson MA 01749 USA • 978-568-0221 • 800-654-3500 • FAX 978-568-1570 • www.anver.com • E-Mail: [email protected] Vacuum Cup Suspension Assemblies Quad-Mount Spring-Loaded Series 4022301 BEAM SIZE ANVER's larger vacuum cups and vacuum pads can be mounted using a quad spring suspension assembly. This mounting configuration ensures consistent attachment by allowing for adjustment to uneven or slightly tilted surfaces. A wide variety of slides are available for mounting to most standard load beam and crossarm sizes. For use with Large VC Series Cups and Large VP Series Pads. PS95Q-NBR175...
