GAS TURBINES
GAS TURBINES
Ansaldo Energia offers a range of gas turbines designed for various power generation applications, including packages for power islands, simple cycle, and combined cycle plants. With over 100 installations, the company emphasizes reliability, efficiency, and flexibility, boasting 5,000,000 cumulative equivalent operating hours.
The gas turbines feature a compressor cold end drive, disk type rotor, axial exhaust, and a manhole for hot gas path inspection. They also include variable inlet guide vanes and replaceable blades and vanes.
Ansaldo's turbines support diverse fuels, including natural gas, syngas, hydrogen-enriched fuels, and heavy oil. They are designed for quick start-up/shut-down and can handle grid frequency variations and high transient modes.
To meet stringent environmental regulations, Ansaldo turbines with Hybryd Burner systems achieve NOx emissions below 50 mg/Nm3 and CO emissions below 30 mg/Nm3. The VeLoNOx™ system further reduces NOx emissions to below 30 mg/Nm3.
Ansaldo provides comprehensive services, including erection, start-up, testing, maintenance, and training, ensuring optimal operation and customer support worldwide.
Significant investments have been made in technology and facilities to increase production capacity from 18 to 28 turbines per year, ensuring control over the entire manufacturing process.
The control system features double redundancy, modular architecture, and extensive diagnostic capabilities. It supports automatic operation and integrates with both simple and combined cycle applications.
Ansaldo supplies combined cycles with AE64.3A, AE94.2, and AE94.3A turbines, offering configurations that meet various customer needs for flexibility, reliability, and efficiency. Performance metrics include net plant heat rate, efficiency, and power output.
With over 150 years in the industry, Ansaldo Energia is a global leader in power generation, offering a wide range of services and products, certified under ISO 9001 standards.
Catalog excerpts
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {}

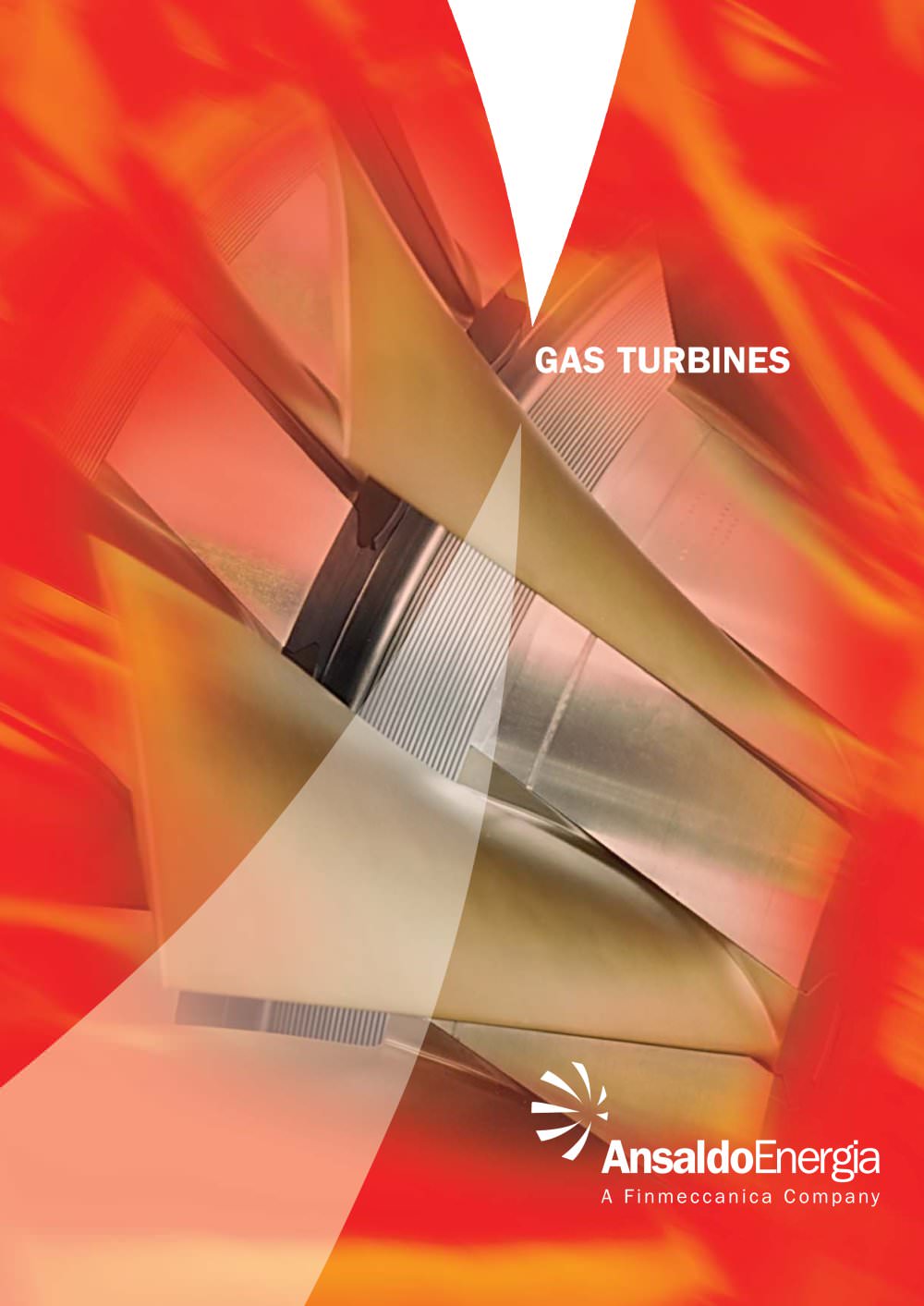

Open the catalog to page 1
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:19.00pt "Franklin Gothic Medium", sans-serif; } Gas Turbines gas turbines packages Օ gas turbines for power islands and grid support gas turbines in turnkey simple cycle plants Օ gas turbines in turnkey combined cycle plants Ansaldo Energia has installed more than 100 gas turbines for several applications...
Open the catalog to page 2
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:12.00pt "Franklin Gothic Medium", sans-serif; } Thermodynamic data ISO base load JAE64.3A AE94.2 AE94.2K AE94.3A Turbine inlet temp. acc. to ISO 2314 [°C] 1190 1075 1250 Pressure ratio [-] 18,2 Power output at gen. term. [MW] 294 Efficency at gen term. [%] 39,7 Exhaust gas mass flow [kg/s] 702 Exhaust gas temprature [°C] 580 Ansaldo Energia Gas Turbine...
Open the catalog to page 3
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:13.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:14.00pt "Franklin Gothic Medium", sans-serif; } On the basis of its operating expriences Ansaldo Energia has installed world wide gas turbines well re-sponding to the Customer needs in terms of fuel diversification, grid stabilization, performance optimiza- Over the past 15 years, more and more stringent envi-ronmental constraints set by international...
Open the catalog to page 4
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:19.00pt "Franklin Gothic Medium", sans-serif; } 1 Start up and after sales services Manufacturing Ansaldo Energia offers a full range of services and quali-fied personnel for erection and/or supervision, startup and testing. The availability of standard arrangements and in some cases package solutions ensure rapid, prob-lem-free erection, startup and commissioning....
Open the catalog to page 5
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:14.00pt "Franklin Gothic Medium", sans-serif; } The control system has been designed specifically by Ansaldo Energia to meet the stringent requirements of new generation advanced performance gas turbines,...
Open the catalog to page 6
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:13.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:16.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:19.00pt "Franklin Gothic Medium", sans-serif; } Ansaldo Energie combined cycle power pla Ansaldo Energia supplies combined cycles incorporating AE64.3A, AE94.2, AE94.3A gas turbines. The full range of plant configurations covers all possible customer arrangement, flexibility, reliability...
Open the catalog to page 7
G_544-08_ Ansaldo Geothermal_AW:Prodotti Ansaldo table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:4.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:6.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:7.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:9.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:13.00pt "Franklin Gothic Medium", sans-serif; } .font8 { font:14.00pt "Franklin...
