Andor Technology

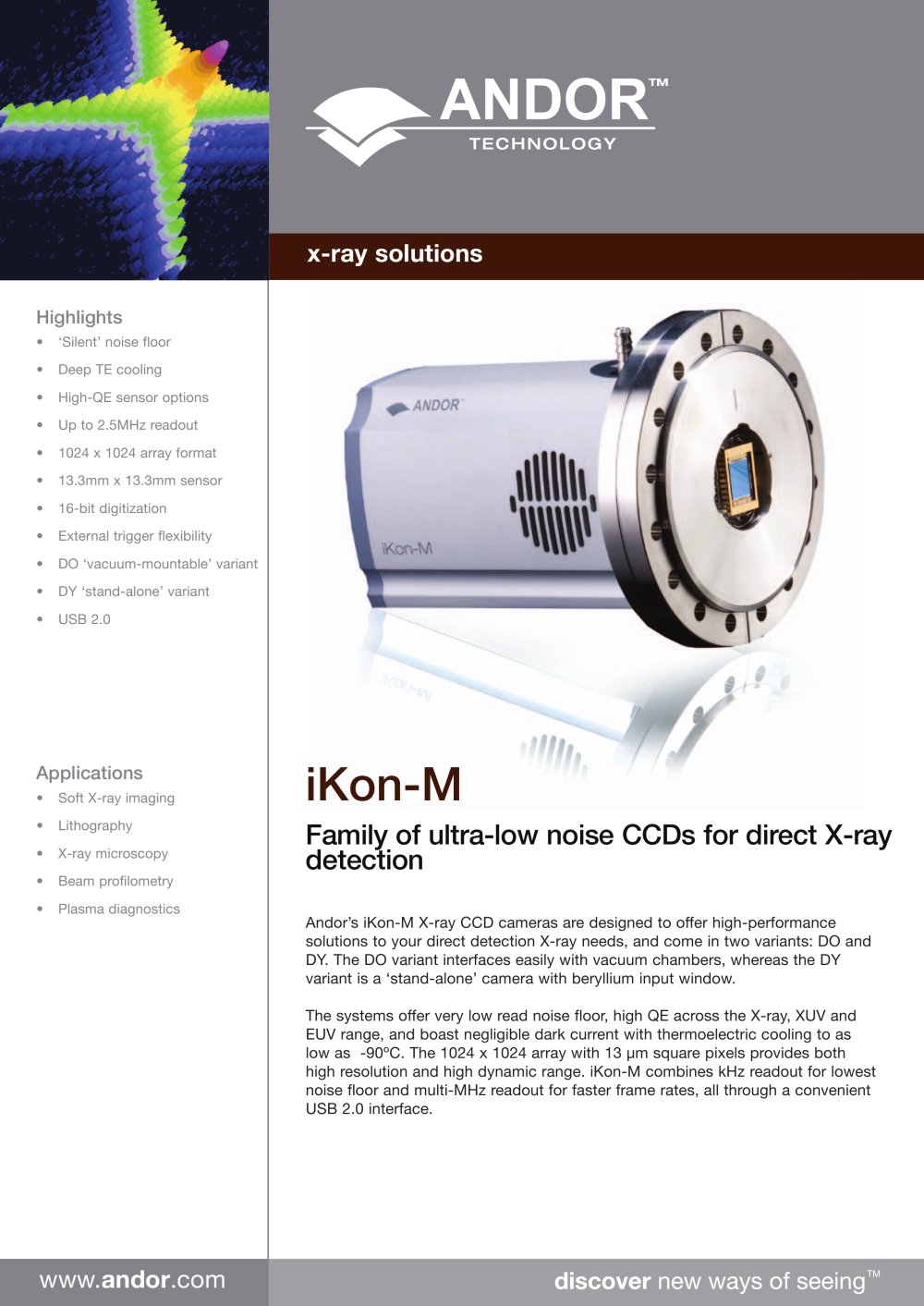

iKon-M USB X-Ray Brochure

iKon-M USB X-Ray Brochure

Product catalog summary

Overview
Andor's iKon-M X-ray CCD cameras are designed for high-performance direct X-ray detection. They are available in two variants: DO, which interfaces with vacuum chambers, and DY, a stand-alone camera with a beryllium input window. These cameras offer low read noise, high quantum efficiency (QE) across X-ray, XUV, and EUV ranges, and minimal dark current due to thermoelectric cooling down to -90ºC. The 1024 x 1024 array with 13 µm square pixels ensures high resolution and dynamic range, with readout options for both low noise and faster frame rates via USB 2.0.

Key Features

'Silent' noise floor and deep TE cooling to -90ºC.
High-QE sensor options with back-illuminated sensors for maximum photon capture.
Up to 2.5MHz readout speed for dynamic event tracking.
16-bit digitization for capturing both strong and weak signals.
External trigger flexibility and USB 2.0 connectivity for easy integration.
DO variant is vacuum-mountable; DY variant is stand-alone.

Applications

Soft X-ray imaging
Lithography
X-ray microscopy
Beam profilometry
Plasma diagnostics

Benefits

Unparalleled thermoelectric cooling enhances performance.
Ultra-low noise readout down to 2.5 electrons rms.
Software selectable readout speeds and pre-amp sensitivity for system optimization.
Plug and play connectivity with USB 2.0 interface.
External TTL input/output for synchronization with experimental events.

Contact Information
Head Office / Europe: Belfast, Northern Ireland
North America: South Windsor, CT, USA
Japan: Tokyo, Japan
China: Beijing, China

Catalog excerpts

Unparalleled thermoelectric cooling ՕTE cooling to -90˚C 7Millennium WaySpringvale Business Park Belfast BT12 7AL Northern IrelandTel:+44 (0)28 9023 7126Fax: +44 (0)28 9031 0792 Ultra low noise readout ՕDown to 2.5 electrons rms withintelligent low noise electronics High QE sensor options ՕBack-illuminated sensors for maximumphoton capture and high S/N ratio Software selectable readout speeds (upto 2.5 MHz ՕFaster readout for focusing andfollowing dynamic events High quantitative dynamic range Օ16-bit scientific grade A/D; both strongand very weak signals in a single frame > 425 Sullivan Avenue...

Open the catalog to page 2
