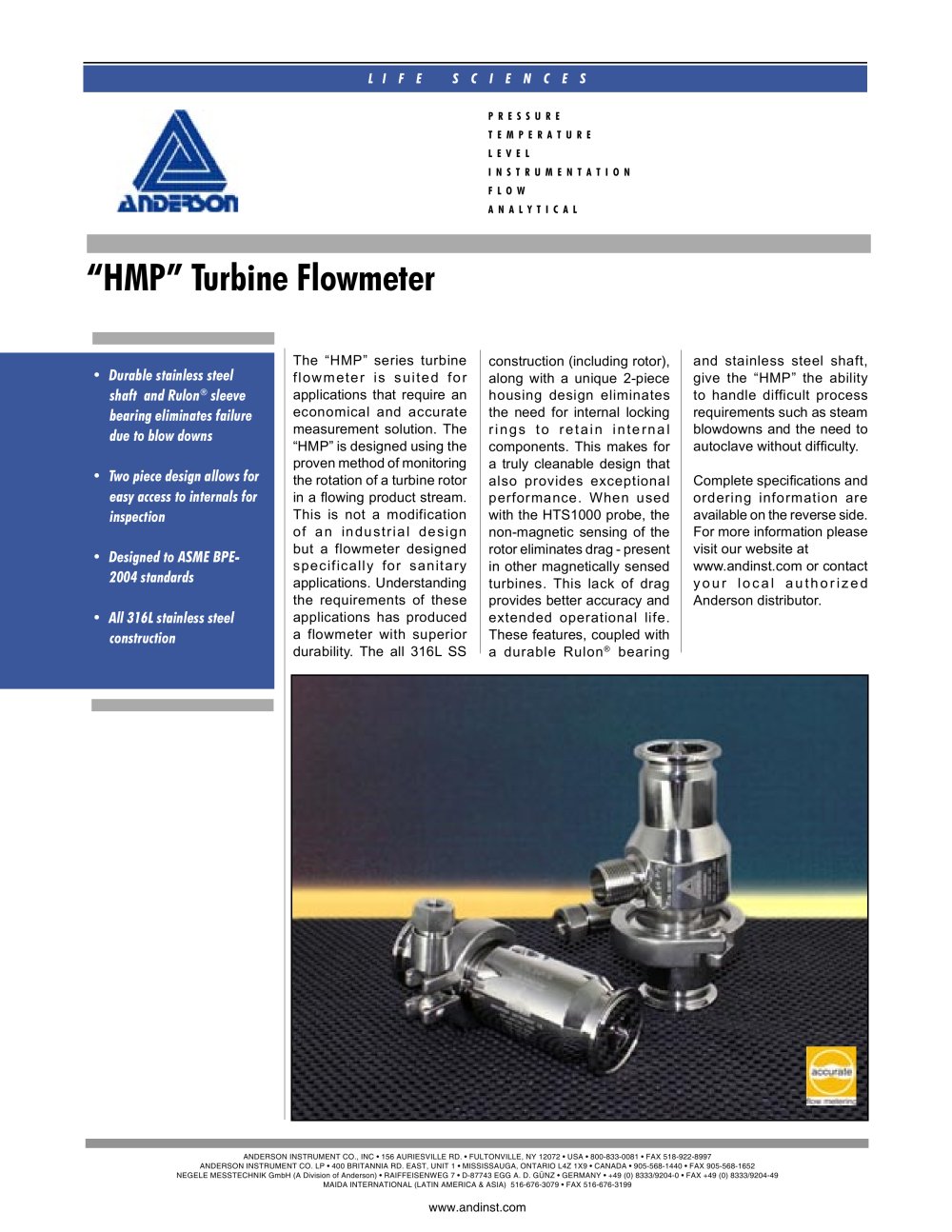

Turbine Flowmeter

Product catalog summary

Overview: The "HMP" series turbine flowmeter is designed for sanitary applications requiring economical and accurate flow measurement. It utilizes a turbine rotor to monitor flow, ensuring durability and performance.

Key Features:

Constructed from 316L stainless steel with a Rulon® sleeve bearing for enhanced durability.
Two-piece design for easy internal access and cleaning.
Non-magnetic sensing with the HTS1000 probe eliminates drag, improving accuracy and lifespan.
Complies with ASME BPE-2004 standards and 3-A sanitary standards.

Specifications:

Environment: Fluid temperature range from 0 to 149°C, maximum pressure of 10.3 Bar, and viscosity up to 100 cps.
Accuracy: ±0.5% of rate, with repeatability of ±0.1%.
Flow Ranges: Varies by model, from 18.5-946 LPM.
Cleaning: Supports CIP/SIP/Autoclave at 149°C.

Mechanical Specifications:

Sanitary connections available in 1”, 1 1/2”, and 2” Tri-Clamp®.
Product contact materials include 316L stainless steel, Rulon® 123, Teflon®, and epoxy resin.
Surface finish of 20 Ra max, electropolished stainless steel.

Electrical Specifications:

HTS1000: Requires 8-24 VDC, outputs unscaled pulsed signals.
HT75000: Outputs unscaled frequency signals without external power.

Ordering Information: Various models and options available, including different housing, output, and cable options. Replacement parts and spare cables are also offered.

Approvals: USP Class VI, ASME BPE-2004, and 3-A compliant with third-party verification.
