Thermowells

Product catalog summary

Specifications

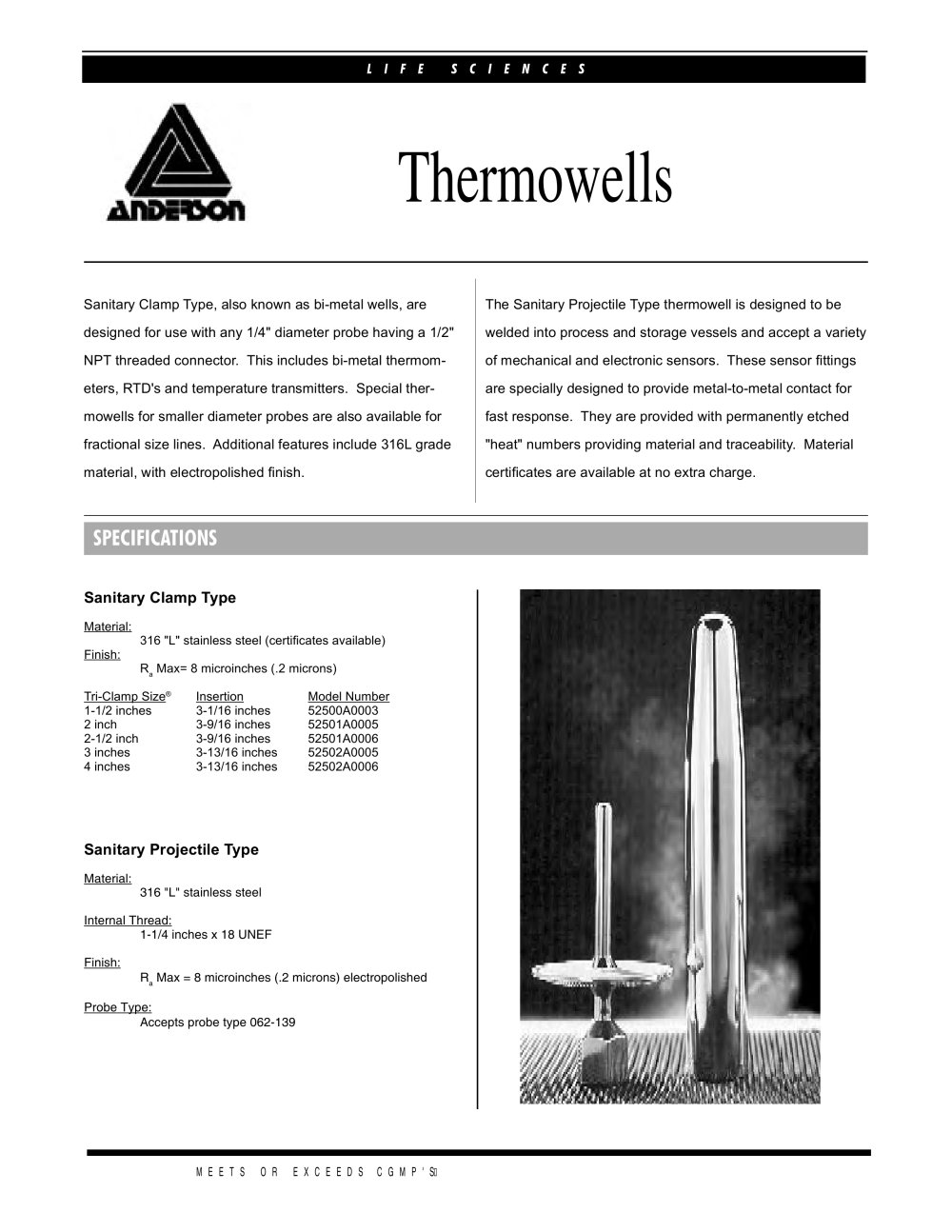

Thermowells are designed for use with 1/4" diameter probes with a 1/2" NPT threaded connector, suitable for bi-metal thermometers, RTDs, and temperature transmitters. Special thermowells are available for smaller diameter probes. They are made from 316L stainless steel with an electropolished finish.

Sanitary Clamp Type

Material: 316L stainless steel (certificates available)
Finish: Ra Max = 8 microinches (.2 microns)
Tri-Clamp Sizes and Insertion Lengths:
- 1-1/2 inches: 3-1/16 inches (Model 52500A0003)
- 2 inches: 3-9/16 inches (Model 52501A0005)
- 2-1/2 inches: 3-9/16 inches (Model 52501A0006)
- 3 inches: 3-13/16 inches (Model 52502A0005)
- 4 inches: 3-13/16 inches (Model 52502A0006)

Sanitary Projectile Type

Material: 316L stainless steel
Internal Thread: 1-1/4 inches x 18 UNEF
Finish: Ra Max = 8 microinches (.2 microns) electropolished
Probe Type: Accepts probe type 062-139
Designed for welding into process and storage vessels, providing metal-to-metal contact for fast response.
Includes permanently etched "heat" numbers for material traceability.

Compliance
Meets or exceeds CGMP standards.

Contact Information
Anderson Instrument Co., Inc., USA: 800-833-0081
Anderson Instrument Co. LP, Canada: 905-568-1440
Negele Messtechnik GmbH, Germany: +49 (0) 8333/9204-0
Maida International (Latin America & Asia): 516-676-3079
www.andinst.com

Document Information
Form AIC3567, Revised: November 2004, Supercedes: December 2003

Catalog excerpts

Material: 316 "L" stainless steel (certificates available) Finish: R > a Max= 8 microinches (.2 microns)Tri-Clamp Size > Insertion Model Number 1-1/2 inches 3-1/16 inches 52500A0003 2 inch 3-9/16 inches 52501A0005 2-1/2 inch 3-9/16 inches 52501A0006 3 inches 3-13/16 inches 52502A0005 4 inches 3-13/16 inches 52502A0006 > Material: 316 "L" stainless steelInternal Thread: 1-1/4 inches x 18 UNEFFinish: R > a Max = 8 microinches (.2 microns) electropolishedProbe Type: Accepts probe type 062-139 M E E T S O R E X C E E D S C G M P ' S >

Open the catalog to page 1

Pharmaceutical Wells: 1.5" - 4" Tri-Clamp"A" Dim. (insertion length) varies with fitting > 9-1/8 " Tri-Clamp Size Insertion 1-1/2 inches 3-1/16 inches 2 inch 3-9/16 inches 2-1/2 inch 3-9/16 inches 3 inches 3-13/16 inches 4 inches 3-13/16 inches > Form AIC3567 3/98Revised: November 2004Supercedes: December 2003 ANDERSON INSTRUMENT CO., INC 156 AURIESVILLE RD. Օ FULTONVILLE, NY 12072 USA Օ 800-833-0081 FAX 518-922-8997ANDERSON INSTRUMENT CO. LP Օ 400 BRITANNIA RD. EAST, UNIT 1 MISSISSAUGA, ONTARIO L4Z 1X9 Օ CANADA 905-568-1440 Օ FAX 905-568-1652NEGELE MESSTECHNIK GmbH (A Division of Anderson) RAIFFEISENWEG...
