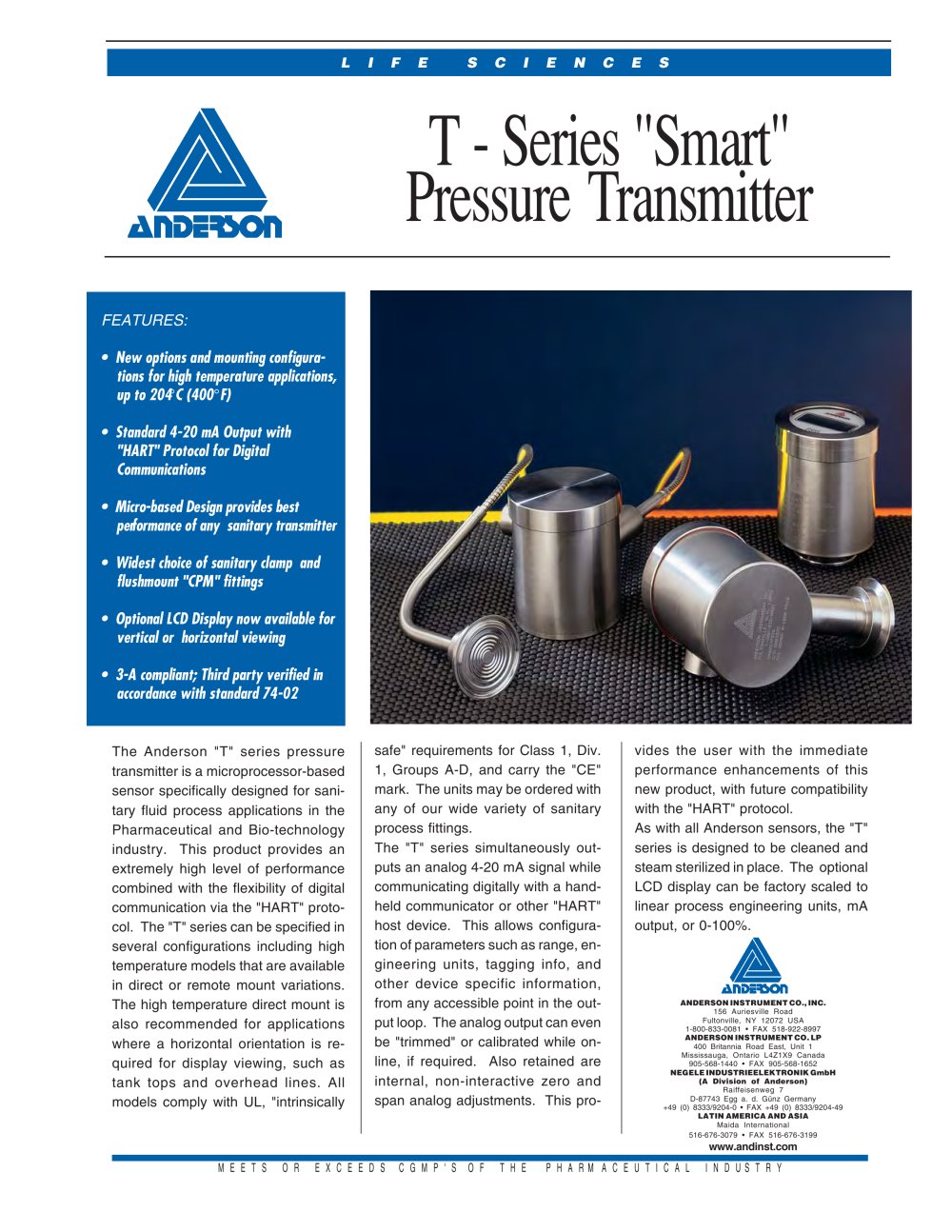

T-Series "Smart" Pressure Transmitter
1 / 2 PagesView full catalog
T-Series "Smart" Pressure Transmitter
Product catalog summary
Overview: The Anderson "T" series pressure transmitter is a microprocessor-based sensor designed for sanitary fluid process applications in the pharmaceutical and biotechnology industries. It offers high performance and digital communication via the "HART" protocol, suitable for high-temperature applications and various mounting configurations.
Specifications:
- Output: Standard 4-20 mA with "HART" protocol for digital communications.
- Temperature Limits: Standard/Direct Mount: -18 to 135°C; High Temp./Direct Mount: -18 to 177°C; High Temp./Remote Mount: -18 to 204°C.
- Accuracy: ±0.2% of URL for psig ranges; ±1.0% URL below atmospheric zero for psia ranges.
- Power Supply: 13-40 volts D.C.; 18-45 volts D.C. with display.
- Compliance: UL and CE compliant for hazardous locations.
Features:
- New options for high-temperature applications up to 204°C (400°F).
- Micro-based design for optimal performance.
- Optional LCD display for vertical or horizontal viewing.
- 3-A compliant, verified according to standard 74-02.
Performance:
- Rangeability: 10:1 via Hand Held Terminal.
- Over Pressure Limit: 2X URL.
- Mechanical Trim Adjustments: Internally adjustable ±5% of span (zero); ±20% of span (span).
- Process Temperature Effect: Less than 0.2% of full scale output/10°F change.
Ordering Information: The product can be customized with various configurations, including sensor type, upper range limit, process connection, display options, mounting styles, and diaphragm materials.
Contact Information: Anderson Instrument Co., Inc. provides contact details for their offices in the USA, Canada, Germany, Latin America, and Asia.
See more
Catalog excerpts
Standards: Designed and manufactured to sound engineeringpractices in accordance with Article 3.3 of the PED97/23/EC > 1 Pipe/Wall mount bracket included with remote mount option (Style 3) > 3 Not available with Style 2 or 3 > 2 Compound Range Ordering Examples: For 30-0-50 psig, select 50 psig URL For 30-0-60 psig, select 100 psig URL Process Temperature Effect: > 4 Vacuum shown as (-) PSIG for compound ranges Less than 0.2% of full scale output/10 F change > Ranges: Defined by Upper Range Limit (URL) Rangeability (Turn-down): 10:1 via Hand Held Terminal Over Pressure Limit: 2X URL Mechanical...
