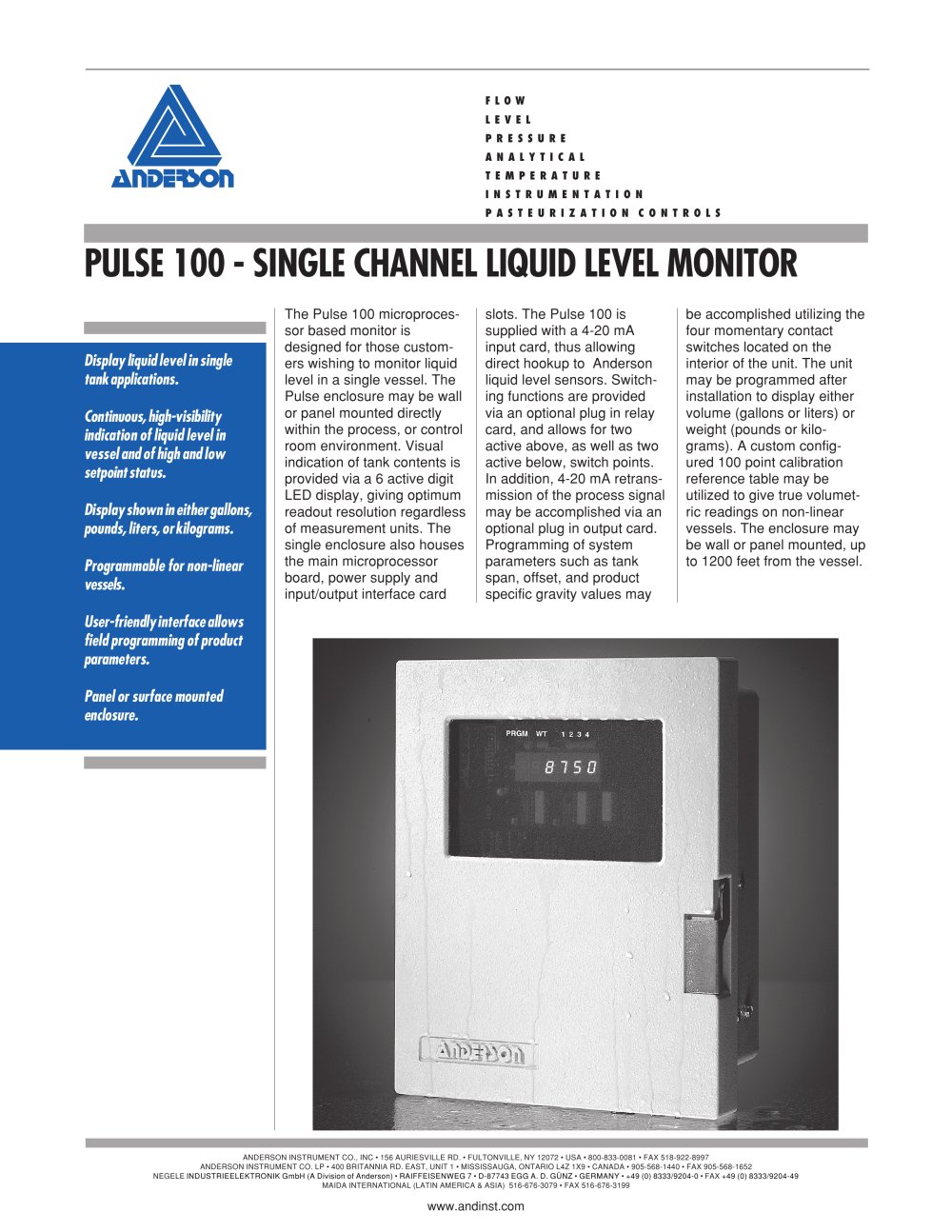

- Pulse 100 - Single Channel Liquid Level Monitor
Pulse 100 - Single Channel Liquid Level Monitor
1 / 2 PagesView full catalog
Pulse 100 - Single Channel Liquid Level Monitor
Product catalog summary
Overview: The Pulse 100 is a microprocessor-based monitor designed for single vessel liquid level monitoring. It features a 6-digit LED display for high-resolution readouts in various units (gallons, pounds, liters, kilograms) and can be wall or panel mounted.
Specifications: The enclosure is made of NORYL with a high-impact polycarbonate window, rated NEMA 4X. It measures 11 1/2" H x 9 1/4" W x 5 3/8" D. Operating temperature ranges from 32°F to 120°F, with humidity tolerance from 5% to 95% non-condensing.
Inputs and Outputs: The system includes a 4-20 mA input card and optional relay and retransmission cards. It supports field programming via switches and a DIP switch bank. Relay outputs are optional, with four relays available for setpoint activation.
Performance: The system offers an accuracy of +/- 0.5% of full scale and stability of +/- 0.3% of span over six months. It supports both standard and linearized retransmission of signals.
Power Requirements: The monitor operates on 115 VAC or 230 VAC, with specific fuse ratings for each. The processor board is a Motorola 68HC11 HCMOS 8-bit microcomputer.
Ordering Information: Options include power supply voltage, engineering units, relay inclusion, retransmission type, and radar level sensor power supply.
See more
Catalog excerpts
Setpoint Range:ProgrammableRetransmission:Optional, plug in cardStandard:Direct retransmission of 4-20 mAinput signalLinearized:Retransmission of 4-20 mA signallinearized to tank and productparameters Material:NORYL; paintedDimensions:11 1/2" H x 9 1/4" W x 5 3/8" DPanel Cut out:10 3/8" H x 8 1/16" WRating:NEMA 4X Window Material:High impact polycarbonatePenetrations:7/8" diameter, with rubber grommetLED Display:6 active digits, .3" high, decimal pointprogrammable. LED indication forvolume/weight mode and alarmindication. Available in engineering units: gallons/lbs.; liters/kg > System Accuracy:+/-...
