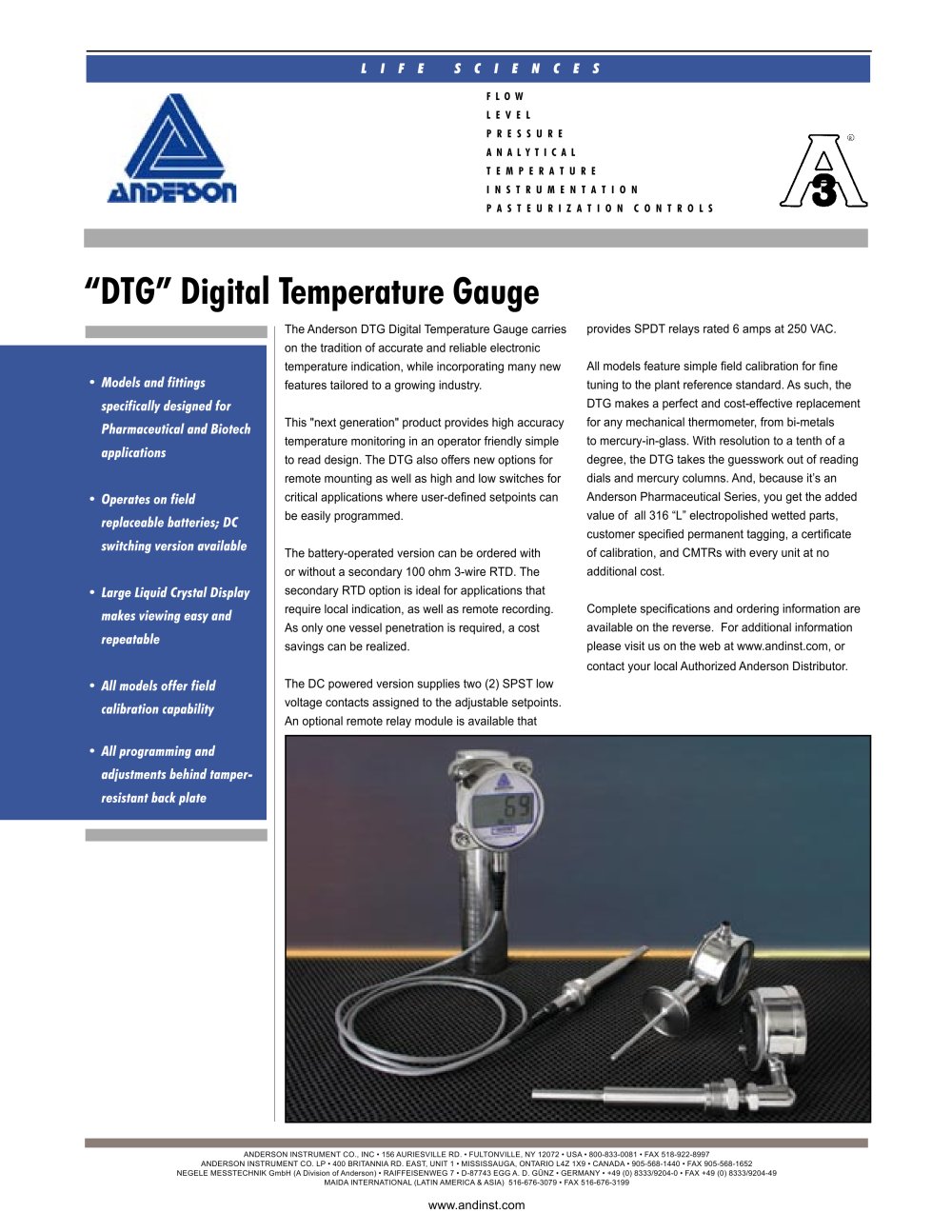

Overview: The Anderson DTG Digital Temperature Gauge is designed for accurate and reliable temperature monitoring, featuring a user-friendly display and options for remote mounting. It is suitable for critical applications with programmable high and low switches.

Specifications: The DTG offers a temperature range of 0 to 300°F (-18 to 150°C) with a resolution of 0.1°F or °C and an accuracy of +/- 0.75°F (+/-0.4°C). It is compliant with 3-A, NEMA 4X, and IP-66 standards, and features 316L stainless steel for product contact parts.

Power and Battery: The gauge can be powered by 2 AA batteries or a 9-30V DC external supply. Battery life is a minimum of 12 months for battery-operated models.

Display and Calibration: The DTG features a large LCD for easy viewing and allows for field calibration. Adjustments are made via onboard switches behind a tamper-resistant back plate.

Models and Options: Various models are available, including those with optional RTD for remote recording, dual switches for DC power, and remote display options. Different mounting styles and probe types are offered to suit specific application needs.

Applications: The DTG is ideal for pharmaceutical and biotech applications, offering a cost-effective replacement for mechanical thermometers.

Ordering Information: Detailed specifications and ordering options are provided, including fitting types, probe lengths, and cable lengths.
