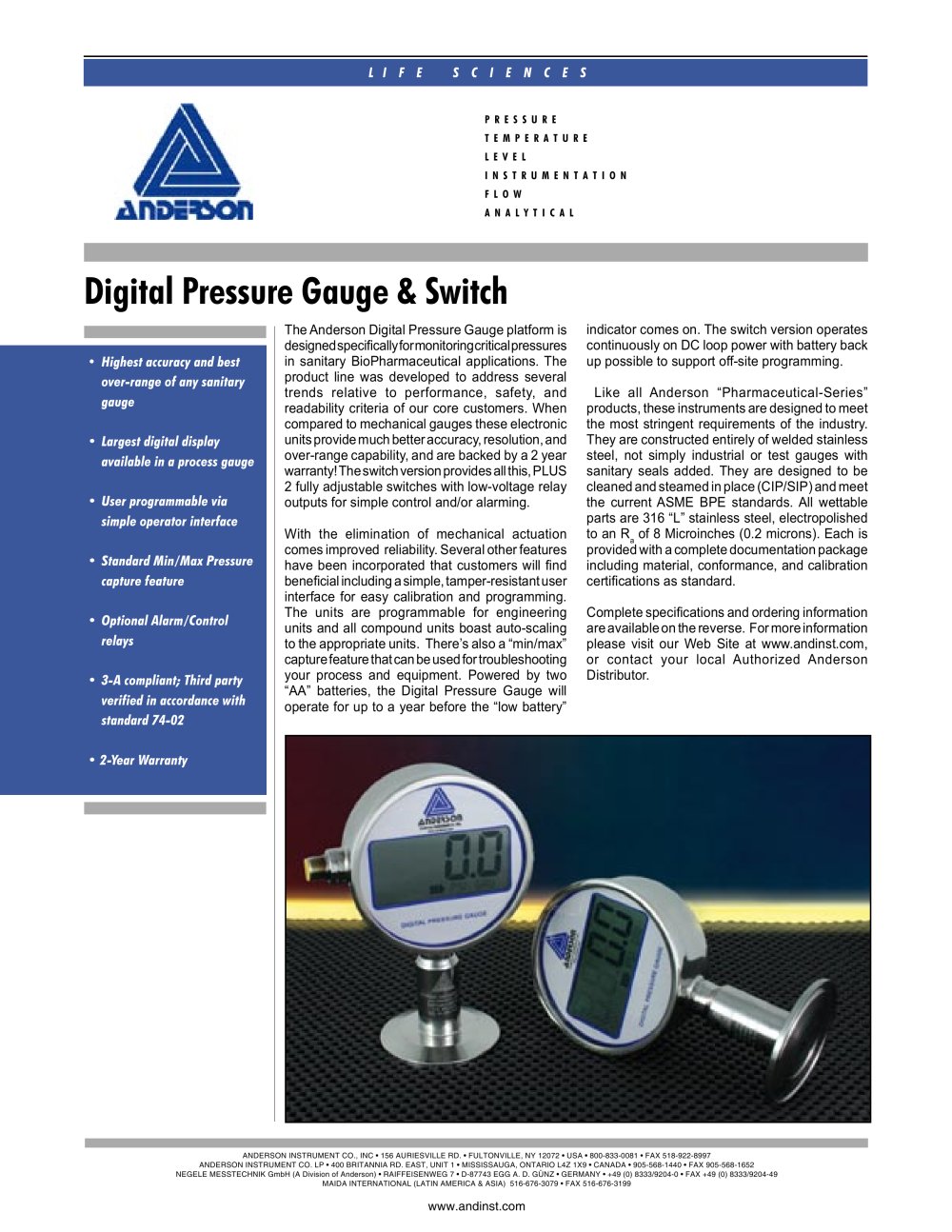

Digital Pressure Gauge & Switch
2Pages

The Anderson Digital Pressure Gauge platform is designed specifically for monitoring critical pressures in sanitary BioPharmaceutical applications. The product line was developed to address several trends relative to performance, safety, and readability criteria of our core customers. When compared to mechanical gauges these electronic units provide much better accuracy, resolution, and over-range capability, and are backed by a 2 year warranty! The switch version provides all this, PLUS 2 fully adjustable switches with low-voltage relay outputs for simple control and/or alarming.With the elimination of mechanical actuation comes improved reliability. Several other features have been incorporated that customers will find beneficial including a simple, tamper-resistant user interface for easy calibration and programming. The units are programmable for engineering units and all compound units boast auto-scaling to the appropriate units. Theres also a ғmin/max capture feature that can be used for troubleshooting your process and equipment. Powered by two ԓAA batteries, the Digital Pressure Gauge will operate for up to a year before the ԓlow battery indicator comes on. The switch version operates continuously on DC loop power with battery back up possible to support off-site programming. Like all Anderson ԓPharmaceutical-Series products, these instruments are designed to meet the most stringent requirements of the industry. They are constructed entirely of welded stainless steel, not simply industrial or test gauges with sanitary seals added. They are designed to be cleaned and steamed in place (CIP/SIP) and meet the current ASME BPE standards. All wettable parts are 316 ԓL stainless steel, electropolished to an R ԕ Highest accuracy and best over-range of any sanitary gauge Largest digital display available in a process gaugeՕ User programmable via simple operator interface Standard Min/Max Pressure capture featureՕ Optional Alarm/Control relays 3-A compliant; Third party verified in accordance with standard 74-02 Օ 2-Year Warranty > a of 8 Microinches (0.2 microns). Each is provided with a complete documentation package including material, conformance, and calibration certifications as standard.Complete specifications and ordering information are available on the reverse. For more information please visit our Web Site at www.andinst.com, or contact your local Authorized Anderson Distributor. > ANDERSON INSTRUMENT CO., INC 156 AURIESVILLE RD. Օ FULTONVILLE, NY 12072 USA Օ 800-833-0081 FAX 518-922-8997ANDERSON INSTRUMENT CO. LP Օ 400 BRITANNIA RD. EAST, UNIT 1 MISSISSAUGA, ONTARIO L4Z 1X9 Օ CANADA 905-568-1440 Օ FAX 905-568-1652NEGELE MESSTECHNIK GmbH (A Division of Anderson) RAIFFEISENWEG 7 Օ D-87743 EGG A. D. GNZ ܕ GERMANY +49 (0) 8333/9204-0 Օ FAX +49 (0) 8333/9204-49MAIDA INTERNATIONAL (LATIN AMERICA & ASIA) 516-676-3079 FAX 516-676-3199 www.andinst.com size="-1">

025 Full vacuum to 0 psi (M,B/30 psig)028 Full vacuum to 0 to 15 psi (C,B/30 psig) 029 Full vacuum to 0 to 30 psi (C,B/30 psig) 031 Full vacuum to 0 to 60 psi (C,B/100 psig) 032 Full vacuum to 0 to 100 psi (C,B/100 psig) 059 0-5 psig (G,B/5 psig) 063 0-15 psi (G,B/30 psig; A/15 psia) 066 0-30 psi (G,A,B/30 psi) 068 0-50 psi (G,A,B/100 psi) 069 0-60 psi (G,A,B/100 psi) 071 0-100 psi (G,A,B/100 psi) 073 0-150 psi (G,A,B/200 psi) 074 0-160 psi (G,A,B/200 psi) 075 0-200 psi (G,A,B/200 psi) 077 0-300 psi (G,A,B/300 psi) 081 0-500 psi (G,B/500 psig) 1 316L Stainless Steel (std.)2 Hastelloy > 1...
