AWESOME 1/8 DIN Panel Meters

Product catalog summary

Overview: The AWESOME 1/8 DIN Panel Meter is designed for easy monitoring of key process values with its large, bright, color-changing displays. It supports both analog and digital input models, offering flexibility for various applications such as temperature, pressure, level, flow, rate meters, indicators, counters, and timers.

Key Features:

27% larger display than standard 1/8 DIN meters with 0.71" high LEDs.
20% brighter red display with programmable color change based on events.
Capability to save minimum and maximum values and total alarm time until reset.
Easy front panel programming and scalable display inputs in engineering units.

Specifications:

Analog Input Models: Supports various sensor/process inputs including thermocouples, RTDs, DC/AC volts/amps, and strain gauges with high accuracy and fast sample rates.
Digital Input Models: Features include sinking/sourcing or contact closure inputs, high frequency capability, and remote reset functions.
Outputs: Includes solid state and relay outputs, with options for linear outputs.
Electrical: Operates on a wide range of supply voltages with low power consumption.
Display: Features a red/green 7-segment LED with primary and secondary displays.
Physical and Environmental: Compact dimensions, panel mountable, with a robust NEMA 4X / IEC IP65 front panel rating. Suitable for a wide range of operating and storage temperatures.

Applications: Ideal for industries requiring precise monitoring and control of process values, including temperature, pressure, and flow measurement.

Ordering Information: Detailed specifications and ordering options are available on the company's website.

Catalog excerpts

ANDERSON INSTRUMENT CO., INC 156 AURIESVILLE RD. ? FULTONVILLE, NY 12072 ? USA ? 800-833-0081 ? FAX 518-922-8997ANDERSON INSTRUMENT CO. LP ? 400 BRITANNIA RD. EAST, UNIT 1 ? MISSISSAUGA, ONTARIO L4Z 1X9 ? CANADA ? 905-568-1440 ? FAX 905-568-1652NEGELE INDUSTRIEELEKTRONIK GmbH (A Division of Anderson) ? RAIFFEISENWEG 7 ? D-87743 EGG A. D. G՜NZ ? GERMANY ? +49 (0) 8333/9204-0 ? FAX +49 (0) 8333/9204-49 MAIDA INTERNATIONAL (LATIN AMERICA & ASIA) 516-676-3079 ? FAX 516-676-3199 >

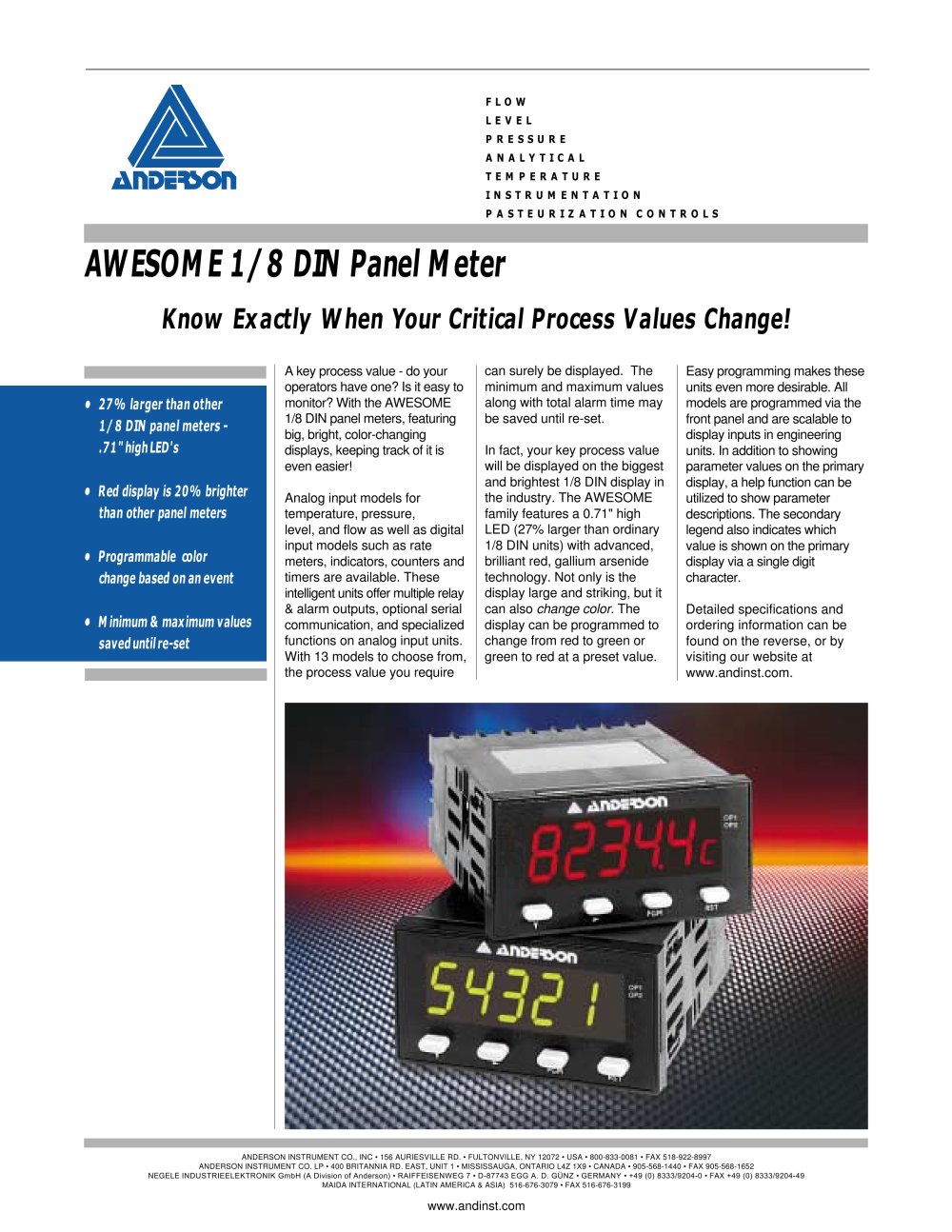

Open the catalog to page 1

ANALOG INPUT MODELS Type:Temp. Ind.: B, J, K, N, S & T thermocouples,3 & 4 wire RTDsDC Process: to 50 mA, Solid State:NPN open collector, 30 VDC max.100 mA max.Relay:SPDT, 5A resistive @110 VAC Latency:75 Sensor/Process Inputs Outputs seconds, plus 8 ms for relay pull-inLinear Outputs:(N/A for Totalizer or Counters) 0-20mA,4-20mA, 0-10V, 2-10V 0-5V, 1-5V (field selectable). ձ 10 VDC, 100mVAC Volts/Amps: from 0-1VAC to 0-600 VAC,0-1mA to 0-1 ampDC Volts/Amps: from 0-100mV to 0-600 VDC,0-1mA to 0-2 ampsStrain Gauge: 0-100 mVDC Electrical Supply Voltage:90-264 VAC, 50-60Hz, or 20-50 VAC/VDC. Power...

Open the catalog to page 2
