AV-9000 Recorder/Recording Controller

Product catalog summary

Introduction

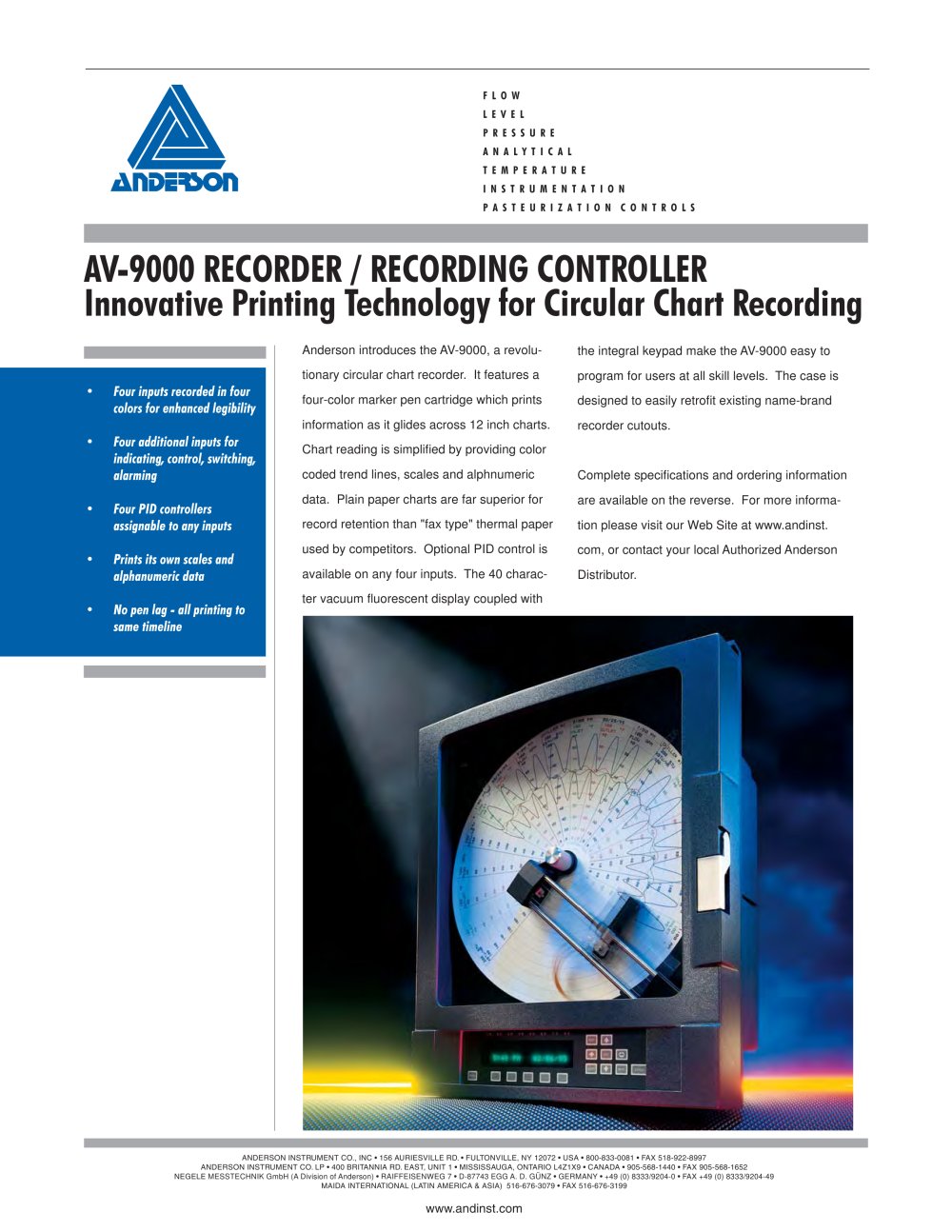

The AV-9000 is a circular chart recorder introduced by Anderson Instrument Co., featuring innovative printing technology. It uses a four-color marker pen cartridge to print on 12-inch charts, enhancing legibility with color-coded trend lines and alphanumeric data. The device is designed for easy retrofitting into existing recorder cutouts.

Specifications

Performance: Recording accuracy is ±0.3% of chart span. It operates within 0 to 50°C and 10 to 90% RH. The device has a 5-year minimum battery backup and a 2-year warranty.
Inputs: Supports eight inputs, including RTD, voltage, current, and contact closure types. The input scan rate is programmable, with a maximum of 16 scans per second.
Outputs: Offers up to eight relay outputs and four 4-20mA analog outputs. Relay outputs are SPDT with specific ratings for resistive loads.
Control: Features proportional, integral, and derivative control modes with auto/manual bumpless transfer.
Power: Operates on 85 to 265 VAC, 50/60 Hz.
Physical: Dimensions are 14.12 x 17.04 x 7.75 inches, with a weight of 25 lbs. It has a NEMA 4X rating and can be mounted on panels, walls, or pipes.
Display and Keypad: Includes a 2-line, 40-character vacuum fluorescent display and a 15-key operator keypad.
Alarms: Four alarms per process variable with adjustable hysteresis.

Ordering Information
The AV-9000 can be customized with various configurations for inputs, outputs, and additional features like math/totalizer functions and transmitter power supplies. A worksheet must be completed at the time of order.

Catalog excerpts

ANDERSON INSTRUMENT CO., INC Օ 156 AURIESVILLE RD. FULTONVILLE, NY 12072 Օ USA 800-833-0081 Օ FAX 518-922-8997ANDERSON INSTRUMENT CO. LP 400 BRITANNIA RD. EAST, UNIT 1 Օ MISSISSAUGA, ONTARIO L4Z1X9 CANADA Օ 905-568-1440 FAX 905-568-1652NEGELE MESSTECHNIK GmbH (A Division of Anderson) Օ RAIFFEISENWEG 7 D-87743 EGG A. D. G՜NZ GERMANY Օ +49 (0) 8333/9204-0 FAX +49 (0) 8333/9204-49 MAIDA INTERNATIONAL (LATIN AMERICA & ASIA) 516-676-3079 Օ FAX 516-676-3199 >

Open the catalog to page 1

OUTPUTS Up to eight on/off relay outputs, and up to four 4 - 20mA analog outputs are available. Relay Outputs: SPDT, contacts rated 5 amps resistive at 115 VAC, 2.5 amps resistive at 230 VAC, 1/8 HP at 230 VAC (single phase), 250 VA at 115/230 VAC. Analog Outputs (for control and/or retransmission): 0 to 20mA into 0-650 ohm load with 12 bits resolution. 15 keys for programming and unit operation. DISPLAY AND KEYPAD ALARMS INPUTS Primary Display: 2 line, 40 character vacuum fl uorescent display with characters .21 inch (5 mm) high. Status Indicators: 8, user confi gurable, red LED status indicators...
